Bed assist with support handle

Accessories for special size and heavy-duty range

Lifting pole with support handle and strap, reinforced version made of square tubing, for bed surface widths from 120 cm

Lifting pole for items 17594-01, 17599-01, 17600-01 and variants

Standing sling with chest loop and seat hammock for the aks Torneo II and Torneo compact models in sizes S–XXL

This standing sling is intended exclusively for use with the new aks-torneo II active lifter and torneo compact. The previously proven standing sling has been extended with the comfortable seat hammock for transfers in a seated position. The calf strap (included) provides the user with increased safety and support.

Technical data
Standard: DIN EN ISO 10535:2007-04
Maximum load: 150 kg

Material composition:
Loop material: polyester webbing;
Outer fabric: 100% polyester;
Back padding: 100% polyether;
Underarm padding: 100% polyether;
Chest loop: 100% PE foam;
Hook-and-loop fastener: 100% nylon;
Length/width seat hammock: 68/25 cm

Standing sling for item 17455-01

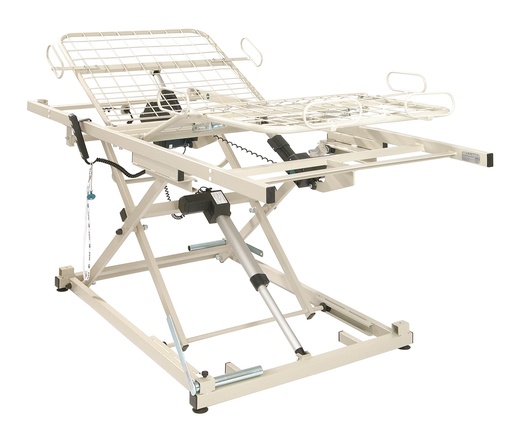

Sleeping surface widening set for the aks-B4 compact nursing care lifting frame, for widening to 100 cm.

Widening set for item 17586-01

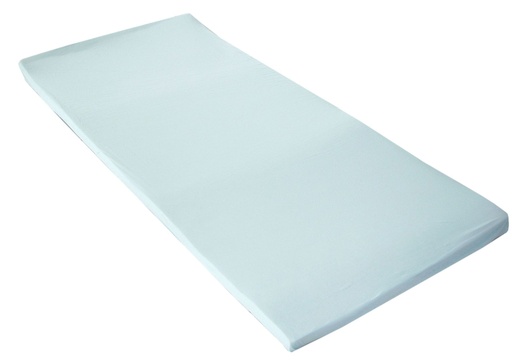

Mattress overlay for saniflow ll, lll, lV and decubiflow 12, 2000, 200 and 2000 S (4 cm)

Suitable for items 17366-01, 17367-01, 17368-01, 17369-01, 17370-01, 17371-01

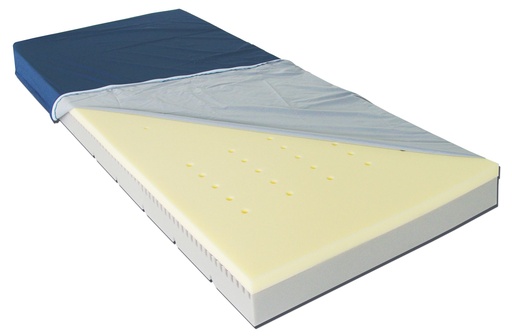

Viscoelastic soft support mattress for pressure ulcer prevention and treatment

Anti-decubitus mattress with an excellent price-performance ratio and the advantages of a viscoelastic top sleeping surface.

The benefits of aks-memoplot
• particularly suitable for cachectic patients and for pain therapy
• large contact surface made of soft, viscoelastic foam
• ergonomic cut-outs on the underside and the climate openings in the top layer support a favourable microclimate
• optimal adaptation of the mattress to four-section lying surfaces thanks to cut-outs on the underside of the mattress
• incl. aks-inkoair® mattress cover (also available separately)

Patient weight 40–120 kg
Pressure ulcer grade up to and including grade III (according to EPUAP)

with hand control and charger
without lifting arm, without standard spreader bar,
without footplate, without straps
Size: mini, leg spread: manual

The dualo® mini combines two types of hoist in one. It can be used as a stand-up hoist and/or, with the appropriate accessories, as a passive patient hoist. In addition, the “mini” meets all the requirements of a “full-size” model. With its more compact dimensions it is more manoeuvrable, making it ideal for use in small rooms and through narrow doorways.

For users with low body weight or limited mobility

As these individuals require a seat surface with low compression firmness, this wheelchair seat cushion uses a combination of suitable foam cubes and a base tray made of firm foam. The tray provides the necessary support when sitting. Two recesses at the front guide the thighs. With aks-inkoair® seat cushion cover.
User weight 40–90 kg Dimensions 42 x 42 x 10 cm Pressure ulcer grade: prophylaxis

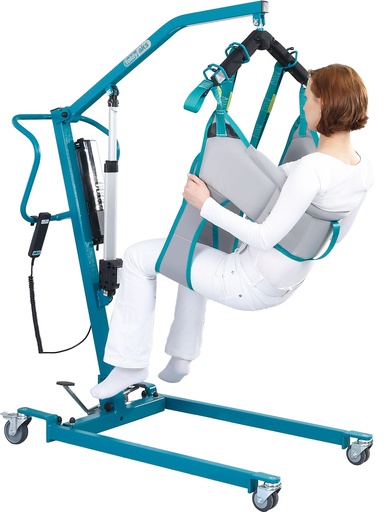

This sling is ideally suited for the quick and straightforward transfer of persons. It features an integrated, padded back reinforcement and a chest loop that gives the patient a sense of security. With this configuration, the sling can also be used as a hygiene sling. The patient must have sufficient postural stability.

Technical data

Standard: DIN EN ISO 10535:2007-04
Maximum load: 150 kg

Material composition:
Loop material: polyester webbing;
Outer fabric: 100% polyester;
Padding: back section: 100% polyether;
Axillary padding: 100% polyester foam;
Leg supports/chest loop: 100% PE foam

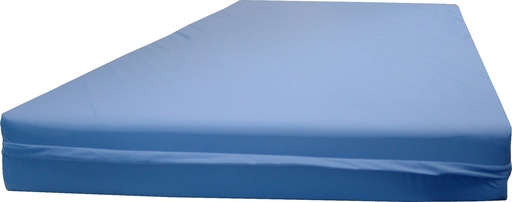

Replacement cover for HD85 series special mattresses made of aks-inkoair

Replacement cover for item 17608-01

Dimensions (H x W x L in cm): 13 x 90 x 200 cm
Weight: 4.9 kg

Replacement mattress for item 17368-01

Dimensions (H x W x L in cm): 13 x 90 x 200 cm
Weight: 4.9 kg

Replacement mattress for item 17366-01

Dimensions (H x W x L in cm): 17 x 90 x 200 cm
Weight: 8.3 kg

Replacement mattress for item 17369-01

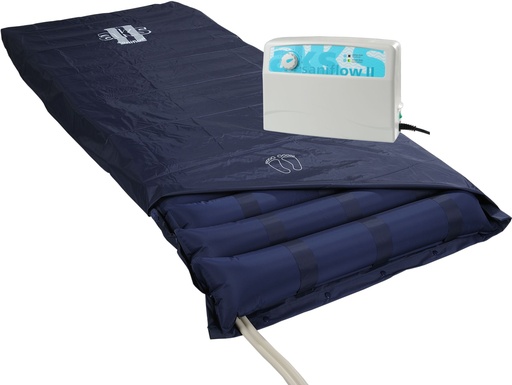

Dimensions: 28 x 20.5 x 10 cm
Weight: 2.3 kg
Power: 12 W

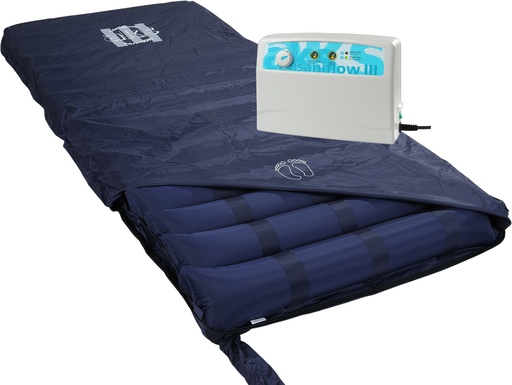

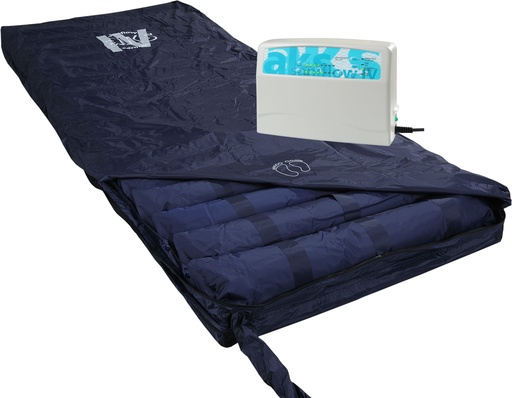

Replacement unit for item 17366-01

Dimensions: 28 x 20.5 x 10 cm
Weight: 2.3 kg
Power: 12 W

Replacement unit for item 17368-01

Dimensions: 28 x 20.5 x 10 cm
Weight: 2.3 kg
Power: 12 W

Replacement unit for item 17367-01

Dimensions (W x H x D in cm): 28 x 20.5 x 10 cm
Weight: 2.6 kg
Power: 12 W

Replacement unit for item 17369-01

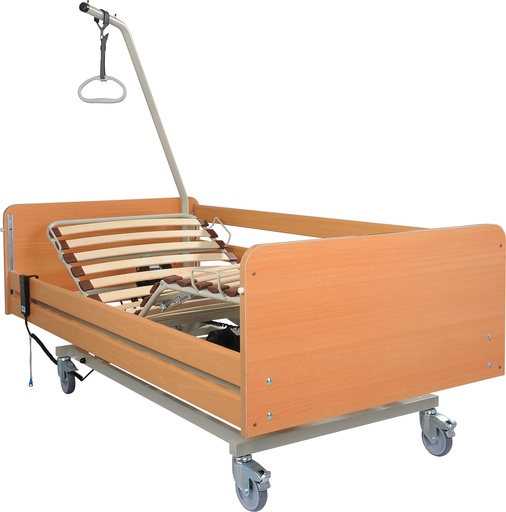

Advantages of the aks-S4 scissor lift bed
• High functionality: individual positioning, four-section lying surface with electrically adjustable height, head and foot sections; foot section with knee break can be electrically adjusted from any position via hand control without nursing assistance – patent-protected!
• Protection against falling out thanks to sturdy, integrated side rails on both sides
• Stable stance of the compact scissor lift with four lockable castors
• Lying surface optionally with wooden sprung slats or metal mesh base
• SMPS 29 V: the switch-mode power supply provides safety with overload protection and voltage stability with variable input voltage
• Ergonomic hand control with large buttons, integrated lock function and the option to test initial fault safety
• Including lifting pole and grab handle

Options and accessories
• Side rail extension, e.g. for use with large-cell mattresses

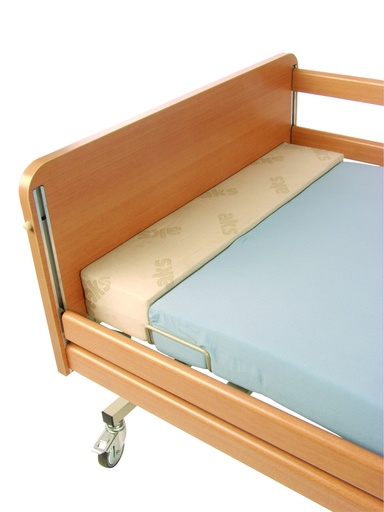

• Bed extension for care of taller patients
• Side rail padding

Product data:

Lying surface (L x W in cm): 90 x 200
Overall dimensions (L x W in cm): 108 x 206
