Laboratory Equipment

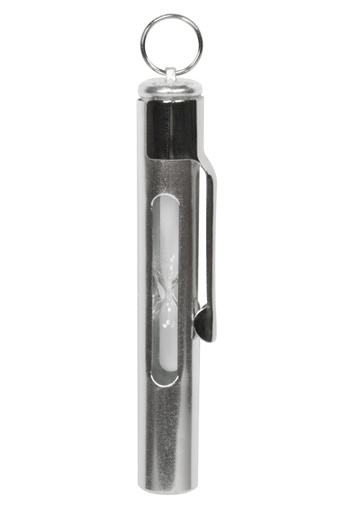

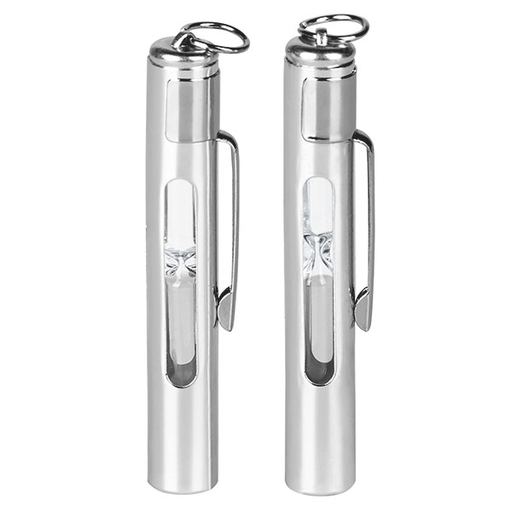

Pulse timer with metal case and clip

Features:
Length: 65 mm
Time: 15 seconds for measuring pulse rate

In a metal housing with ring and clip.

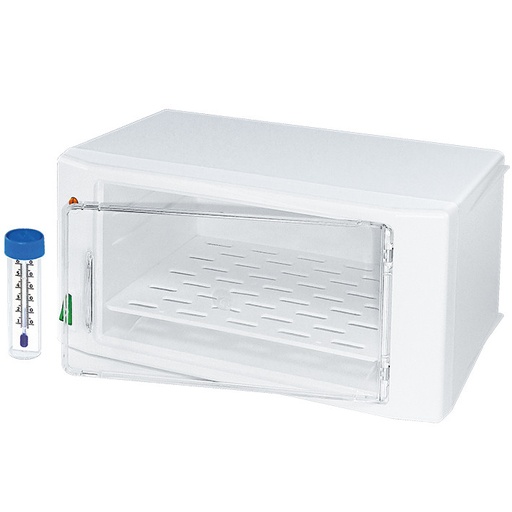

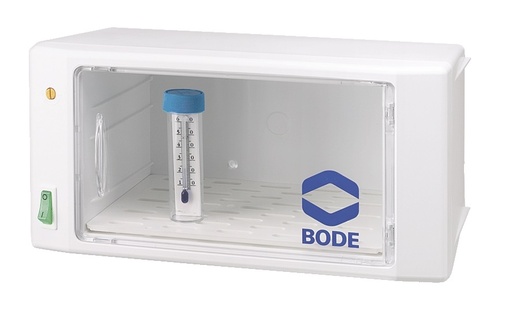

The ideal mini incubator for the small laboratory.
For incubating 18 dip-slide culture media or 12 Petri dishes, or several blood culture bottles. The fixed temperature (35 °C) can be adjusted at any time from 25 to 45 °C. With full-view Plexiglas door, easy to clean, compact stable housing, CE-compliant, maintenance-free. Includes an insert plate.

Product data:

External: W 310 x H 155 x D 168 mm
Internal: W 220 x H 120 x D 150 mm
Weight: 1.1 kg
Power: 26 W / 220 volts
Temperature: 25–45 °C (preset to 35 °C)
Accuracy: ± 1.0 °C

Characteristics
- practical and cost-effective option for rapid incubation of culture media, providing more up-to-date results for biological tests
- high operational reliability thanks to ease of use and stable temperature control

The temperature can be set using the adjustment dial.
Then you read it on the thermometer.

Internal (W/H/D): 220 x 120 x 150 mm

External (W/H/D): 310 x 155 x 168 mm

Weight: 1.1 kg

Power: 26 W / 220 V

Temperature: 25–45 °C (fixed set to 35 °C)

Accuracy: ± 1.0 °C

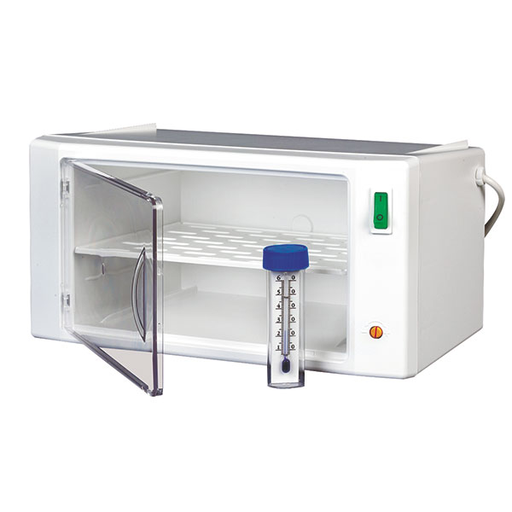

Replacement thermometer for mini laboratory incubator

Thermal printer paper (5 rolls)
for Clinitek 50, 100, 500, Clinitek Status, Clinitek Advantus, DCA and INNOVANCE PFA-200

Matching data transfer software UriConnect Pro can be reordered free of charge (please make sure to specify the practice management software used).

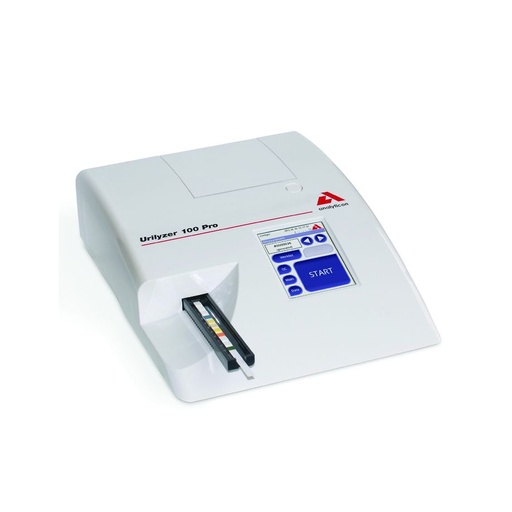

Compact, intuitive reader for semi-automated urine analysis using CombiScreen® 11 SYS PLUS, 7 SYS, 5 SYS PLUS and mALB/CREA test strips. Clean and safe automatic start of measurement via strip detection, convenient colour touchscreen and integrated Easy-Load printer. Optimised user management prevents unauthorised use. Extended connectivity options (HL 7, Ethernet, POCT1-A2) and quality control that supports the user in meeting the requirements of Rili-BÄK Part B2. Connection to the practice management software via UriConnect® Pro for transferring measurement data to the patient record.

Memory capacity: up to 3000 patient tests.

Scope of delivery: Urilyzer® 100 Pro reader, quick guide with QR code linking to the manual, thermal printer paper roll 57 mm x 25 m, 2 strip holders, control strip, mains power cable, adapter 100–240 V, 50/60 Hz.

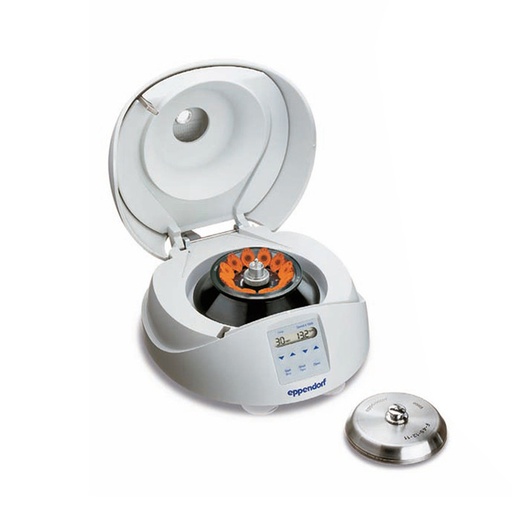

The powerful and user-friendly MiniSpin microcentrifuge is so compact that every workstation can be equipped with a personal centrifuge.

Product data:

- MiniSpin centrifuge with F-45-12-11 rotor
- Microcentrifuge
- Speed control from 800 rpm to 13,400 rpm
- RCF 12,100 x g, 230 V/50–60 Hz
- incl. standard rotor F-45-12-11 (aluminium)
- 12 holes
- Angle 45°
- For 1.5/2.0 ml reaction tubes with max. Ø 11 mm
- Complete with lid (stainless steel) and rotor nut
- Dimensions (W x D x H): 22.6 x 23.9 x 13 cm
- Height 25 cm (with lid open)
- Weight 4.3 kg

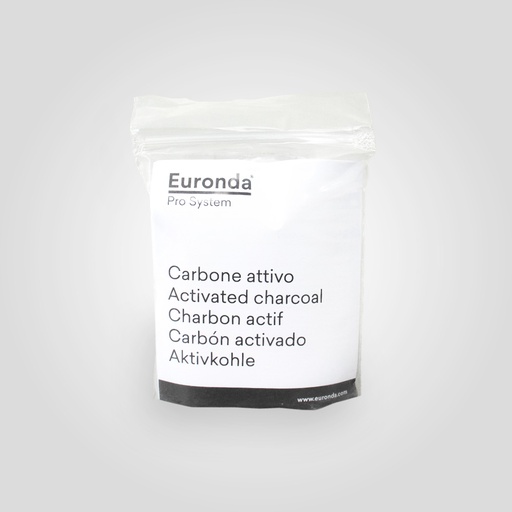

Aquadist Water Treatment

12 sachets of activated carbon filters for the Aquadist water distiller.

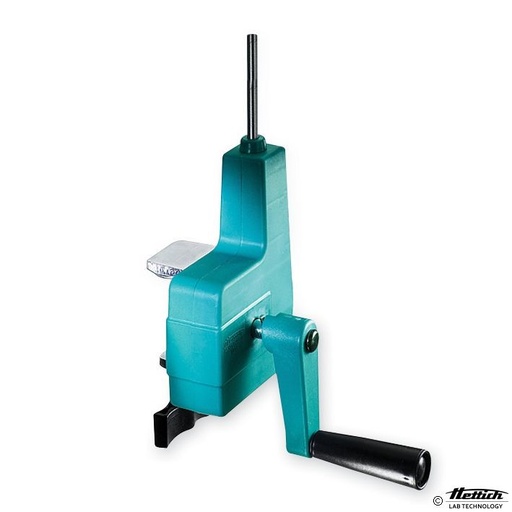

Manual centrifuge without rotor
The flexible, handy centrifuge can be easily attached to any tabletop using a clamping device and operated without electricity. Thanks to its self-lubricating gear, it is virtually maintenance-free. - compatible rotors: 1014 and 1025 - Dimensions (H x W x D): 285 x 140 x 175 mm - Weight: approx. 0.9 kg

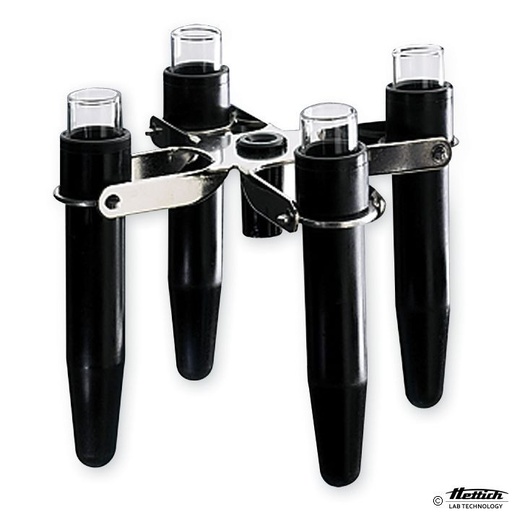

Swing-out rotor for 4 x 15 ml for HET 1011
complete with sleeves for hand centrifuge 1011

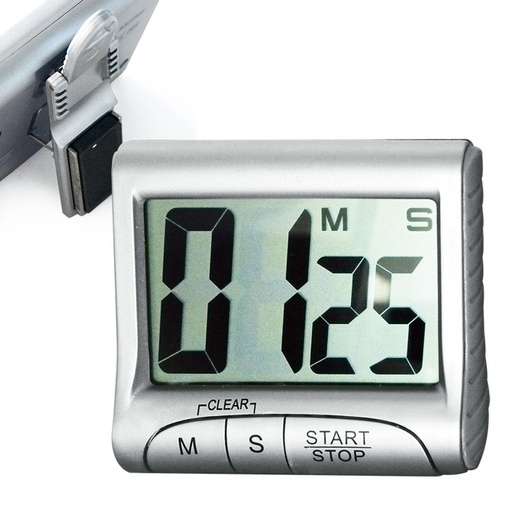

Digital timer with large display, silver
- with audible signal - digital egg timer, kitchen clock, timer, clock, alarm clock, kitchen timer - with 4-digit LCD display - magnetic, with clip or free-standing - up to 99 minutes running time - dimensions: approx. 8 x 7 x 2.5 cm (L x W x D) - material: plastic - power supply: 1x AAA battery (included)

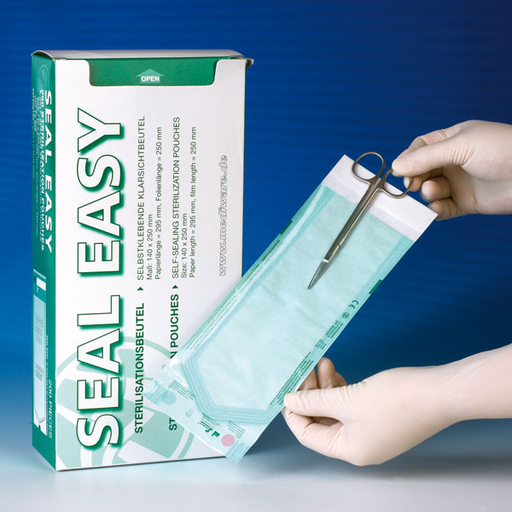

For low sterilisation volumes, the use of self-adhesive transparent pouches with a paper backing is recommended.
With an optimal adhesive sealing closure and indicator for steam and gas sterilisers. Complies with DIN/EN 868.
Heavy-duty quality, 70 g/m². For steam sterilisation up to 134 °C. No more heat sealing required!

Easy to use:
1. Insert the instrument and peel off the protective strip from the adhesive area.
2. Fold the adhesive area along the crease and press down firmly to ensure a secure seal.
3. Then sterilise in the autoclave.

Please choose a pouch size that accommodates the items to be sterilised well without overstretching. Using a pouch that is too small carries a risk of bursting and contamination. When sealing, the pouch should be placed on a smooth, horizontal surface.

Compact benchtop centrifuge for medical practices and laboratories with angle rotor for up to 6 x 15 ml.

The SERVOspin Evolve with angle rotor is versatile in use; the 54° fixed-angle rotor allows high speeds/centrifugal fields and enables shorter centrifugation times under the same conditions. The brushless motor is mounted on vibration-damping supports and features an imbalance control sensor. This ensures very smooth and quiet operation. For user safety, the lid lock is electronically monitored. Speed can be set from 300 to a maximum of 5,000 rpm and the run time from 30 seconds to 99 minutes. Two customisable programme buttons save time and make operation easier. During centrifugation, the speed and remaining run time are shown on the display. With a simple key combination, the display can also show the RCF value (relative centrifugal force).

The advantages at a glance:

-Versatile use in medicine and laboratory analytics
-6 x 15 ml angle rotor with the option to use various tube adapters
-Ergonomic control panel and display with hygienic membrane keypad
-Digital preselection of run time and speed
-Memory for 2 programmes
-Emergency opening in the event of a power failure
-Quiet, brushless motor
-Easy to clean and disinfect

Technical data:

-Speed/increment: 300-5000 rpm / 10 rpm
-Max. RCF: 2,600 g
-Time: 30 seconds - 99 minutes and continuous operation
-Dimensions: 30 x 24 x 18 cm (L x W x H)
-Weight: 5.2 kg
-Max. capacity: 6 x 15 ml
-Rotor: 54° fixed angle
-Safety: lid lock, imbalance control, internal diagnostics
-Voltage / frequency: 100 - 240 V / 50/60 Hz
-Power: 70 W
-Operating noise at full load: 56 dB

Scope of delivery:

-Incl. rotor and adapter set for different tube types

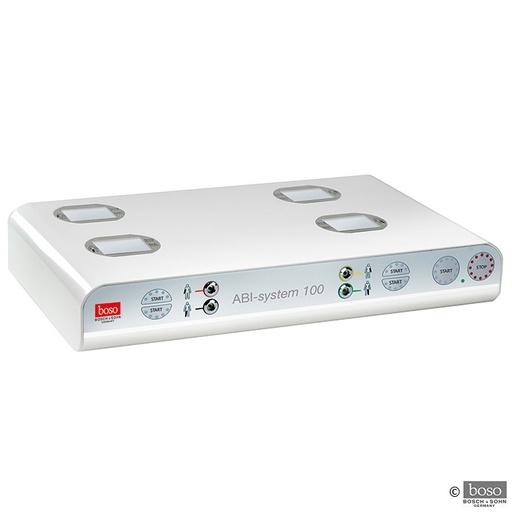

boso ABI-system 100
Fast and precise determination of the ankle–brachial index. The ABI enables early detection of PAD (peripheral arterial occlusive disease) with high sensitivity. The boso ABI-system 100 determines this key value without Doppler.
- simultaneous measurement of systolic blood pressure on all 4 limbs
- intelligent inflation system and controlled deflation speed
- no distortion due to blood pressure fluctuations

Scope of delivery: device, 2 nylon arm cuffs (arm circumference 22–42 cm) incl. tube, 2 nylon leg cuffs (leg circumference 18–38 cm) incl. tube, mains power supply, USB connection cable, application software with database for patient management

Adapter for 5 round-bottom tubes 2–7 mL, 12.5 mm × 100 mm, for 100 mL round bucket in rotor A-4-38, 2 pieces

This is a very compact, small spectrophotometer with the option of carrying out measurements in the UV and VIS range. In a spectral range from 200 nm to 830 nm, single-wavelength measurements can be performed or absorbance spectra can be recorded.

Product data:

- BioSpectrometer basic
Compact spectrophotometer for applications in cell and molecular biology as well as biochemistry

- Eppendorf uCuvette G1.0
Microvolume cuvette for photometric quantification of nucleic acids and proteins (A 280 nm) as well as for colorimetric protein assays; can be used with the Eppendorf BioPhotometer plus and the BioSpectrometer

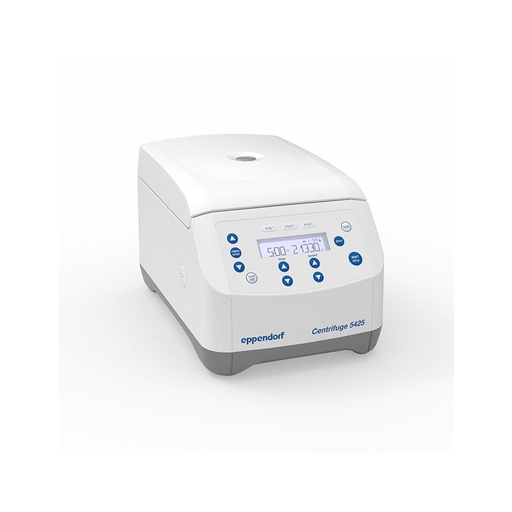

The Centrifuge 5425 is the new laboratory standard. With a capacity for 24 vessels and a speed of up to 21,300 x g, it is perfectly suited for all modern molecular biology applications using Eppendorf and PCR tubes. The Centrifuge 5425 is used to separate liquid mixtures of substances with different densities, in particular for the processing and analysis of samples from the human body as part of an in vitro diagnostic application, to enable use of the in vitro diagnostic device in accordance with its intended purpose. This centrifuge, including its components, is an in vitro diagnostic device within the meaning of Directive 98/79/EC of the European Parliament and of the Council of 27 October 1998. Eppendorf centrifuges are intended exclusively for indoor use and for operation by trained specialist personnel.

- whisper-quiet microcentrifuge for stress-free work
- aerosol-tight Eppendorf QuickLock® lids for easy and safe handling
- outstanding software features (e.g. 10 acceleration and braking ramps, 3 programme buttons, short function without having to keep the button pressed)
- extended rotor programme (e.g. 5.0 mL rotor, swing-bucket rotor for PCR strips)
- OptiBowl® design for quiet operation, even without the rotor lid
- ergonomic lid operation with just one finger
- automatic lid opening at the end of the run – prevents sample warming and enables easy access to the samples

Product data:
- maximum rotor capacity: 10 x 5.0 mL tubes
- Max. RCF: 21,300 x g
- Max. speed: 15,060 rpm
- Mains connection: 230 V, 50–60 Hz
- Dimensions (W x D x H): 24 x 39 x 24 cm
- Height (with lid open): 48 cm
- Weight without accessories: 15.6 kg
