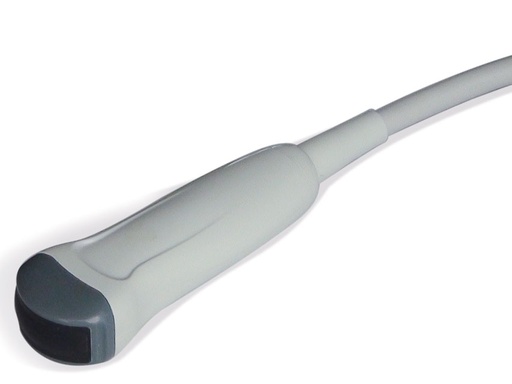

Probe for portable Chison ultrasound systems:



- Chison code: MC6-A

- Scanning method: micro-convex
- Main frequency: 6.0 MHz

- Frequency range (MHz): 4.5 - 8.0

- Applications: abdominal, paediatric

Accessories for Hospi Plus MPR - Ring for 2/3 L Flovac containers - Accessories

This is an accessory for the Hospi Plus MPR

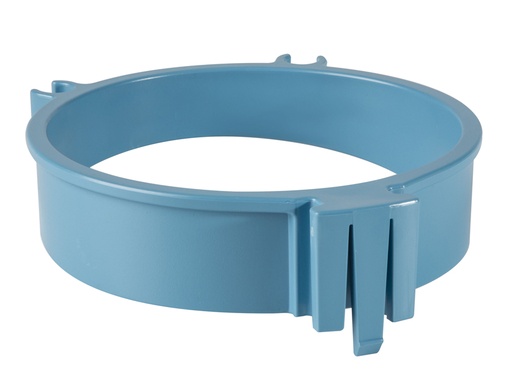

Accessories for Hospi Plus MPR - Ring for 2L autoclavable containers - Optional

This is an accessory for the Hospi Plus MPR.

ANTIBACTERIAL FILTER - 50 pcs (single-use)

CHISON ECO 1 VET ULTRASOUND with 1 probe connector (One probe included in the scope of delivery. Please make a selection)
- ultra-compact and ultra-lightweight, easy to transport
- latest LED screen technology; super-bright images enable easy viewing of scans even outdoors
- ergonomic monitor design, 30-degree rotation, adjustable
- ultra-long battery life of up to 2 hours for outdoor scanning
- one-button image enlargement to full-screen mode, easy viewing from a distance
- optimised workflow, easy operation, 6 keys to complete the diagnostic cycle

• Display modes and imaging
B, B / B, 4B, M, B / M, multi-frequency imaging

• Image processing
- compound imaging
- trapezoid imaging
- intelligent I-Image optimisation
- automatic PW tracking
- SRA (Speckle Reduction Algorithm)
- Chroma
- fully digital beamformer
- AIO (Automatic Image Optimisation)
- full-screen display

• User interface
- fold-up control panel and alphanumeric keyboard
- backlit keyboard for good visibility in dark rooms
- interactive backlighting
- indicator lights identify activated keys
- 8 TGC sliders for easy adjustment
- shortcut button for quick adjustment (custom hotkey)
- neat and clear keyboard layout, easy for the clinician to remember
- custom preset

• Optimised workflow, one key for:
- selecting the desired application with automatic preset
- automatically optimising the image (AIO)
- creating a report
- saving still images and CINE loop
- measuring
- printing to a PC printer (laser or inkjet) or video printer

• EASYVIEW™ archiving system
- image archive on hard drive and mobile USB storage
- 3 USB ports
- multiple image formats: BMP, JPG, DCM, CIN, AVI
- cine review: auto, manual (segment for auto review can be set) for 2D, M images
- cine storage capacity (256 frames / 10 s)

Technical data:

Dimensions and weight: 33.5 x 15.5 x h 35 cm (13.2" x 6.1" x h 13.8"); 6 kg
Display: 12" LED, high resolution 1,024 x 768
Power: AC 100–240 V – 50/60 Hz

Accessories:

1 probe depending on selection
12" high-resolution LED monitor – B & W
8G memory card
Hot key
PC printer connection
3 USB connections
1 Ethernet port
1 video output, 1 VGA output
1 footswitch connection
Full-screen display
Power supply unit
Standard software package
EasyView image archiving system
THI

SINGLE-USE TURBINE WITH INTEGRATED MOUTHPIECE

MIR code: 910004

For single-patient use only, economical and reliable, guarantees absolute hygiene as it is individually packaged.

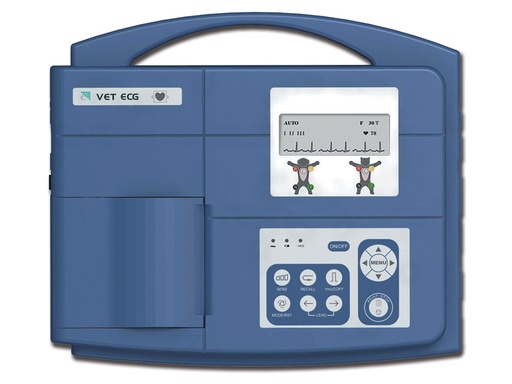

- Complete digital design
- LCD display waveforms, parameter configuration
- High-resolution thermal printer
- Built-in rechargeable Li-ion battery for 3 hours (AC/DC power supply)
- Fully digital filter to prevent baseline drift; interference suppression for AC and EMG
- Automatic baseline adjustment, optimised print position
- Selectable automatic/manual operation

Technical data:

• Leads: standard 7-lead
• Acquisition mode: single
• Frequency response: 0.05 Hz ~ 150 Hz
• Sensitivity: 2.5, 5, 10, 20 (mm/mV)
• Input impedance: > 10 MΩ
• Filters:
- EMG filter 35 Hz (-3 dB)
- AC/DFT filter 50/60 Hz (-20 dB)
• Recording mode: Auto/Manual
• Safety standard: IEC I/CF
• Power supply:
- AC mains: 100-115-220-240 V, 50/60 Hz
- Built-in rechargeable Li-ion battery: voltage = 14.4 V
- More than 3 hours continuous operation on battery power
• Thermal paper: 5 mm x 30 m
• Paper speed: 25/50 mm/s (± 3%)
• Dimensions: 300 x 260 x 75 mm
• Weight: 2.3 kg (with battery)
• Display: 192 x 64 pixel LCD
• External input/output:
- Input: = 100 kΩ; sensitivity: 10 mm/V ± 5%
- Output: = 100 kΩ; sensitivity: 1 mm/V ± 5%
• Communication interface: RS232

Accessories:

• 5-core veterinary ECG cable (Ø 4 mm, banana plug, IEC)
• Veterinary clip electrodes (set of 5, suitable for Ø 3–4 mm ECG cable)
• 1 paper roll
• Rechargeable lithium battery (2,200 mAh)
• Manual: EN, IT – FR, ES, DE on request

HOSPI PLUS suction unit - 2 x 3 l - 230 V - with foot switch and flow changeover

New innovative range of high-vacuum suction devices with high flow rate, ideal for hospitals.
The pump pistons are lubrication-free and maintenance-free. Supplied with a hydrophobic 99% bacteria filter, vacuum gauge for monitoring the vacuum, and 2 autoclavable Makrolon canisters with ml graduations and double safety valve.

MPR (Multi Purpose Rail) models:
This system increases versatility for easy and quick replacement of various accessories, without the need for tools.
Equipped with five connections for rings of different diameters to accommodate canisters of different sizes and types (2 l, 3 l, 5 l), cannula holders and a safety trap bottle.

The range includes versions with foot switch, flow regulator and connection via 110/230 V.

Four antistatic castors, two of which are braked, ensure perfect mobility.

Product data:

• Operating voltage: 220–230 V / 50–60 Hz or 110 V / 60 Hz
• Maximum suction: 0.90 bar (675 mmHg)
• Flow: 90 l/min
• Power: 385 VA
• Standards: EN 60601-1-1, EN 60601-1-2, EN 60601-1-1, EN 60601-1-2
• Made in Italy
• Instructions for use in GB, FR, IT, ES, DE.

HOSPI PLUS suction unit - 2 x 5 l - 230 V - with foot switch and flow changeover

New innovative series of high-vacuum suction devices with high flow, ideal for hospitals.
The pump pistons are lubrication-free and maintenance-free. Supplied with a hydrophobic 99% bacterial filter, vacuum gauge for monitoring the vacuum, and 2 autoclavable Makrolon containers with ml graduation and double safety valve.

MPR (Multi Purpose Rail) models:
This system increases versatility for easy and quick replacement of various accessories without the need for tools.
Equipped with five connections for rings of different diameters to hold jars of different sizes and types (2 l, 3 l, 5 l), cannula holders and a safety trap bottle.

The range includes versions with foot switch, flow regulator and connection via 110/230 V.

Four antistatic castors, two of them with brakes, enable perfect mobility.

Product data:

• Operating voltage: 220-230 V / 50-60 Hz or 110 V / 60 Hz
• Maximum suction performance: 0.90 bar (675 mmHg)
• Flow: 90 l/min
• Power: 385 VA
• Standards: EN 60601-1-1, EN 60601-1-2, EN 60601-1-1, EN 60601-1-2
• Made in Italy
• User manual in GB, FR, IT, ES, DE.

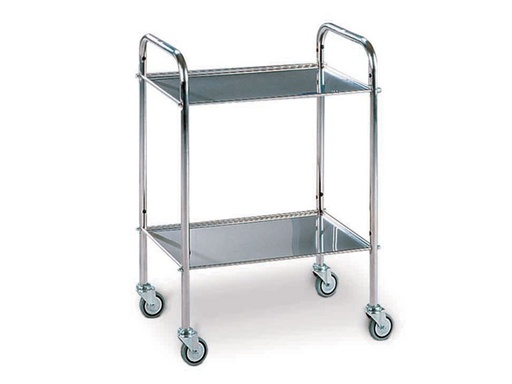

Stainless steel trolley on castors, Ø 80 mm fitted.
Maximum trolley load: 60 kg.
Supplied as a flat-pack kit.
Made in Italy.

Product data:

Dimensions (H x W x D): 80 x 60 x 40 cm
Colour: silver
Material: stainless steel

Instant viewing
A clear, sharp image can be captured and displayed immediately on a built-in screen. Simply press a single button and wait 3 seconds.

Real-time interaction
The medical image can be captured and displayed simultaneously on the TV monitor or downloaded to a Mac/PC system.

Electronic medical record
A medical image is automatically generated to support most stand-alone health information systems.

3 cameras:
- 3 camera probes 75/150/300 mm
- Image dongle
- Cable set
- 2 AA alkaline batteries

Technical specifications:

• 2.4-inch LCD colour display
• Video output
• Size/weight: 8 x 20 cm (2.5 x 8 inches) - 218 g
• Battery life: 4 hours

Micro USB cable for PC connection

MIR code: 532367

Mobile stand for item 27010-01

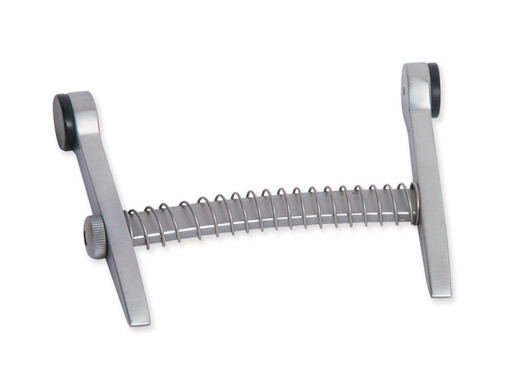

Stainless steel instruments for veterinary applications: mouth gag

Disposable paper mouthpieces, suitable for spirometers and peak flow meters from most brands. Individually packed in a transparent bag.

• Material: paper
• Dimensions (internal diameter x external diameter x height): 2.8 x 3 x 6.5 cm (adults)
• For use with codes: 33431, 33433, 33471-2, 33510, 33512-14, 33518-22, 33528-32, 33534
• Compatible with: Micromedical, Vitalograph, Mir, Ferraris (Koko Legend), Cardiette (Pneumos 300)

PC 3000 Multiparameter Patient Monitor:



- 7'' high-resolution TFT colour display, 5-channel waveform display

- Standard parameters: ECG, RESP, SpO2, NIBP, 2-TEMP, PR; arrhythmia and ST segment analysis

- Up to 12,000 sets of parameter data & 60-hour ECG waveform storage and recall

- 1,000-hour graphic and tabular trends for all parameters

- Display of simultaneous 7-channel ECG waveforms

- Protection against interference from defibrillators, HF surgical units

- Measurement modes for adults/children

- Visual and audible alarms; network capability

- Carry handle with bed hook
