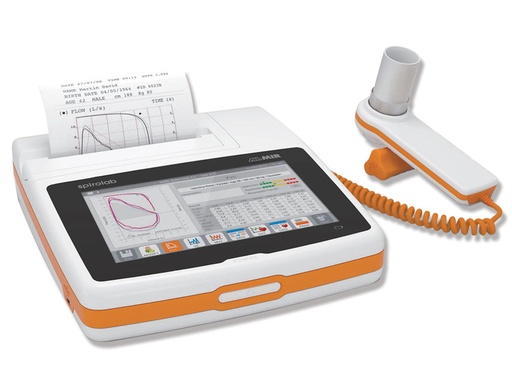

Fast, easy-to-use and durable diagnostic spirometer, made in Italy.

Unbeatable features
- Comparison of FVC, VC, MVV and PRE/POST bronchodilator results with a wide range of selectable parameters
- Long-life battery
- 7” colour touchscreen display
- Direct connection to an external USB PostScript printer
- 10,000 spirometry tests
- Wireless real-time testing on a PC via Bluetooth®
- Fast and quiet built-in printer with customisable print format
- Selectable internal software languages: GB, FR, IT, ES, DE, PT

The Flow MIR® disposable flowmeter complies with the ATS/ERS standard

Guaranteed 100% hygiene, no cross-contamination.
No calibration required.
Also suitable for children without an adapter.

Suitable for children.
Patented child incentive directly on the screen.

Winspiro PRO® high-performance PC software for spirometry and oximetry.
Multilingual software: GB, FR, IT, ES, DE, PT, PL, NL, LV, SE, CZ, RU, TR, JP, CN.

Scope of delivery:
- Spirolab 7"
- Carrying bag
- Winspiro PRO® software
- Battery charger
- USB port and cable
- 1 roll of thermal paper
- Reusable turbine
- Nose clip
- CD manual: GB, FR, IT, ES, DE, PT


Product data:

SPIROMETRY SPECIFICATIONS:
- Power supply: battery
- Autonomy: approx. 10 hours
- Temperature sensor: semiconductor (0–45 °C)
- Flow sensor: bidirectional digital turbine
- Flow range: ±16 l/s
- Volume accuracy: ±3% or 50 ml
- Flow accuracy: ±5% or 200 ml/s
- Dynamic resistance: <0.5 cm H2O/L/s
- Connectivity: USB 2.0, Bluetooth® 2.1
- Display: 7-inch touchscreen LCD with a resolution of 800 x 480 pixels
- Mouthpieces: Ø 30 mm
- Dimensions: 220 x 210 x 51 mm (8.66 x 8.26 x 2 inches)
- Weight: 1450 g (incl. battery)
- Electrical protection: Class II
- Standards: Electrical safety standard EN 60601-1
- Electromagnetic compatibility EN 60601-1-2
- Spirometry parameters: FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85, lung age, extrapolated volume, FET, time to PEF, FEV0.5, EV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, FEV1/PEF, FEV1/FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, RF, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated).


WINSPIRO PRO® SOFTWARE REQUIREMENTS:
Windows 2000, XP, Vista (32/64-bit), 7 (32/64-bit), 8 and 8.1 (32/64-bit), 10 (32/64-bit). RAM 512 MB

Fast, easy-to-use and durable diagnostic spirometer, made in Italy.

Unbeatable features
- Comparison of FVC, VC, MVV and PRE/POST bronchodilator tests with a wide range of selectable parameters
- Long-life rechargeable battery
- 7" colour touchscreen display
- Direct connection to an external USB PostScript printer
- 10,000 spirometry tests or 500 hours of oximetry recording
- Wireless real-time test on PC via Bluetooth®
- Fast and quiet built-in printer with customisable print format
- Selectable internal software languages: GB, FR, IT, ES, DE, PT

Oximetry option: available reusable finger probe for adults and children.

Fast and user-friendly: every function can be activated at the touch of a button.

The Flow MIR® disposable flow sensor complies with the ATS/ERS standard

Guaranteed 100% hygiene, no cross-contamination.
No calibration required.
Also suitable for children without an adapter.

Suitable for children.
Patented paediatric incentive directly on the screen.

Winspiro PRO® high-performance PC software for spirometry and oximetry.
Multilingual software: GB, FR, IT, ES, DE, PT, PL, NL, LV, SE, CZ, RU, TR, JP, CN.

Scope of delivery:
- Spirolab 7"
- Carry bag
- Winspiro PRO® software
- Battery charger
- USB port and cable
- Adult SpO2 sensor
- 1 roll of thermal paper
- Reusable turbine
- Nose clip
- CD manual: GB, FR, IT, ES, DE, PT


Product data:

SPIROMETRY SPECIFICATIONS:
- Power supply: rechargeable battery
- Autonomy: approx. 10 hours
- Temperature sensor: semiconductor (0–45°C)
- Flow sensor: bidirectional digital turbine
- Flow range: ±16 l/s
- Volume accuracy: ±3% or 50 ml
- Flow accuracy: ±5% or 200 ml/s
- Dynamic resistance: <0.5 cm H2O/l/s
- Connectivity: USB 2.0, Bluetooth® 2.1
- Display: 7-inch LCD touchscreen with a resolution of 800 x 480 pixels
- Mouthpieces: Ø 30 mm
- Dimensions: 220 x 210 x 51 mm (8.66 x 8.26 x 2 inches)
- Weight: 1450 g (incl. rechargeable battery)
- Electrical protection: Class II
- Standards: Electrical safety standard EN 60601-1
- Electromagnetic compatibility EN 60601-1-2
- Spirometry parameters: FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85, lung age, extrapolated volume, FET, time to PEF, FEV0.5, EV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, FEV1/PEF, FEV1/FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, RF, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated).

OXIMETRY SPECIFICATIONS:
- SpO2 range: 0–99%
- SpO2 accuracy: ±2% between 70–99% SpO2
- Pulse rate range: 18–300 bpm
- Pulse rate accuracy: ±2 bpm or 2%, whichever is greater
- Memory capacity: up to 500 hours of oximetry
- Oximetry parameters: %SpO2 and pulse rate (min, max, mean), test duration, total SpO2 events, T90% (SpO2 time = 89%), T89% (SpO2 time = 88%), T40 (bradycardia duration with pulse rate <40 bpm), T120 (tachycardia duration with pulse rate >120 bpm).

WINSPIRO PRO® SOFTWARE REQUIREMENTS:
Windows 2000, XP, Vista (32/64 bit), 7 (32/64 bit), 8 and 8.1 (32/64 bit), 10 (32/64 bit). RAM 512 MB

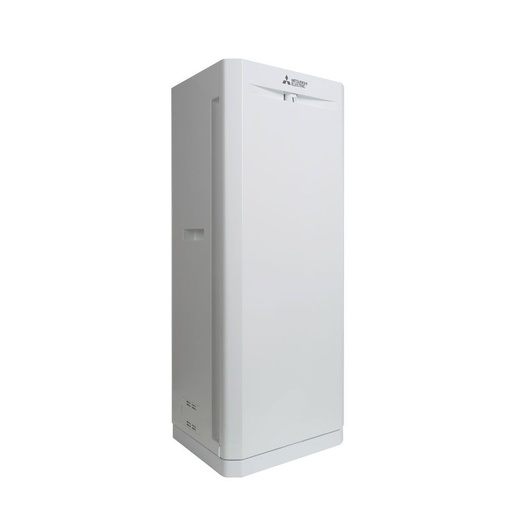

The intelligent functions of the MA-E100R-E provide reliable air purification, particularly for doctors’ surgeries, restaurants or classrooms.

- The i-see Sensor detects the presence of people and directs the airflow specifically to the relevant areas of the room.
i-see Sensor: divides the monitored area into a grid with 752 fields (8 vertical fields x 94 horizontal fields). If the i-see Sensor detects a person, the airflow is adjusted in the corresponding direction. When the start button is pressed, the sensor scans the room at an angle of 150°. It detects people based on temperature and movement.

- High air purification rate (CADR) of 612 m3/h: cleans the air quickly and easily, reaches all areas in the room, thanks to a housing that can be swivelled by 90°

- Pre-filter (washable, no replacement required): filters coarse particles from the ambient air and prevents the main filters from becoming dirty too quickly

- Highly efficient HEPA filter: the HEPA filter captures fine dust up to PM2.5 and viruses, filters 99% of all particles down to a size of 0.1 µm from the ambient air, removes up to 99% of all airborne viruses

- From the ambient air within 11 minutes (in Turbo mode), not washable/to be replaced regularly, service life depending on use 1.6–8 years, reduction of airborne viruses
Activated carbon filter: activated carbon with catalyst function inhibits the chemical reactivity of pollutants such as formaldehyde and contributes to their breakdown.

- Thanks to its porous structure, activated carbon offers a large surface area. It can absorb odours and pollutants and retains its adsorption capacity even when washed out. Activated carbon: consists of certain woods carbonised using special processes. Can remove odours and pollutants from the air. Catalyst: chemical reaction via catalytic substances. Can break down pollutants.

- PM2.5 sensor: PM2.5 detection via high-performance dust sensor, airflow control by detecting the number of particles from a size of 0.5 µm

Technical data:

- Power consumption standby (W): 1
- Power consumption (W) S/L/M/H/T: – / 7 / 19 / 82 / –

- Air volume flow (m3/h): – / 84 / 300 / 600 / –
- Sound pressure level dB(A) S/L/M/H/T: – / 22 / 40 / 55 / –

- Power supply (V, phase, Hz): 220–240, 1, 50

- Dimensions (W x D x H): 320 x 270 x 800 mm
- Weight: 13.4 kg

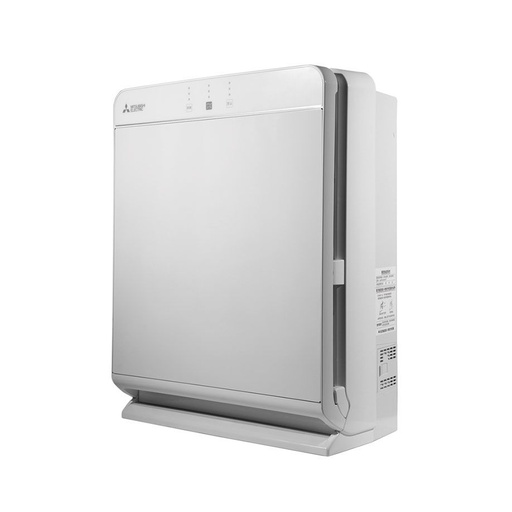

The air purifier is ideal for use in private households. Thanks to the Smart Search function, it directs the airflow specifically to the areas of the room with the highest level of contamination. The integrated self-cleaning function ensures long operating times without maintenance downtime.

- Smart Search function: detects the contaminated area; thanks to the movable louvres, the airflow is directed in five directions, allowing any soiled area to be cleaned effectively

- high clean air delivery rate (CADR) of 508 m³/h
- stainless steel front panel: user-friendly control panel design; for convenient operation, the control panel is located on the top
- pre-filter with self-cleaning function: the self-cleaning function removes coarse dust and prevents the main filters from becoming dirty too quickly
- high-efficiency HEPA filter: the HEPA filter captures fine dust up to PM2.5 and viruses, filters 99% of all particles down to 0.1 µm from the ambient air, removes up to 99% of airborne viruses from the ambient air within 11 minutes (in Turbo mode); not washable/needs regular replacement; service life depending on use 1.6–8 years; reduces airborne viruses

- activated carbon filter: activated carbon with catalyst function inhibits the chemical reactivity of pollutants such as formaldehyde and contributes to their breakdown. Due to its porous structure, activated carbon offers a large surface area. It can absorb odours and pollutants and retains its adsorption capacity even when washed out. Activated carbon: made from specific woods carbonised in special processes. Can remove odours and pollutants from the air. Catalyst: chemical reaction via catalytic substances. Can break down pollutants.

- platinum catalyst: strong degradation capability, deodorisation; the platinum catalyst can absorb formaldehyde, ozone, cigarette odour and more; washable; no replacement required

- PM2.5 sensor: PM2.5 detection via high-performance dust sensor; airflow control by detecting the number of particles from a size of 0.5 µm

Technical data:
- Standby power consumption (W): 1
- Power consumption (W) S/L/M/H/T: 6 / 8 / 11 / 23 / 86

- Air volume flow (m³/h): 102 / 150 / 204 / 306 / 510
- Sound pressure level dB(A) S/L/M/H/T: 22 / 27 / 33 / 43 / 55

- Power supply (V, phase, Hz): 220–240, 1, 50
- Dimensions (W x D x H): 425 x 244 x 547 mm
- Weight: 9.9 kg

Replacement filter set for MA-E100R-E air purifier

Replacement filter set for air purifier MA-E85R-E

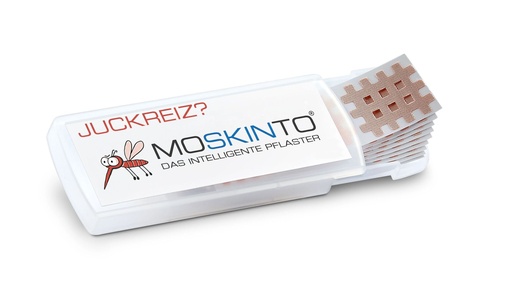

- Free from medicines & active ingredients
- Plasters made of polyester and polyurethane
- Skin-friendly acrylate adhesive
- Practical box for taking with you
- Contents: 24 plasters, each 27 mm x 20 mm

Moskinto - the solution for insect bites!

Apply the MOSKINTO plaster directly to the insect bite without scratching beforehand. The plaster can remain on the skin until it comes off by itself after approx. 4–7 days.

Do not apply to open wounds!

The plasters are made of polyester and polyurethane; they have a grid structure and are coated with a skin-friendly acrylate adhesive. The product contains no ingredients and is free from medicines & active ingredients. In the case of bee stings, the sting should be removed from the skin beforehand. (Do not use in the event of allergic reactions!).

If in doubt, please consult your doctor or pharmacist.
Please note that for many traditional and alternative healing methods, no scientific proof of efficacy according to Western testing standards is yet available. We are obliged to provide the above information because, under the applicable German Medicines Advertising Act, no healing claims may be made for food supplements or other natural remedies, even if they would heal.

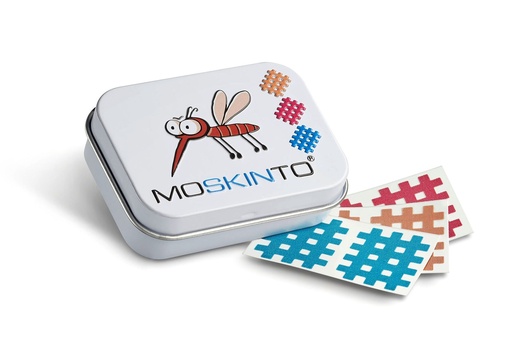

- Free from medicines & active substances
- Plasters made from polyester and polyurethane
- Skin-friendly acrylate adhesive
- Practical case for taking with you
- Contents: 42 plasters, each 27 mm x 20 mm
(18 beige, 12 pink, 12 blue)

Moskinto – the solution for insect bites!

Apply the MOSKINTO plaster directly to the insect bite without scratching first. The plaster can remain on the skin until it comes off by itself after approx. 4–7 days.

Do not apply to open wounds!

The plasters are made of polyester and polyurethane, have a grid structure and are coated with a skin-friendly acrylate adhesive. The product contains no ingredients and is free from medicines & active substances. In the case of bee stings, the sting should be removed from the skin beforehand (do not use in the event of allergic reactions!).

If in doubt, please consult your doctor or pharmacist.
Please note that for many traditional and alternative healing methods, no scientific evidence of effectiveness according to Western testing standards is yet available. We are obliged to provide the above information because, under the current German Medicines Advertising Act, no healing claims may be made for food supplements or other natural remedies, even if they would heal.

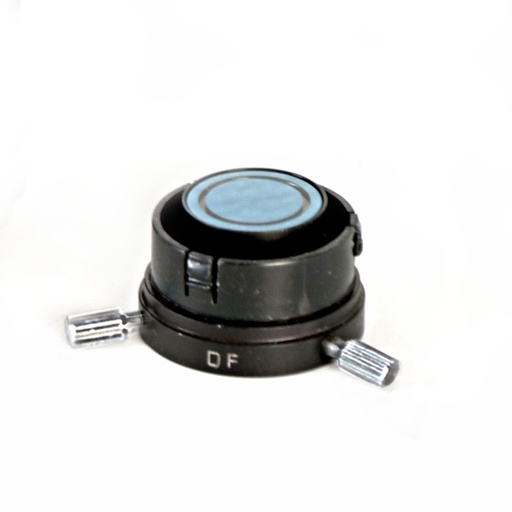

Darkfield insert visible only through the eyepieces!

Film pouch 30 x 40 cm for DIN 13 157 / 13 169

Transparent and resealable pouches

300 x 400 mm
