Microscopes

Discover high-quality microscopes for professional use in laboratories, clinics and educational institutions at meddax24.de. Our range includes various models that are characterized by precise optics and robust materials such as metal and glass. As a certified medical device dealer, we offer microscopes that are suitable for a wide range of applications - from research to diagnosis. You will also find suitable microscope accessories such as slides, cover glasses and cleaning sets in our range. Buy microscopes now and benefit from the highest quality!

Microscopes: Ensuring the Right View for Examinations

Whether in medicine, biology, or other sciences, many groundbreaking scientific discoveries would not have been possible without microscopes, and our current knowledge would be significantly more limited. In laboratory routines, microscopes remain among the most essential tools, whether for research or medical and dental diagnostics. This guide provides an overview of the components of a traditional microscope, the differences between digital microscopes, and how to choose the right model for your needs.

Transmitted-Light and Reflected-Light Microscopes: The Basic Structure

Regardless of whether it is a transmitted-light or reflected-light microscope, every light microscope consists of specific optical components.

The Eyepiece

The eyepiece is cylindrical in shape and always contains at least two lenses. A diaphragm disk is positioned at the top.

Functionally, the eyepiece serves as a link in the optical system: it rotates the intermediate image so that the observer sees it upright and correctly oriented. In most cases, the eyepiece can be replaced, allowing adjustments to the magnification.

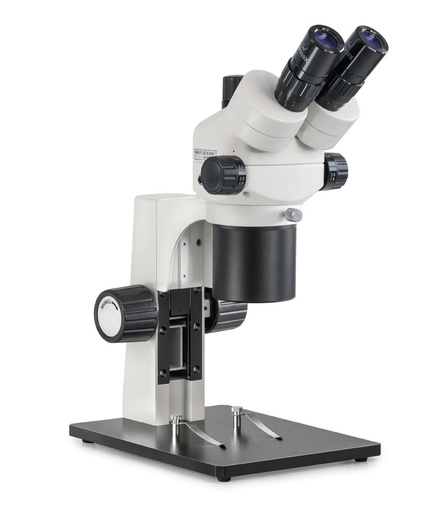

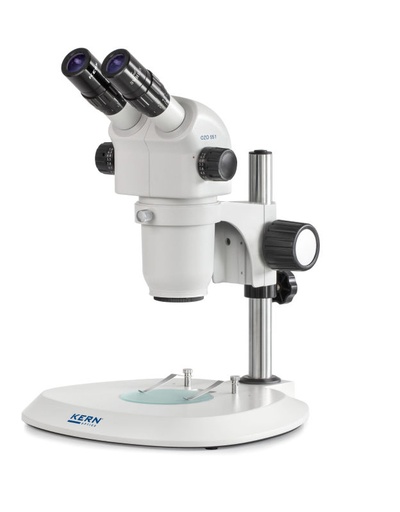

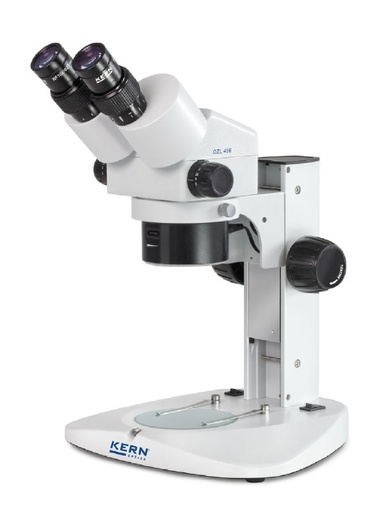

If a microscope has only one eyepiece, it is referred to as a monocular microscope, which is the traditional design but is rarely used in professional laboratories. Instead, binocular microscopes have become the standard, as they allow for fatigue-free operation over extended periods and provide a more comfortable viewing experience. Trinocular microscopes offer even greater versatility: they can be used with both eyes and allow for the attachment of an imaging device, such as a digital camera.

Microscope Stage

The stage is where the specimen to be examined is placed. The specimen is positioned on a glass slide, which allows light to pass through the sample for observation through the eyepiece. Typically, two slides are used to secure the sample between them, and the slides can be fixed in place with clamps on the stage.

When working with high magnifications, as is common in laboratories, manually adjusting the slide becomes difficult. In such cases, the stage should be equipped with a mechanical control system featuring precision adjustment knobs.

The Light Source

A sufficient light source is essential for accurate and efficient work. In basic models, mirrors are used to direct light, while high-quality microscopes are equipped with a controlled light source. Halogen lamps remain a standard lighting option, though LEDs are becoming increasingly popular. In professional settings, Köhler illumination is often used.

The Objective Lens

The objective lens is arguably the most crucial component of the microscope. At the lower end of the microscope, multiple lenses are housed within a cylindrical casing. To quickly switch between different magnifications, modern microscopes feature multiple objective lenses arranged in a revolving nosepiece.

Two parameters define the quality of an objective lens: magnification and numerical aperture. The combination of these two values determines the focal length. Typically, higher magnifications correlate with a higher numerical aperture, which also results in a shallower depth of field. High-performance objective lenses, commonly used in medical and research applications, often require specially adapted eyepieces.

The Condenser

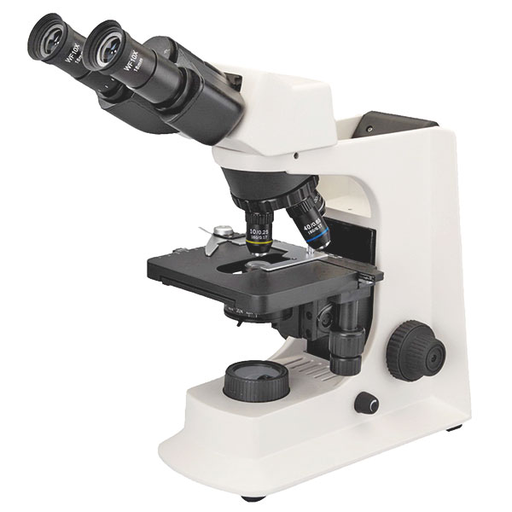

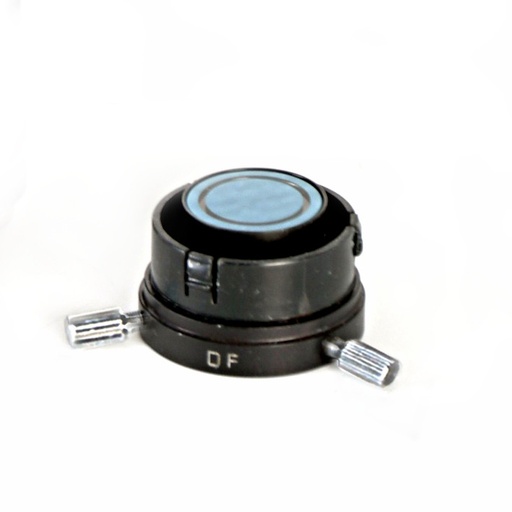

The condenser focuses light from the illumination source onto the specimen in transmitted-light microscopes. This is achieved through a specific combination of lenses. Additional controls allow the use of diaphragms and filters to adjust the illumination. Certain microscopy techniques, such as dark-field microscopy or phase-contrast microscopy, require additional optical components.

The Stand

The stand holds all optical components of the microscope together, ensuring a stable and comfortable operation. It is rigid and features a sturdy base for support. Various control elements can be mounted on the stand, such as coarse and fine focus knobs for adjusting focus. Additional controls for illumination and the condenser may also be attached to enhance user convenience.

The Digital Microscope

Digital microscopes are playing an increasingly significant role in laboratories, as they offer a refined and highly convenient working experience. These models come equipped with a built-in camera that projects the specimen onto a computer screen or display instead of requiring direct observation through an eyepiece. Some digital microscopes even allow full computer-based control.

Digital imaging provides a more detailed analysis of the specimen, which is particularly important in histology. Additionally, working with a digital microscope is less straining on the eyes, as it eliminates the need for constant physical contact with an eyepiece.

Fundamentally, digital microscopes share many of the same optical components as traditional microscopes. However, high-quality illumination plays a crucial role in digital microscopy, which is why advanced models typically feature halogen or LED light sources.

Buying a Microscope: What to Consider

In a laboratory setting, a microscope is primarily a tool, meaning that its intended use is the most critical factor when making a purchase. For medical applications, transmitted-light microscopes with very high magnifications—up to 1000x—are typically required to examine bacteria and other microscopic structures. This makes magnification power an essential selection criterion. Additionally, determining whether a transmitted-light or reflected-light microscope is needed should be the first step in the decision-making process.

Consider how long you or your staff will be using the microscope at a time. For extended periods of use, investing in a binocular microscope is almost essential. If digital integration is required, a trinocular microscope or a fully digital model is the best choice.

Only after considering these factors should budget come into play. When purchasing an expensive microscope, it is advisable to seek professional consultation to ensure the best possible decision.
