Laboratory Supplies

Urine test strips for instrumental evaluation with Clinitek 50, 100 and Clinitek Status. Test strips for the semi-quantitative determination of albumin and creatinine; the albumin/creatinine ratio can be calculated instrumentally for the early detection of microalbuminuria.

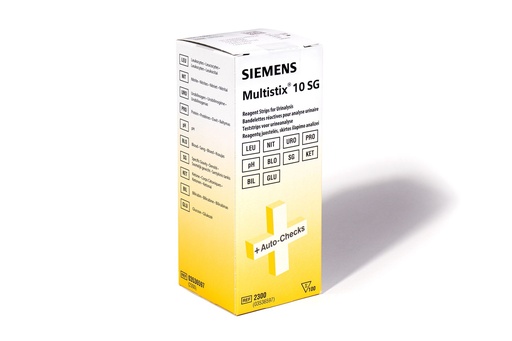

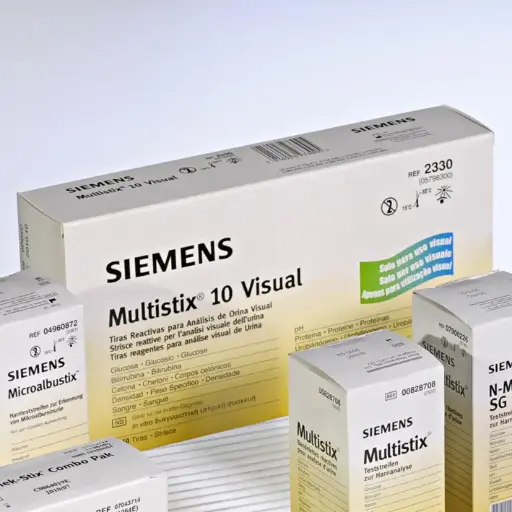

Urine test strips for visual (non-instrument) evaluation. Test strips for the semi-quantitative determination of specific gravity, pH, protein, glucose, ketones, leukocytes, blood and urobilinogen, as well as the qualitative determination of bilirubin and nitrite in urine.

Urine tests for instrumental and visual evaluation

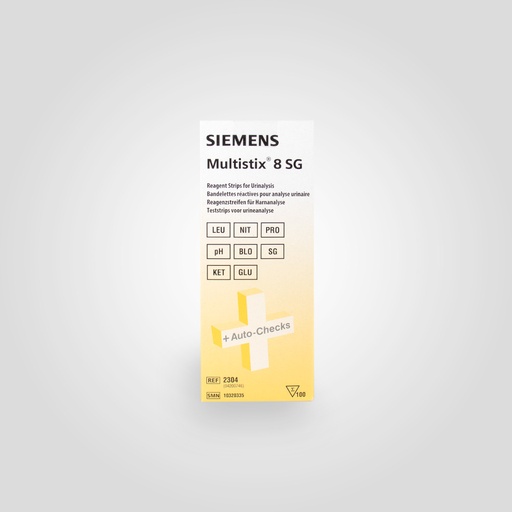

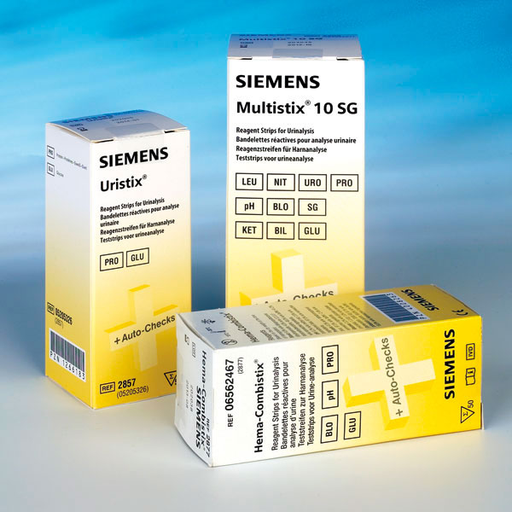

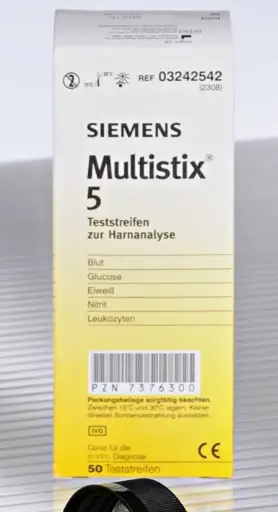

Urine test strips for instrumental and visual evaluation with Clinitek 50, 500, Clinitek Status and Clinitek Advantus. Test strips for the semi-quantitative determination of specific gravity, pH value, protein, glucose, ketones, leukocytes and blood, as well as for the qualitative determination of nitrite.

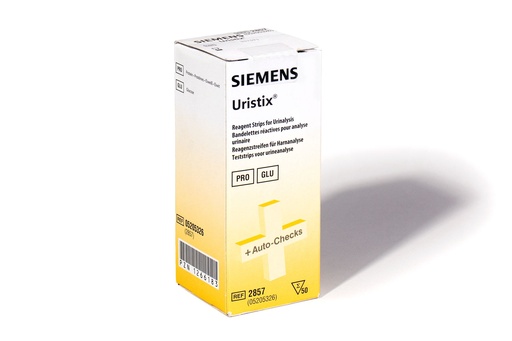

Urine test strips for instrumental and visual evaluation with the Clinitek Status. Test strips for the semi-quantitative determination of glucose and protein in urine.

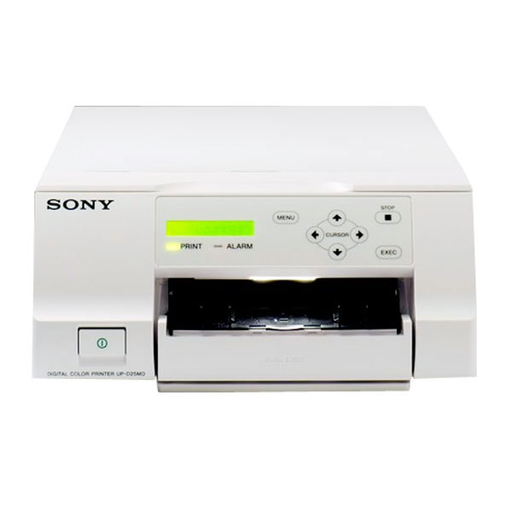

Digital A6 colour printer for medical applications. Dye-sublimation process for best image quality.

The UP-D25MD is the successor model to the UP-D23MD. It is a user-friendly printer with improved image quality (up to 423 dpi, colour adjustment function), suitable for a wide range of media (standard / lamination). The UP-D25MD has a more compact design.

• Fits on modern trolleys for endoscopic examinations

With a width of 212 mm, the UP-D25MD fits on modern trolleys for endoscopic examinations. The space requirement is just as low as with the UP-D23MD.

• High ease of use

The LCD display and control buttons are located on the front. Required adjustments can be made quickly and easily.

• Dye-sublimation printing with lamination

This printer produces durable prints that can be stored and used for a long time. Thanks to intelligent technology that regulates colour consumption per number of sheets, the colour lasts for as long as there is paper left in the printer.

• Easy operation from the front of the device

Even in confined spaces, consumables (including the ribbon) can be replaced quickly and easily. There is no need to access the top, rear or sides.

• Colour adjustment functions

The colours shown on the OR monitor display are reproduced accurately on the printout, enabling the user to interpret procedures in the original colours accordingly.

• Compatible media

The UP-D25MD is compatible with UPC-21L and 21S media.

Printing method: dye-sublimation printing

Resolution: 423 dpi

Colour gradation: 8-bit (256 levels) for yellow, magenta and cyan

Effective print pixels: 21L / 24LA: 2100 x 1600 pixels 21S / 24SA: 1600 x 1200 pixels

Print size: 21L / 24LA: 126 x 96 mm 21S / 24SA: 96 x 72 mm

Print speed: 21L 21S 24LA 24SA approx. 29 sec. approx. 19 sec. approx. 36 sec. (approx.) approx. 25 sec. (approx.)

Interface: Hi-Speed USB (USB 2.0)

Paper capacity: Size L: max. 50 sheets Size S: max. 80 sheets

Operating voltage: 100 to 240 V AC, 50/60 Hz

Input current: 1.7 - 1.0 A

Operating temperature: 5 °C to 35 °C

Operating humidity: 20 to 80% (non-condensing)

Temperature (storage / transport): -20 °C to 60 °C

Humidity (storage / transport): 20% to 80% (non-condensing)

Dimensions: approx. 212 (W) x 98 (H) x 398 (D) mm

Weight: approx. 5.5 kg

Printer paper: UPC-21L: colour printer paper (size L, 50 sheets, 4 x) UPC-21S: colour printer paper (size S, 80 sheets, 3 x)

UPC-24LA: colour printer paper with lamination (size L, 40 sheets, 4 x) UPC-24SA: colour printer paper with lamination (size S, 60 sheets, 3 x)

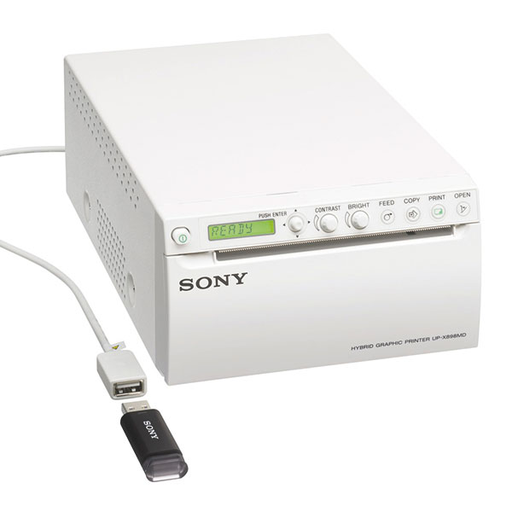

The UP-X898MD is a compact A6 black-and-white printer for medical applications that processes both analogue video signals and PC-friendly digital USB input signals. It was designed for integration with a wide range of compatible medical imaging systems, for example mobile C-arm, cardiac catheter laboratory and digital ultrasound systems. The high-quality thermal print mechanism can produce still-image printouts from such systems for use in patient records and referrals. For even greater convenience, printed photos can also be saved to a connected USB flash drive.

(Please note that images printed by the UP-X898MD cannot be used for diagnostic purposes).

The UP-X898MD is the successor to Sony’s popular UP-897 series of medical printers. The newly designed and revised version now offers numerous operational enhancements and improved ergonomics while retaining its compact design and easy integration into medical trolleys. Ease of use has been further enhanced with a larger LCD display and a joystick for intuitive menu navigation. The unit is capable of producing high-quality black-and-white prints in under 2 seconds. Advanced thermal printing technology ensures near-photographic quality while working with widely used print media. Printing method: Direct thermal printing

Resolution: 325 dpi

Grey scale: 8 bit (256 levels)

Image elements: Digital: 4,096 x 1,280 pixels

Video NTSC: 720 x 504 pixels

Video PAL: 720 x 604 pixels

Image area: Digital: 320 x 100 mm (max.)

STD video NTSC: 94 x 73 mm, video PAL: 94 x 71 mm (WIDESCREEN 1)

SIDE video NTSC: 124 x 96 mm, video PAL: 127 x 96 mm (WIDESCREEN 1)

Paper size: Paper width 110 mm

Print speed: High-speed mode:

Approx. 1.9 seconds per image (at standard setting)

Normal-speed mode:

Approx. 3.3 seconds per image (at standard setting)

Image memory: Digital: 4,096 x 1,280 x 8 (bit)

Video: 10 image memories (850k x 8 bit per full frame)

Interface: USB port (Type A) for USB flash drives (1x)

Hi-Speed USB (USB 2.0) (1x)

VIDEO IN: BNC type (1x)

NTSC or PAL composite video signals

1.0 Vp-p, 75 ohms (NTSC/PAL automatically detected)

VIDEO OUT: BNC type (1x), loop-through

REMOTE: Stereo mini-jack (1x)

Printer driver software: Microsoft Windows XP 32/64, Vista 32/64, 7 32/64, 8 32/64

Operating voltage: 100 to 240 V AC, 50/60 Hz

Input current: 1.3 to 0.6 A

Operating temperature:

5 °C to 40 °C

Operating humidity: 20% to 80% (non-condensing)

Storage and transport temperature: -20 °C to +60 °C

Storage and transport humidity: 20% to 80% (non-condensing)

Dimensions (W x H x D): 154 x 88 x 240 mm

Weight: 2.5 kg

Safety regulations: (US/CA) ANSI/AAMI ES60601-1, UL 60601-1, UL 60950-1,

CAN/CSA-C22.2 No. 60601-1, CAN/CSA C22.2 No. 601.1, CAN/CSA C22.2 No. 60950-1

(EU) EN 60601-1, EN 60950-1 (CB) IEC 60601-1 (2nd/3rd ed.), IEC 60950-1

EMC standards: (US/CA) FCC Part 15 Subpart B Class A digital device, ICES-003 Class A

digital device (EU) EN 60601-1-2 (Class B), EN 55022 (Class B) + EN 55024,

EN 61000-3-2 and EN 61000-3-3 (AU) AS/NZS CISPR22 (EN55022) Class B (JP) VCCI

Class A, JIS C 61000-3-2 (KR) KN22, KN24 Class B

EU Directive: (EU) MDD, EMC, LVD

Supplied accessories: Thermal head cleaning sheet (1), CD-ROM (1), Notes on

using the printer (1), service contact list (1), USB flash memory

without cable cable, print media (UPP-110HG)

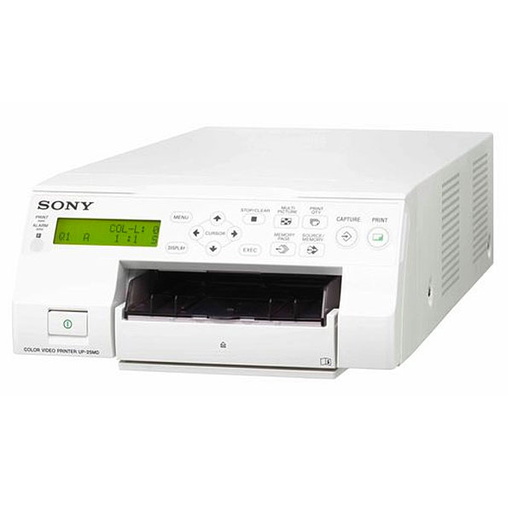

The UP-25MD is a high-quality printer for medical applications. It is equipped with a wide range of analogue video inputs for standard-definition and high-definition signals and is compatible with numerous medical imaging devices.

The dye-sublimation printing process produces robust, durable prints in photo-lab quality. The unit can be used with both our traditional UPC-21S/L media series and the UPC-24SA/LA media, whose laminate layer protects the prints from external influences. To optimise colour reproduction accuracy, the colours can be adjusted using RGB or HSV colour spaces to match the monitor display. Dimensions: 212 x 98 x 398 mm (W x H x D)

Weight: 5.7 kg

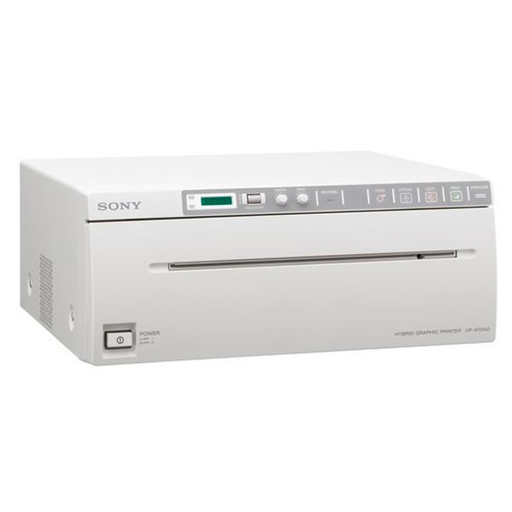

The UP-970AD, successor model to the UP-960, receives analogue and digital input signals. Ideal for medical applications such as printing C-arm and ultrasound images. Supplied accessories:

Print head cleaning sheet (1) BNC cable (1) USB cable (1) Operating instructions (Getting Started) (1) CD-ROM (Operating instructions, driver software) (1) Stickers (1) Software licence (1) UPP-210HD high-density printer paper (1)

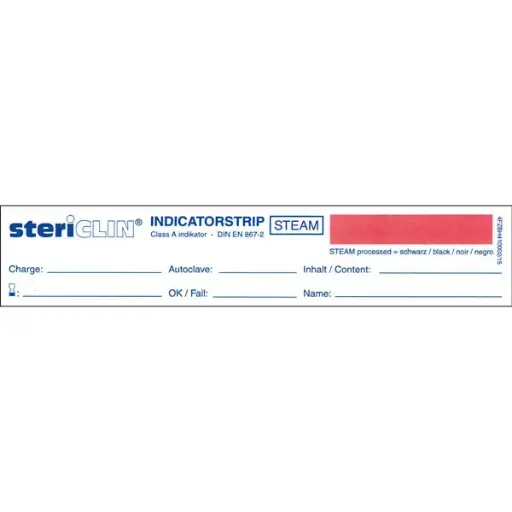

Format: 150 x 30 mm

Dispenser box = 250 pieces

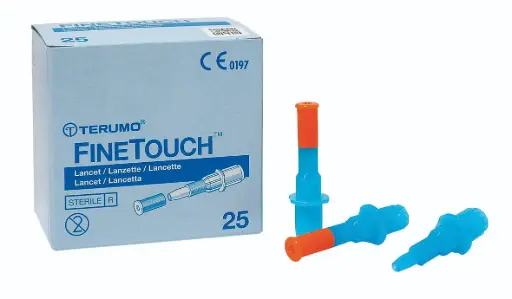

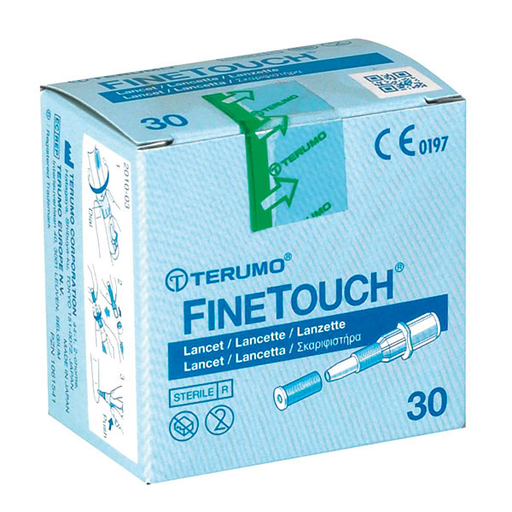

Thanks to the special combination of a hollow needle and minimal puncture depth, Terumo Finetouch lancets cause less pain. The intelligent lancet design prevents accidental needle-stick injuries.

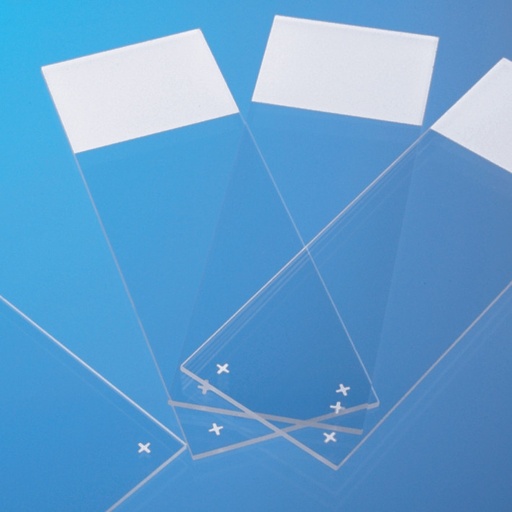

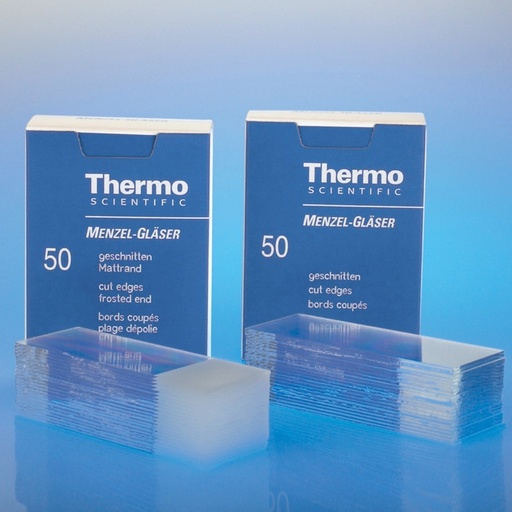

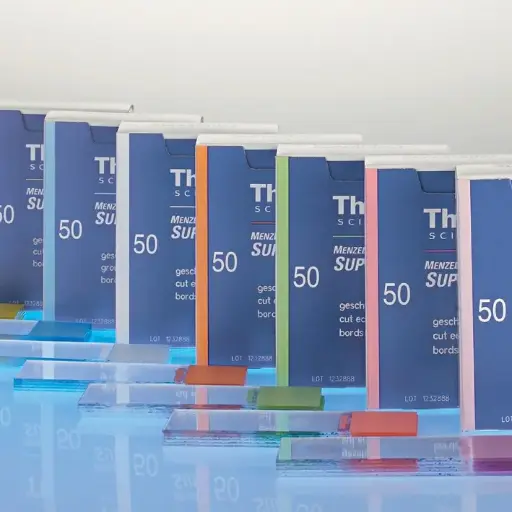

The microscope slides have proven superior for cell adhesion in cytocentrifuge preparations and in standard Papanicolaou smears. They bind fresh frozen sections and cytological specimens through electrostatic attraction. A bridge is formed so that covalent bonds are created between the formalin-fixed tissue sections and the glass. Fixed, paraffin-embedded tissue sections and cytological specimens adhere to the slides without the need for special adhesives or protein coatings. This eliminates the need for costly and time-consuming preparation techniques. Size 75 x 25 x 1 mm, edges ground 90°, white labelling area

The Multicheck PRO lipid is a portable POINT OF CARE system for fast and reliable analysis of: lipid profile and glucose. It enables reliable monitoring of diabetes, metabolic syndrome and anaemias.

Hypercholesterolaemia is a silent killer. Cardiovascular diseases caused by excessively high cholesterol levels are now at the top of the causes of death in industrialised countries and in high-income population groups.

Multicheck PRO lipid shows the complete lipid profile with a single measurement and calculates the ratios of:

• Total cholesterol
• Triglycerides
• HDL ratio and LDL
• HDL ratio to cardiovascular risk
• Glucose

Software for downloading the data (Windows®) is available for PC connection.

Complete system with meter incl. batteries and 2 pipetting aids, 1 lancing device, 1 bag and an instruction manual.

Instruction and setup directly at your practice available on request by prior arrangement!

Technical data:

Power supply: 3 x AAA 1.5 volt alkaline batteries
Battery life: 500 lipid profiles or 1000 Hb measurements
Measurement method: Lipid – reflectometric measurement method; Glucose – electrochemical measurement method
Display: LCD with backlight
Buttons: ON / OFF and two additional function buttons
Memory capacity: 1000 measurements
Measurement time: Hb = 5 seconds / Lipid = 3 minutes / Glucose = 5 seconds
Ambient temperature: +10 °C to +40 °C

Quick-draining thanks to the steep 60° angle, practical handle with hanging loop, food-safe product in accordance with Regulation (EC) No. 10/2011

with ergonomically shaped handle

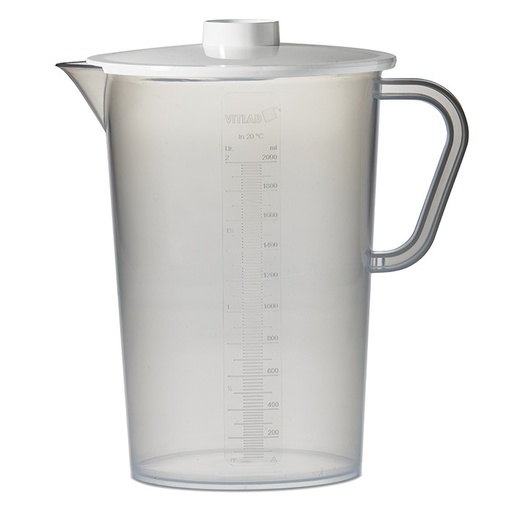

Graduation 20 ml, height 220 mm, Ø 150 mm, with a sturdy, easy-grip handle and white PC lid, max. operating temperature 125°C, food-safe product in accordance with Regulation (EU) No 10/2011

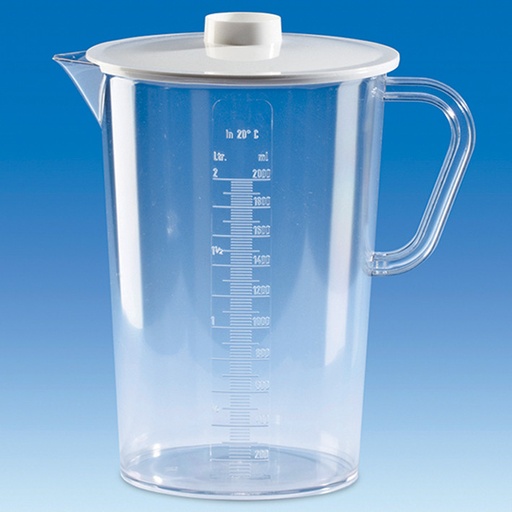

Graduation 20 ml, height 220 mm, Ø 150 mm, with sturdy, easy-grip handle and white PC lid, max. operating temperature up to 70°C, not autoclavable, food-contact suitable product in accordance with Regulation (EU) No. 10/2011

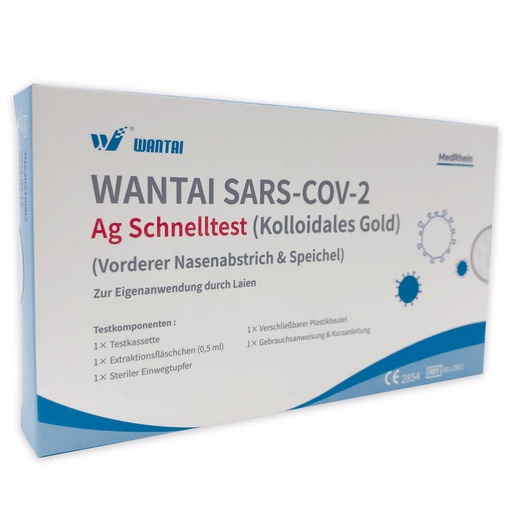

The WANTAI SARS-CoV-2 Ag Rapid Test (colloidal gold) is an immunochromatographic lateral flow test for the qualitative detection of SARS-CoV-2 nucleocapsid antigen in anterior nasal swabs and saliva samples. The test is intended for self-testing by lay users. Children and adolescents under 18 years of age must be assisted by parents or a responsible adult. CE approval (CE 2854). Suitable for anterior nasal swab & saliva.

Contents:
- 1 test cassette
- 1 extraction bottle (0.5 ml)
- 1 sterile disposable swab
- 1 resealable plastic bag
- 1 instructions for use & quick guide
