AKS

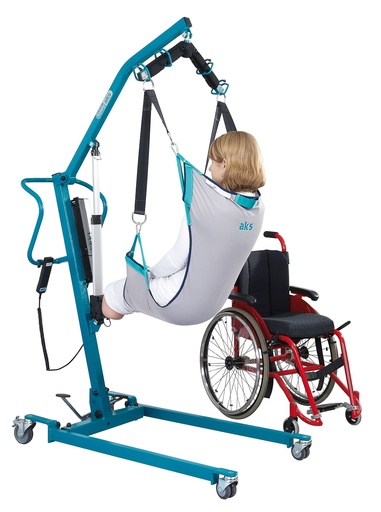

The universal comfort sling is made of flexible woven fabrics that adapt to the patient’s body.
This sling is intended for use in dry environments and is suitable for lifting patients with leg amputations.
A handle loop for manoeuvring the patient in the sling is fitted in the head/shoulder area.

Product data:

Standard: DIN EN ISO 10535:2007-04
Maximum load: 150 kg

Material composition:
Loop material: polyester webbing;
Attachment strap: polyester webbing;
Rings, carabiners: steel;
Outer fabric: 100% polyester;
Reinforcement below the loops:
Aluminium strips

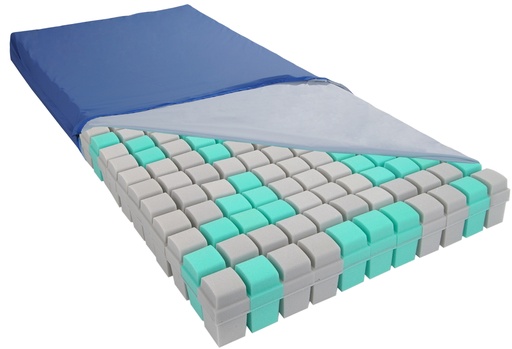

The mattress with removable foam cubes for greater flexibility and fine adjustment

The removable cubes of this mattress enable anatomically individual body adaptation and comfortable soft positioning for optimised pressure distribution. The advantages of the aks-varioplus
• Combination cube mattress made from high-quality foams
• Soft and cavity positioning with different compression firmness levels and heights of the removable cubes for finer, individual body adaptation
• Rounded cube surfaces for optimised distribution of the patient’s weight over the largest possible area, improved reduction of contact pressure
• The plug-in grid system connects the various cubes to each other
• Areas affected by pressure ulcers can be positioned almost pressure-free
• Upon delivery of the mattress, softer and firmer cubes are already inserted according to anatomical requirements
• The design and precision cutting of the cubes provide sufficient free space for optimal air circulation between patient and mattress
• incl. aks-inkoair® mattress cover (also available separately)

Patient weight 40–120 kg Pressure ulcer grade up to and including grade II (according to EPUAP)

Anti-decubitus foam seat cushion featuring a synergy of viscoelastic foam and foam spring technology. The wheelchair seat cushion for the ambitious wheelchair user, with the key product advantages. Supplied as standard with a high-quality 3D air seat cushion cover.

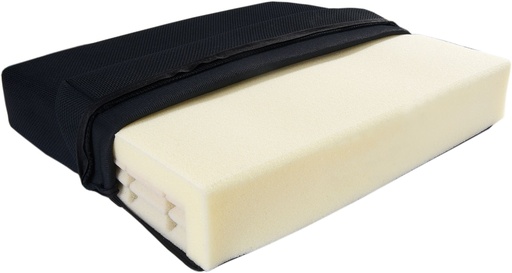

3D air replacement seat cushion covers
for viscosit M and L 40 x 40 x 8 cm
for viscosit M and L 40 x 45 x 8 cm
for viscosit M and L 45 x 40 x 8 cm
for viscosit M and L 45 x 45 x 8 cm

The offer includes only the 3D air replacement seat cushion cover!

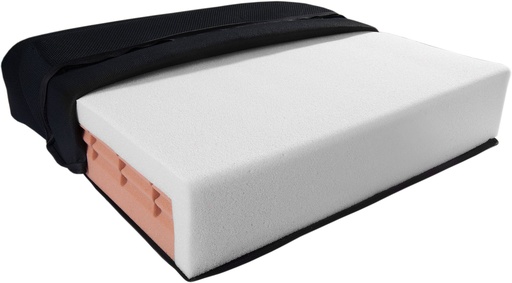

Anti-decubitus foam seat cushion featuring a synergy of viscoelastic foam and foam spring technology. The wheelchair seat cushion for the ambitious wheelchair user with the decisive product benefits. Supplied as standard with a high-quality 3D air seat cushion cover.

3D-air replacement seat cushion covers
for viscosit XL 50 x 40 x 10 cm
for viscosit XL 50 x 45 x 10 cm
for viscosit XL 50 x 50 x 10 cm
for viscosit XL 55 x 40 x 10 cm
for viscosit XL 55 x 45 x 10 cm
for viscosit XL 55 x 50 x 10 cm

Only the 3D-air replacement seat cushion cover is included in the offer!

Large-cell anti-decubitus alternating pressure system – standard class

This large-cell anti-decubitus alternating pressure system from the aks standard class is suitable for pressure ulcers up to Grade II. It enables positioning of patients in need of care with a body weight of 40 to 120 kg. Lock-in plug-in connections ensure safe use.

The standard class already starts with a large-cell mattress overlay system, which provides comfortable pressure relief for the patient through alternating pressure.

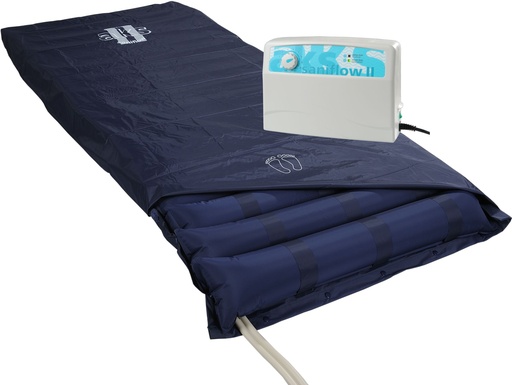

The advantages of the aks-saniflow® II
• Mattress overlay system
• Easy operation: infinitely variable pressure adjustment according to patient weight, sturdy foldable metal brackets for attachment to the bed, easy filter replacement
• Visual indicator when the desired pressure is reached
• Visual alarm in case of pressure loss (e.g. leakage)
• Highly elastic foam strip on the underside and soft feet for noise decoupling
• Cycle time 12 minutes
• Alternating two-chamber system for intermittent pressure relief
• 17 cells, individually replaceable
• Cell height 13 cm
• Nylon/PVC mattress cover secured to the mattress overlay with press studs at the head and foot end, waterproof
• With flaps for fastening to the foam mattress base
• Quick deflation of the mattress via end plug with pull ring
• Secure lock-in connection of the hoses to the pump unit

Patient weight 40–120 kg
Pressure ulcer grade up to and including Grade II
(according to EPUAP)

Product data:

Mattress overlay:
Dimensions – 13 x 90 x 200 cm
Weight – 4.9 kg
Cells/air chambers – 17

Pump unit:
Dimensions – 28 x 20.5 x 10 cm
Weight – 1.1 kg

Pain patients can be positioned gently in static mode

This large-cell alternating pressure anti-decubitus system from the aks standard class is suitable for pressure ulcers up to grade II. It enables the positioning of patients in need of care with a body weight of 40 to 120 kg. Pain patients can be positioned gently in static mode. Locking plug-in connections ensure safe use.

Advantages: see description of the aks-saniflow® II
Additional functions of the aks-saniflow® II S
• Switch for static mode
• Visual and audible alarm in case of pressure loss (e.g. leakage)
• Switch to reset the audible alarm

Patient weight: 40–120 kg
Pressure ulcer grade: up to and including grade II (according to EPUAP)

Product data:

Mattress overlay:
Dimensions: 13 x 90 x 200 cm
Weight: 4.9 kg
Cells/honeycomb: 17

Pump unit:
Dimensions: 28 x 20.5 x 10 cm
Weight: 2.3 kg

Innovative lifting care bed frame
with rock-solid arguments

Standard sizes with 29 V SMPS technology
Lying surface: wooden sprung slats, 90/100 x 190/200 cm,
electrically adjustable, supplied on a transport and storage aid

The lifting care bed frame was developed for use at home
within an existing bed frame.
The practical alternative to the classic nursing bed.
The homely environment is retained, comfort
increases and daily care is noticeably made easier.

Advantages of the aks-B4 compact lifting care bed frame
• easy to integrate into an existing bed at home
• increased lying comfort thanks to a four-section lying surface
with electrically adjustable height, backrest and leg rest;
the foot section with knee-break can be electrically adjusted
in any position by the patient using the hand control
without nursing assistance – patent protected!
• low entry height and large height-adjustment range
for optimal adaptation to the working height
for back-friendly working
• stable metal frame with sprung slats
• stable stand with only 116 cm length and 81 cm width
of the symmetrically centrally positioned scissor-lift subframe,
variable fixing to the bed conversion frame
with two drilled holes for screws, thus
tilt stability achieved, manufactured to EN 60601-2-
52:2010
• easy assembly and transport: subframe removable without
tools, upper frame can be dismantled into two parts
• flexibility when attaching the lifting pole thanks to two
mounting points
• adjustable via mattress retainers
• ergonomic hand control with large buttons,
integrated lock function and testing of single-fault safety
possible
• SMPS 29 V: The switch-mode power supply provides safety through
overload protection and voltage stability with variable
input voltage
• supplied on a transport and storage aid

Options and accessories
• lying surface widening kit to 100 cm

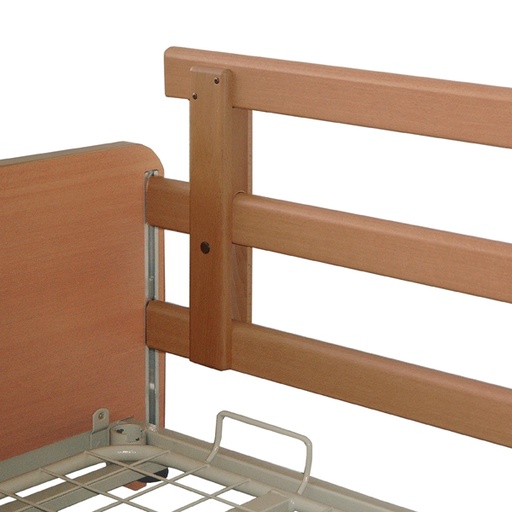

• extended side rails, plug-in with
special bracket

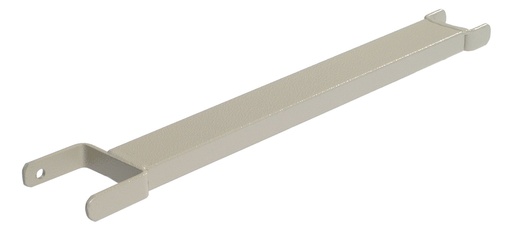

• easier assembly by one person using the
assembly aid

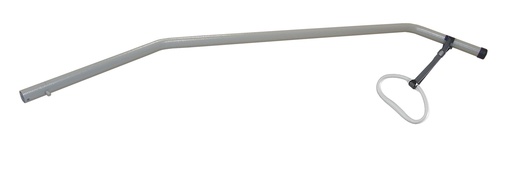

• lifting pole with grab handle and strap

Functional strength for the
existing bed at home
In familiar surroundings – at home, in your own bed –
the benefits of a nursing bed can also be used for heavyweight
persons without major effort.
The lifting care bed frame is inserted into the existing
bed and is immediately ready for use, with
all the advantages of a nursing bed.

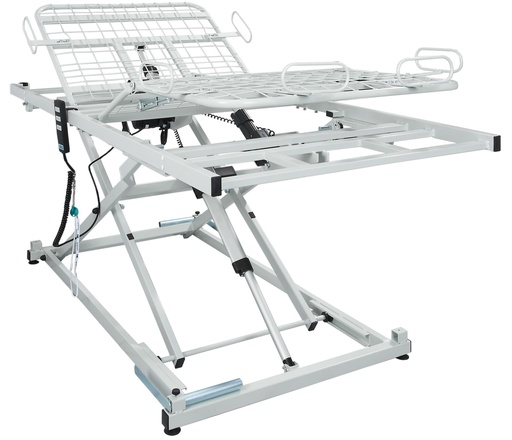

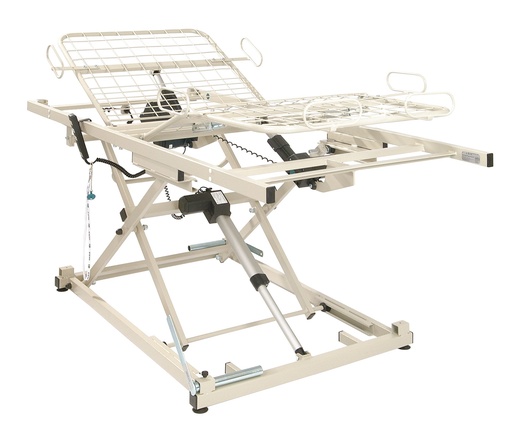

The advantages of the lifting care bed frame
• increased lying comfort thanks to four-section lying surfaces,
height and head section electrically adjustable
• maximum functionality: foot section with knee bend can be electrically adjusted from the lifting care bed frame via the handset without nursing assistance – patent protected!
• stable construction with powerful single scissor lift
(aks-B4 L and B4 XL) and metal lying surface
• high stability for demanding bariatric care applications
thanks to robust metal lying surface and specially
developed double scissor lift (aks-B4 XXL)
• easy to fit into the existing bed at home or in
a care home
• mains disconnection: this safety system disconnects
the lifting care bed frame on all poles from the mains power supply when the handset is not operated.
• ergonomic handset with large buttons,
integrated lock function and testing of single-fault safety
possible
• special colour RAL 7035, light grey

Options and accessories
• lifting pole with grab handle in reinforced version made of
square tube from 120 cm lying surface width
• side rails with special bracket
• raised side rails with special bracket

The functional strength for your existing bed at home
In a familiar environment – at home, in your own bed – the benefits of a care bed can also be used for heavyweight persons without great effort. The lifting care bed frame is inserted into the existing bed and is immediately ready for use, offering all the advantages of a care bed.

Advantages of the lifting care bed frame
• increased lying comfort thanks to four-section lying surfaces; height and backrest electrically adjustable
• maximum functionality: leg section with knee break can be electrically adjusted from the lifting care bed frame via the handset without caregiver assistance – patent protected!
• stable construction with powerful single scissor lift (aks-B4 L and B4 XL) and metal lying surface
• high stability for challenging heavyweight care situations thanks to a robust metal lying surface and specially developed double scissor lift (aks-B4 XXL)
• easy to fit into an existing bed at home or in a care home
• mains disconnection: this safety system disconnects the lifting care bed frame from the power supply on all poles when the handset is not being operated
• ergonomic handset with large buttons, integrated locking function and the option to test first-fault safety
• special colour RAL 7035, light grey

Options and accessories
• lifting pole with grab handle in reinforced design made of square tubing for lying surface widths from 120 cm
• side rails with special bracket
• raised side rails with special bracket

The functional strength for your
existing bed at home
In a familiar environment – at home, in your own bed –
the advantages of a nursing care bed can also be used for
heavier persons without much effort.
The lifting care bed base is inserted into the existing
bed and is immediately ready for use, with
all the advantages of a nursing care bed.

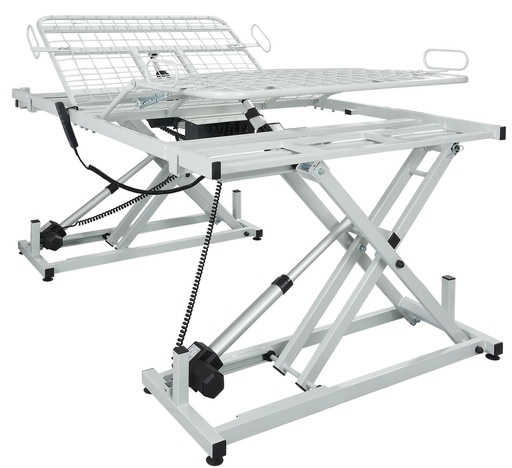

The advantages of the lifting care bed base
• increased lying comfort thanks to four-section lying surfaces;
height and head section electrically adjustable
• maximum functionality: foot section with knee-break can be
electrically adjusted from the lifting care bed base via
handset, without nursing assistance – patent protected!
• stable construction with powerful single scissor lift
(aks-B4 L and B4 XL) and metal lying surface
• high stability for challenging care situations involving heavier persons
thanks to the robust metal lying surface and specially
developed double scissor lift (aks-B4 XXL)
• easy to install in the existing bed at home or in a
care home
• mains cut-off: this safety system disconnects
the lifting care bed base from the mains on all poles when
the handset is not being operated.
• ergonomic handset with large buttons,
integrated lock function and the possibility to test first-fault safety
• special colour RAL 7035, light grey

Options and accessories
• lifting pole with grab handle in reinforced version made of
square tubing from 120 cm lying surface width
• side rails with special bracket
• raised side rails with special bracket

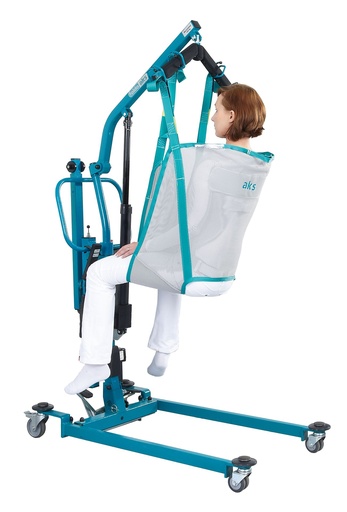

The sling made of snag-resistant polyester mesh dries quickly and is particularly helpful for less mobile people with personal hygiene in the bathroom.

Technical data
Standard: DIN EN ISO 10535:2007-04, maximum load: 150 kg

Material composition:
Loop material: polyester webbing;
Outer fabric: 100% polyester mesh;
Padding (leg supports): 100% PE foam;
Padding (back): 100% PE foam;
Back reinforcement: aluminium strips

Set consists of 4 side rail bars and 1 mattress platform extension

Set consists of 4 side rail bars, 1 mattress base extension and 1 lower frame extension

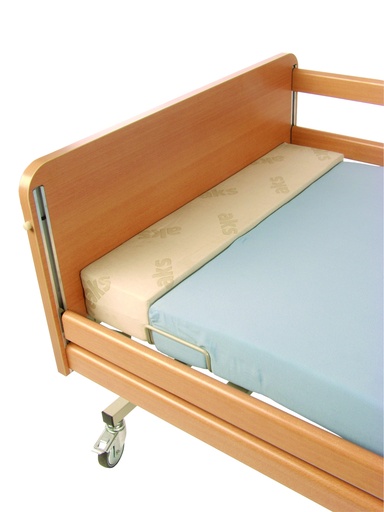

Bed extension for item 17582-02

clino® XL was developed for the care of heavy-weight patients in facilities.
clino® XL
• with high-quality drive components from LINAK®
• high-quality castors with thread guard and excellent rolling performance, easy “manoeuvring”
• ergonomic push handle (Figure 1)
• ergonomic hand control
• mechanical spreading of the base via foot pedal
• low underclearance height, also suitable for aks nursing beds
• effortless lifting of persons directly from the floor
• max. load capacity 185 kg
Options and accessories
• battery pack with separate wall charging station

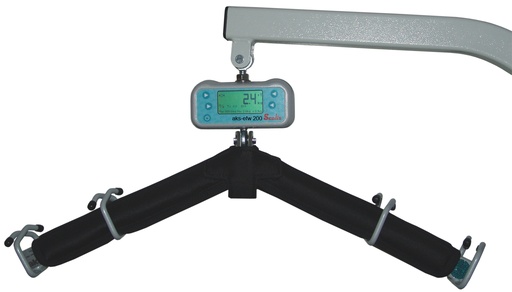

• wide range of lift slings, various spreader bars and lift scales
• electric spreading of the base via hand control (clino® e XL)

As a further development of the aks hygiene sling, this is the most comfortable solution for toileting. The sling provides more support in the back area and improved seating comfort thanks to particularly wide, padded leg supports. A head support can also be attached.

Product data:

Standard: DIN EN ISO 10535:2007-04
Maximum load: 150 kg

Material composition:
Loop material: polyester webbing;
Outer fabric: 100% polyester;
Padding (leg supports): 100% PE foam;
Hook-and-loop fastener: 100% nylon

The harness, specially developed for patients with limited trunk stability, provides comfortable support for the entire body. The high back section with removable aluminium stiffeners, as well as the integrated head support, increase safety during use and improve comfort. In addition, the integrated padding of the leg supports enhances sitting comfort for pressure-sensitive users and gives the harness its name. The colour-coded loops allow multiple adjustment options for the harness and flexible positioning. Several grab loops on the outside assist the caregiver when “manoeuvring” the patient.

Technical data
Standard: DIN EN ISO 10535:2007-04
Maximum load: 150 kg

Material composition
Loop material: polyester webbing;
Outer fabric: 100% polyester;
Padding (leg supports): 100% PE foam;
Back reinforcement: aluminium stays

without lifting arm, without standard yoke,
without footplate, without straps
Size: standard, Leg spread: manual
