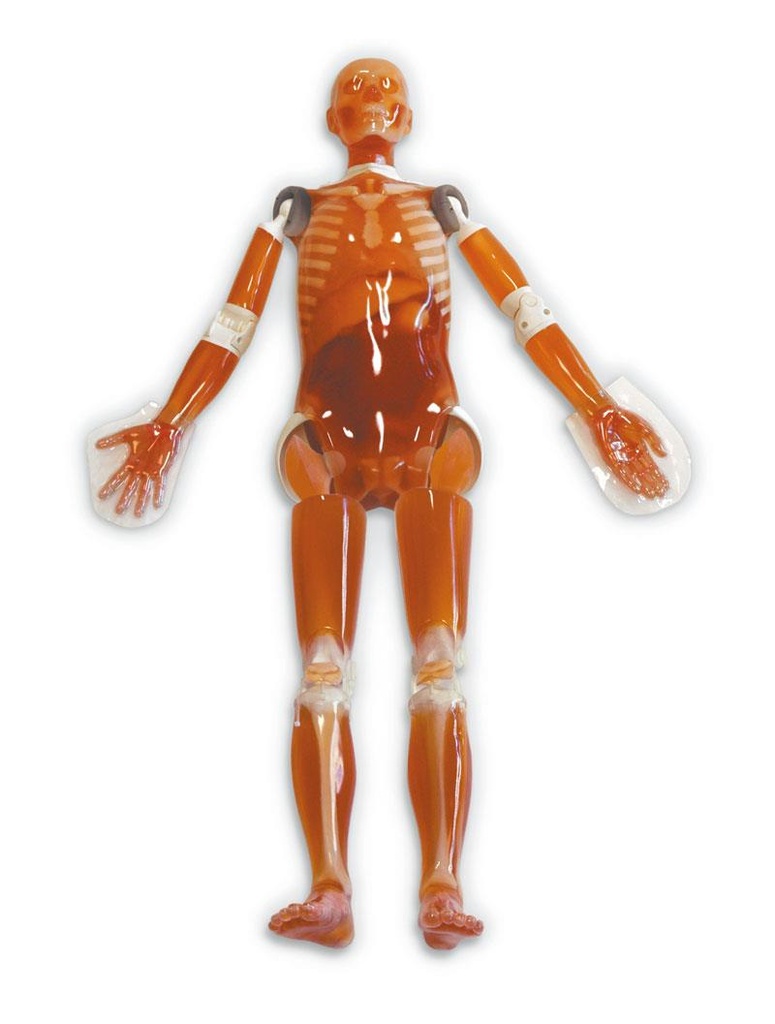

ERLERZIMMER Full Body CT Phantom

Full-body CT Phantom
A unique full-body CT phantom offers a wide range of training and research opportunities. The phantom can also be used for standard X-ray imaging and produces realistic images. There are no metal parts or fluids in the phantom. The key joints have human-like mobility and allow a variety of positions for practice. The phantom can be disassembled into 10 parts. The improved shoulder joints allow the arms to be raised. The artificial organs are anatomically correct and have corresponding HU values.

Patient positioning:
- Shoulders rotate a full 360° in the sagittal plane, approx. 180° laterally.
- Hip joints rotate forwards up to approx. 90°, then up to 45° outwards on each side.
- Knees can be flexed up to approx. 90°.
- Elbows flex up to approx. 90°.
- The phantom can adopt the frog-leg position while lying supine.
- The limbs and head can be removed.
- The headrest allows a variety of head positions.

Internal organs and structures:
- Head and torso
- Synthetic skull
- Cervical vertebrae
- Brain
- Vertebrae
- Clavicles
- Rib
- Sternum
- Shoulder blades
- Pelvic bones
- Femur
- Lungs with pulmonary vessels
- Trachea
- Liver with portal vein and hepatic vein
- Pancreas
- Kidneys
- Gallbladder
- Spleen
- Aorta
- Vena cava
- Ureters
- Urinary bladder
- Prostate
- Rectum
- Sigmoid colon
- Ureters
- Urinary bladder
- Prostate
- Rectum
- Sigmoid colon
Phantom materials:
Radiological absorption and Hounsfield number similar to the human body.
