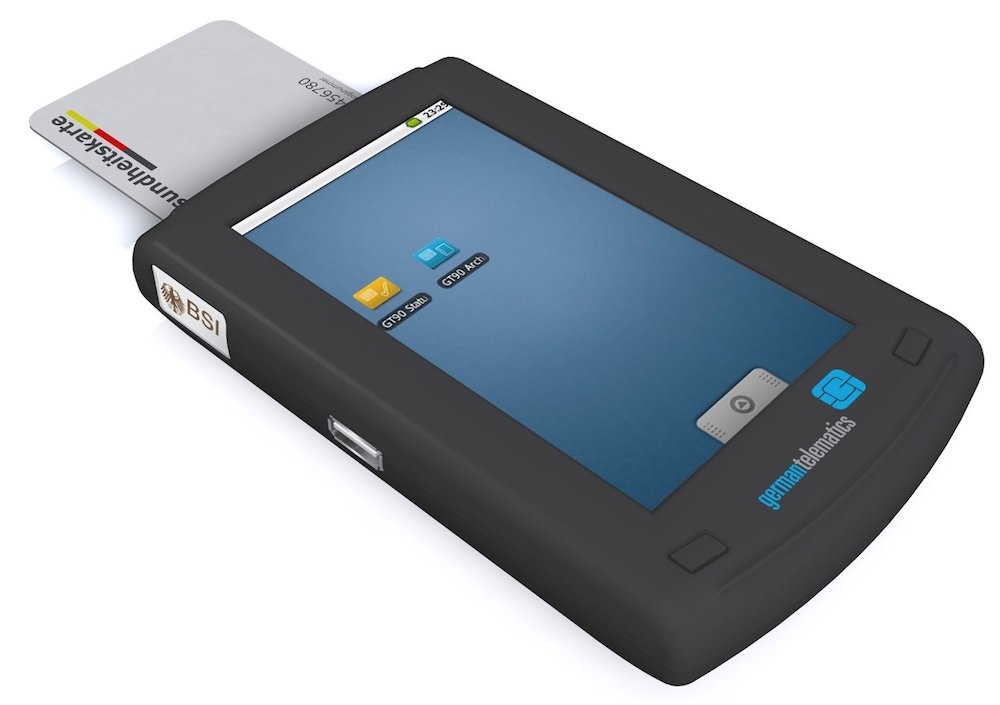

GERMAN TELEMATICS eHealth Terminal GT90 mobile „touch“ black 4.3“

Only mobile chip card terminal with
disinfectable touchscreen

easy to use / disinfectable / multifunctional

- simultaneous reading of eGK / KVK and HBA possible
- inserted cards are read automatically
- user-friendly 4.3” touch display
- specification-compliant display of all emergency data of a patient possible
- long stand-by times (up to 300 h)
- replaceable battery
- mobile signature planned for expansion stage 2
- mobile PVS possible
- Weight: lightweight at 179 g
- easy synchronisation with your computer
- up to 32GB data storage with additional Micro-SD card
- many useful PVS apps available on request
- compatible with all common practice management systems
- intended for the basic rollout with gematik and BSI certification

Technical data of the mobile card terminal GT90

Dimensions / weight
8 cm x 13 cm x 1.6 cm / approx. 179 g (including battery)

CPU / processor
ARM / 32-bit high performance RISC / 293 MIPS @ 266 MHz

Operating system
Android 2.1 / Linux 2.6.x

Memory
RAM: 64 MB SDRAM
FLASH: 256 MB Flash
External FLASH memory: 1 x MicroSD HC up to 32GB (microSD card reader - hinge type)

USB interfaces
1 x Full Speed Host / USB 2.0 compatible / Type A
1 x Full Speed Client / USB 2.0 compatible / Type MicroB

Chip cards
supported types:
KVK, eGK, HBA, SMC, SM-KT,
ISO 7816 Class A, B and C cards (5V, 3V, 1.8V)
- support of protocols S=8, S=9, S=10, T=0,
T=1
Contact units:
1 x chip card contact unit according to ISO 7816 ID-1 for eGK or KVK
1 x chip card contact unit according to ISO 7816 ID-1 for HBA
1 x contact unit according to ISO 7816 ID-000 for SMC-A or SMC-B
> 100,000 insertion cycles for ID-1 contact units, in particular eGK/KVK
- automatic card detection with short-circuit and
overheat protection

Display Touch-enabled
4.3“ TFT display (resistive touchscreen)
- resolution: 480xRGBx272
- energy-saving LED backlight
- finger operation possible
- stylus as optional accessory

Housing
pressed, 2-part, non-separable ABS
plastic housing
- disinfectable
- colours white or black
- battery compartment cover with clip mechanism
- versions in high-quality high-gloss finish possible

Switches
1 x ON/OFF switch with sleep function
2 x control buttons

Optical & acoustic signal interfaces
1 x multi-colour LED (e.g. red/green) for indicating operating and charging status
1 x built-in speaker + microphone

Power supply
replaceable lithium polymer battery
- charging possible in the device via Mini USB port
