| Item No.: | 21009-02 |
|---|---|
| Manufacturer item no.: | TKG-104-TOUCH-IP68-VESA-GREY-USB-DE |
| WEEE numbers: |
|

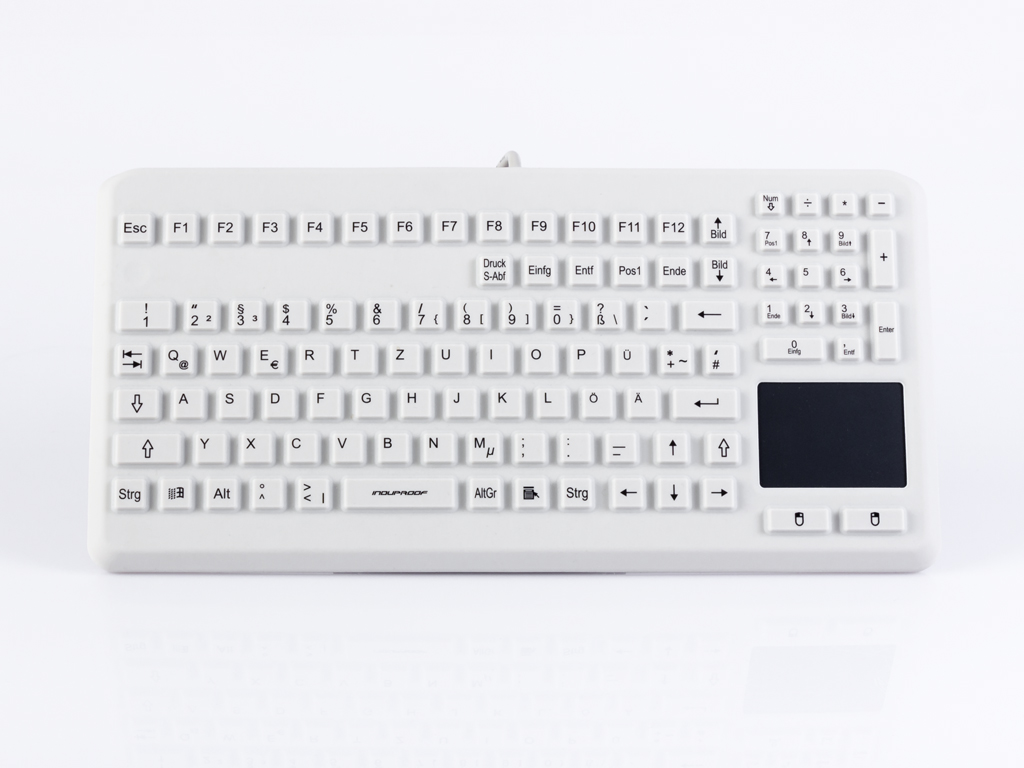

The InduProof Advanced features a full key set with numeric keypad, an integrated touchpad and impresses with a pleasant typing feel while offering the highest level of protection. Thanks to its robust design, it is ideally suited for use in demanding, hygiene-sensitive areas such as industrial food and beverage production. It can be thoroughly cleaned and disinfected all over. With its high-quality “Made in Germany” workmanship, it offers a long service life.
As part of the InduProof brand family, it is manufactured to the highest quality standards.
• Integrated touchpad
• VESA M5 threaded inserts (spacing 75 x 75 mm) for mounting on support systems
• Sealed to IP68, can be immersed in liquids
• Good mechanical and chemical resistance thanks to special surface sealing (coating)
Compliant with DIN EN60601-1-2-2006 (Directive 93/42/EEC, Annex IX)
• Can be completely cleaned and disinfected
• Robust, durable silicone material
Product data:
Number of keys: 104
Switching technology: carbon contacts
Actuation force: 1.5 N
Actuation force (Num): 1.1 N
Key travel: 1.4 mm
Service life: 2 million actuations (per key)
Protection class (max): IP68
Material (housing): silicone rubber
Material (base plate): plastic
Housing colour: grey, black
Interfaces: PS/2; USB (USB 2.0 compatible)
Operating temperature: 0 °C to +60 °C
Storage temperature: -20 °C to +70 °C
Weight: 735 g
Dimensions: 340 x 165 x 16.3 mm
Certifications: CE, FCC
TECHNICAL DATA TOUCHPAD
Operating principle: capacitive
Resolution: 100 - 300 dpi
Active area: 59 x 42 mm
TECHNICAL DATA VESA SOCKETS
Thread: M5
Material: 1.5 mm steel
Recommended tightening torque: 3.60 Nm
Resistance to twisting: 8.47 Nm
Pull-out force: 3110 N
Other layouts available on request!
As part of the InduProof brand family, it is manufactured to the highest quality standards.
• Integrated touchpad
• VESA M5 threaded inserts (spacing 75 x 75 mm) for mounting on support systems
• Sealed to IP68, can be immersed in liquids
• Good mechanical and chemical resistance thanks to special surface sealing (coating)
Compliant with DIN EN60601-1-2-2006 (Directive 93/42/EEC, Annex IX)
• Can be completely cleaned and disinfected
• Robust, durable silicone material
Product data:
Number of keys: 104
Switching technology: carbon contacts
Actuation force: 1.5 N
Actuation force (Num): 1.1 N
Key travel: 1.4 mm
Service life: 2 million actuations (per key)
Protection class (max): IP68
Material (housing): silicone rubber
Material (base plate): plastic
Housing colour: grey, black
Interfaces: PS/2; USB (USB 2.0 compatible)
Operating temperature: 0 °C to +60 °C
Storage temperature: -20 °C to +70 °C
Weight: 735 g
Dimensions: 340 x 165 x 16.3 mm
Certifications: CE, FCC
TECHNICAL DATA TOUCHPAD
Operating principle: capacitive
Resolution: 100 - 300 dpi
Active area: 59 x 42 mm
TECHNICAL DATA VESA SOCKETS
Thread: M5
Material: 1.5 mm steel
Recommended tightening torque: 3.60 Nm
Resistance to twisting: 8.47 Nm
Pull-out force: 3110 N
Other layouts available on request!
