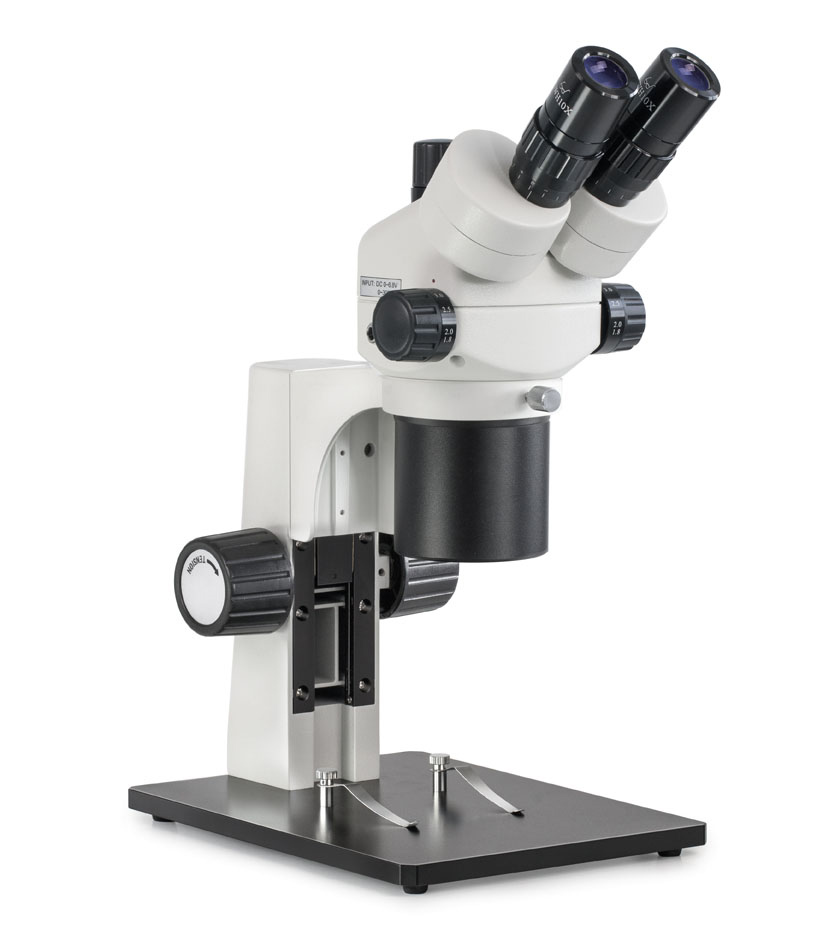

KERN Coaxial microscope OZC-5 Trinocular

The coaxial microscope with parallel optics for excellent contrast and depth of field

- The KERN OZC-5 series has been specially developed for applications requiring high contrast and depth of field. These instruments are indispensable, particularly in the LCD/LED electronics industry
- The coaxial 2W LED reflected-light illumination integrated in the objective ensures pinpoint depth of field, allowing even recessed areas (e.g. the bottom of a bore hole) to be captured[/]
- Parallel optics is the highest-quality optical system and delivers excellent images with superb contrast, colour and depth of field for fatigue-free working. Refocusing during zoom magnification is also only required to a very small extent
- The large adjustable magnification range from 18x to 65x enables continuous zooming during your work
- The models in the KERN OZC-5 series are supplied as standard in a trinocular version and are therefore prepared for connecting a camera for documentation and quality reports
- The mechanical stand allows precise adjustment and focusing of your specimen. The base is particularly heavy-duty and therefore offers a high level of stability and secure footing[/]
- A large selection of eyepieces and a mechanical stage attachment are available as accessories
- A dust cover, eyecups and a multilingual operating manual are included in the scope of delivery
- A C-mount adapter is required for connecting a camera; please select it from the following model configuration list

Field of application:
LCD/LED electronics, semiconductor technology

Applications/specimens:
Specimens with a focus on spatial impression (depth, thickness), zoom for variable magnification, e.g. LCD/LED electronics, circuit boards, ICs

Technical data
- Optical system: parallel optics
- Dimmable illumination 2W LED (coaxial) (reflected)
- Tube inclined at 45°
- Magnification ratio: 3.6:1
- Beam path distribution 50:50
- Interpupillary distance: 52.0–76.0 mm
- Objective zoom: 1.8x - 6.5x
- Dioptre adjustment on both sides
- Overall dimensions W×D×H 305×180×405 mm
- Net weight approx. 11.33 kg
