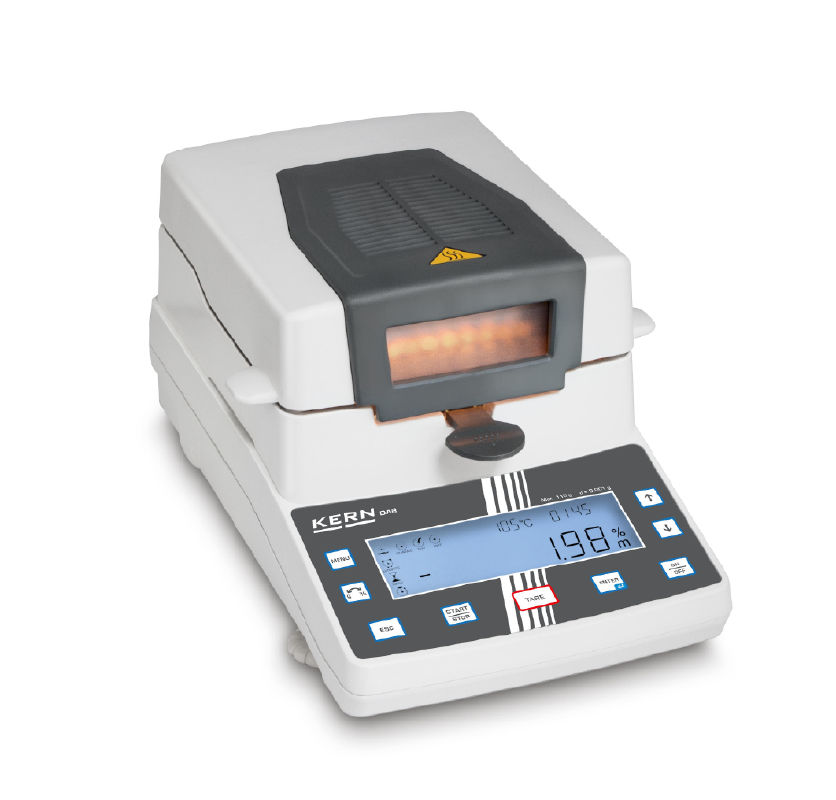

KERN Moisture analyzer DAB 200-2

- NEW: KERN DAB 200-2! Version with lower resolution, meaning the switch-off criterion is reached faster, saving time. Ideally suited for rapid tests and spot checks
- Backlit LCD display, digit height 14 mm

1 Drying process active
6 Active heating profile
3 Active switch-off criterion
4 Previous drying time
5 Current temperature
5 Current moisture content in %

- Halogen quartz glass heater 400 W
- Viewing window for the sample, very helpful during initial set-up
- Internal balance memory for the automatic sequence of 15 drying programmes and 5 completed drying processes
- The last measured value remains displayed until it is overwritten by a new measurement
- 50 sample dishes included
Application manual: On the Internet you will find a practical application manual for each KERN moisture analyser with many examples, user reports, settings and tips

Product data:

Design:
Rotating levelling feet: yes
Overall dimensions, fully assembled (W×D×H): 240 mm x 365 mm x 180 mm
Spirit level: yes
Material of weighing plate: aluminium dishes
Weighing pan size (d): 92 mm

Measuring system:
Readability (moisture): 0.050%
Readability [d]: 10 mg
Warm-up time: 30 min
Resolution: 20000
Off-centre load at 1/3 Max: 50 mg
Stabilisation time under laboratory conditions: 3 s
Adjustment options: adjustment with external weight
Linearity: 30 mg
Measuring range [Max]: 199 °C
Minimum weight (USP): 20 g
Repeatability: 10 mg
Tare range: 200 g
Weighing range [Max]: 200 g
Weighing units: % moisture % dry mass g
Weighing system: strain gauge
