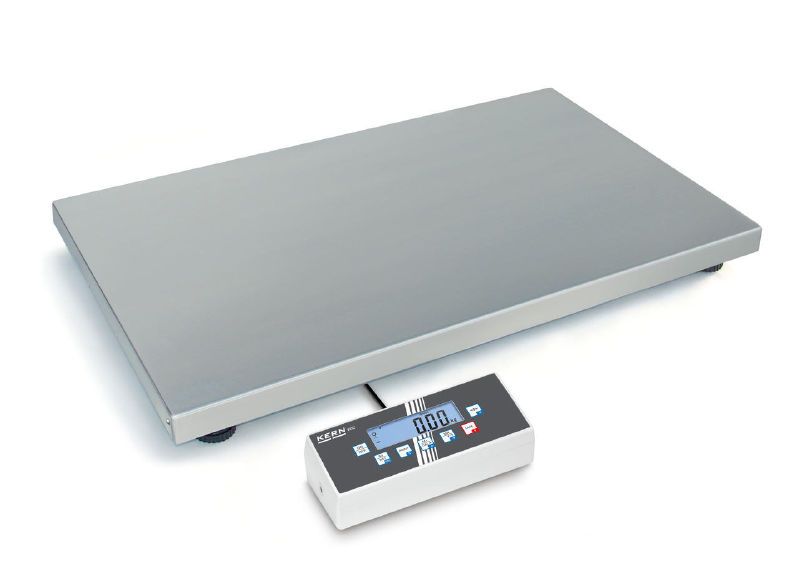

KERN Robust and high-resolution platform scale EOC 100K-2XXL

- High mobility thanks to compact, low-profile design; suitable for use at multiple locations (laboratory, quality control, order picking, etc.)
- Platform: stainless steel weighing plate, painted steel base frame, silicone-coated aluminium load cell, dust and splash-water protection IP65
- Spirit level and levelling feet for precise levelling of the scale as standard, ensuring maximum weighing accuracy
- Percentage determination: enables weighing-in to a preset value (100%) and determining deviations from this target value
- Checkweighing (weighing with tolerance range): an optical and acoustic signal supports portioning, dosing or sorting
- Hold function: under unstable weighing conditions, a stable weight value is calculated by averaging
- Table stand incl. wall mounting bracket for the display unit as standard
- Weigh instead of count! The easy-to-use counting function enables quick recording of large quantities of small parts – saving time and costs!
- Querying and remote control of the scale via external control devices or computer using the KERN Communication Protocol (KCP). KCP is a standardised set of interface commands for KERN scales and other instruments, enabling retrieval and control of all relevant parameters and device functions. KERN devices with KCP can therefore be easily connected to computers, industrial control systems and other digital systems. The KCP protocol is largely compatible with the MT-SICS protocol. Only possible via RS-232 data interface; other interfaces available on request
- Protective cover included in the scope of delivery

Product data:

Design
Dimensions of display unit (W×D×H): 268 mm x 115 mm x 80 mm
Dimensions of weighing plate (W×D×H): 950 mm x 500 mm x 60 mm
Rotating levelling feet: yes
Cable length for display unit: 2.700 m
Spirit level: yes
Material of weighing plate: stainless steel
Stand height: 33 cm
Wall mounting bracket: yes
Weighing surface (W×D): 950 mm x 550 mm

Functions
Vibration-free weighing (animal weighing programme): yes
Percentage determination: yes
Checkweighing (weighing with tolerance range): yes
Counting function: yes

Measuring system
Readability [d]: 20 g / 50 g
Warm-up time: 10 min / 10 min
Resolution: 3 3,000
Eccentric load at 1/3 Max: 100 g / 250 g
Stabilisation time under laboratory conditions: 2 s
Recommended adjustment weight: 150 kg (M1)
Adjustment options: adjustment with external weight
Linearity (in points): 3
Linearity: 60 g / 150 g
Repeatability: 20 g / 50 g
Tare range: -150 kg
Weighing capacity [Max]: 60 kg / 150 kg
Weighing units: g kg lb oz
