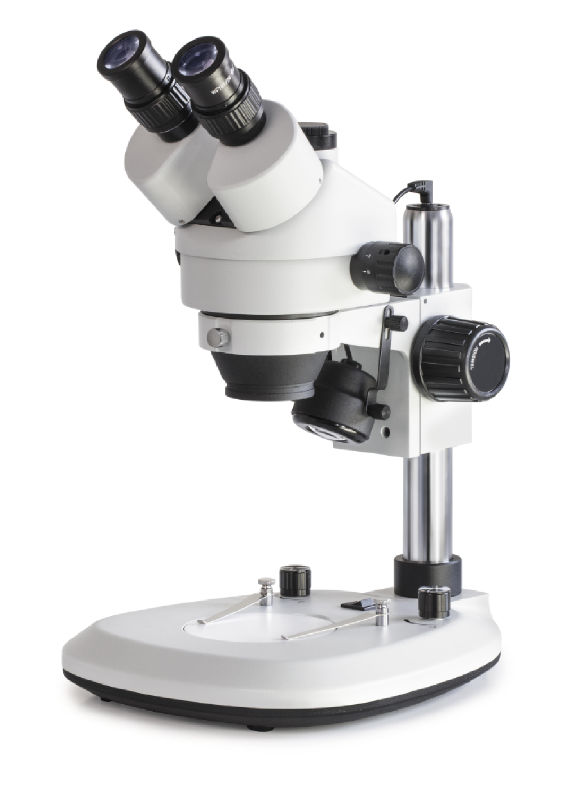

KERN Stereo zoom microscope OZL-46

The flexible, affordable all-rounder with zoom function for schools, training workshops, testing centres and laboratories

- The KERN OZL-46 series is part of the stereo zoom microscopes that impress with their quality, ease of use, flexibility, stability and favourable price
- The LED incident and transmitted illumination included as standard ensures optimal lighting of your sample
- A highlight of the KERN OZL 465/OZL 466 is the powerful integrated LED ring light in the objective housing, continuously dimmable, which provides uniform, shadow-free illumination. In addition, an LED transmitted-light unit is included
- In addition to the good optical properties, these models offer maximum comfort in this class thanks to their large working surface – ideal for training facilities, workshops as well as assembly and repair workstations, e.g. in the electronics industry
- The zoom objective enables continuous magnification from 7×–45×
- The KERN OZL-46 series is available in binocular or trinocular versions
- The pillar stand offers maximum flexibility and the freedom to remove the microscope head and integrate it into other modular systems, such as a universal stand
- A wide selection of eyepieces, external illumination units and auxiliary objectives are available as accessories
- A dust cover, eyecups and a multilingual operating manual are included in the scope of delivery
- A C-mount adapter is required to connect a camera to the trinocular version

Field of application:
In vitro fertilisation, detection of parasites, zoology and botany, tissue preparation, dissection, quality control

Applications/samples:
Specimens with a focus on spatial impression, zoom with variable magnification (depth, thickness) e.g. insects, seeds, circuit boards, components

Technical data

- Optical system: Greenough optics
- Illumination independently dimmable
- Tube inclined at 45°
- Magnification ratio: 6.4:1
- Beam splitter distribution 50:50
- Interpupillary distance: 55.0–75.0 mm
- Dioptre adjustment on both sides
- Overall dimensions W×D×H 300×240×420 mm
- Net weight approx. 4.085 kg
- Zoom objective: 0.7 x - 4.5 x
- Illumination: 3W LED (transmitted), 3W LED (reflected)
