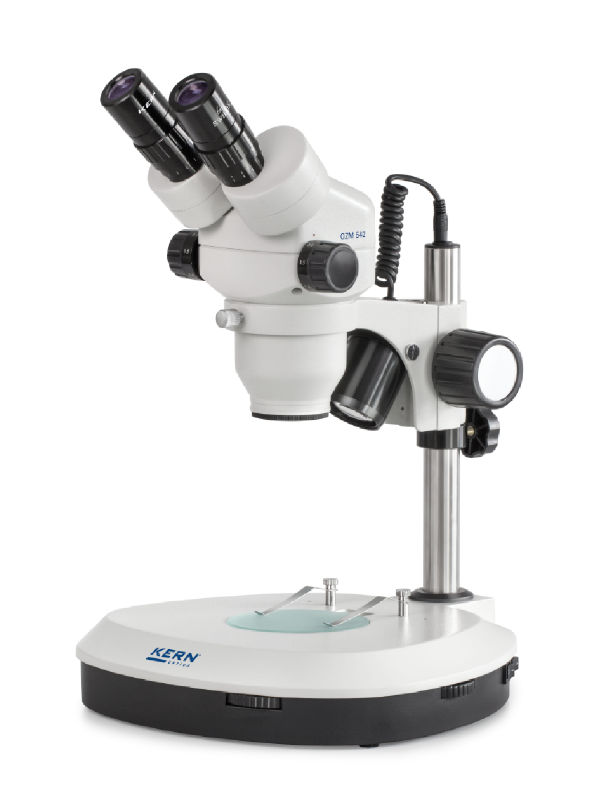

KERN Stereo zoom microscope OZM-5

Premium appearance and powerful illumination combined with high flexibility

- KERN includes outstanding stereo zoom microscopes with above-average optical performance
- The ergonomic design allows effortless, comfortable work over several hours
- The exceptionally powerful 3W LED incident and transmitted light illumination, continuously dimmable, ensures particularly good and flexible illumination of your specimen
- In addition to a large working distance, an extra-large field of view and brilliant resolution, the KERN OZM-5 delivers true-colour, high-contrast images with excellent depth of field
- The zoom objective enables continuous magnification from 7.5x to 45x
- You can choose between a binocular model and a trinocular model for connecting a camera for documentation and quality reports
- The column stand is particularly flexible thanks to its variable and robust adjustment mechanism, enabling ergonomic work
- A wide range of eyepieces, (universal) stands, a dark-field insert, external illuminations as well as auxiliary objectives and more are available as accessories
- A dust cover, eyecups and a multilingual operating manual are included in the scope of delivery
- A C-mount adapter is required to connect a camera to the trinocular version

Areas of application

In vitro fertilisation, detection of parasites, zoology and botany, tissue preparation, dissection, quality control, electronics and semiconductor industry, assembly and repair

Applications/specimens:
Specimens with a focus on a three-dimensional impression, zoom with variable magnification (depth, thickness), e.g. insects, seeds, circuit boards, components

Technical data:
Optical system: Greenough optics
Illumination independently dimmable
Illumination: 3W LED (transmitted), 3W LED (reflected)
Eyepiece: HSWF 10× Ø 23.0 mm
Field of view: Ø 32.8 mm - 5.1 mm
Objective zoom: 0.7x - 4.5x
Tube inclined at 45°
Zoom ratio: 6.4:1
Beam path distribution: 50:50
Interpupillary distance: 52.0–76.0 mm
Dioptre adjustment on both sides
Overall dimensions W×D×H 330×285×440 mm
Net weight approx. 4.7516 kg
