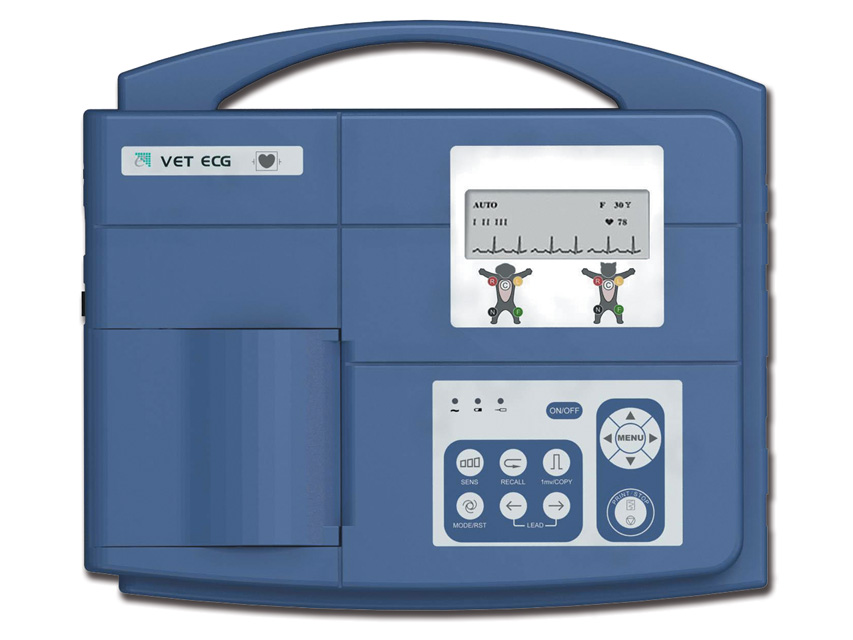

GIMA ECG Ve-100

- Complete digital design
- LCD display waveforms, parameter configuration
- High-resolution thermal printer
- Built-in rechargeable Li-ion battery for 3 hours (AC/DC power supply)
- Fully digital filtering to prevent baseline drift, AC and EMG interference
- Automatic baseline adjustment, optimised print position
- Selectable automatic/manual operation

Technical data:

• Leads: standard 7-lead
• Acquisition mode: single-channel
• Frequency response: 0.05 Hz ~ 150 Hz
• Sensitivity: 2.5, 5, 10, 20 (mm/mV)
• Input impedance: > 10 MΩ
• Filters:
- EMG filter 35 Hz (-3 dB) - AC/DFT filter 50/60 Hz (-20 dB)
• Recording mode: Auto/Manual
• Safety standard: IEC I/CF
• Power supply:
- AC: 100-115-220-240 V, 50/60 Hz
- Built-in rechargeable Li-ion battery: voltage = 14.4 V
- More than 3 hours continuous operation on battery power
• Thermal paper: 5 mm x 30 m
• Paper speed: 25/50 mm/s (±3%)
• Size: 300 x 260 x 75 mm
• Weight: 2.3 kg (with battery)
• Display: 192 x 64 pixel LCD
• External input/output:
- Input: = 100 kΩ; sensitivity: 10 mm/V ± 5%
- Output: = 100 kΩ; sensitivity: 1 mm/V ± 5%
• Communication interface: RS232

Accessories:

• 5-core veterinary ECG cable (Ø 4 mm, banana plug, IEC)
• Veterinary clip electrodes (set of 5, suitable for Ø 3–4 mm ECG cable)
• 1 paper roll
• Rechargeable lithium battery (2,200 mAh)
• Manual: EN, IT - FR, ES, DE available on request
