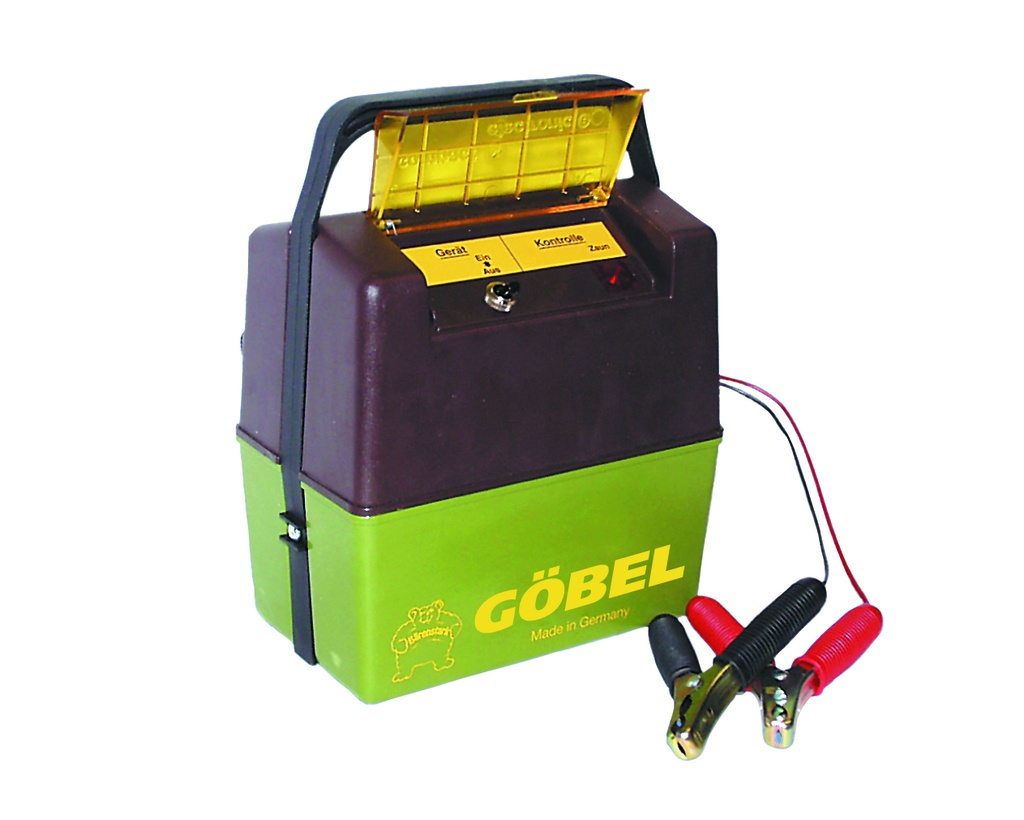

GÖBEL Combination unit compact A 1500 9/12 Volt w/o batt.

Art. no. 11125 (without battery)
cost-effective and powerful
economical
for 9 V and 12 V operation
reliable
insensitive to vegetation
with fence monitoring
with earth stake and mounting stake

Technical data compact A 1500
Operating voltage: 9 V 12 V
No-load voltage: approx. 6500 V approx. 8800 V
Voltage on animal contact: approx. 2500 V approx. 3200 V
Voltage at 500 ohms (short circuit): approx. 1100 V approx. 1500 V
Pulse energy: approx. 0.25 J approx. 0.50 J
Power consumption: approx. 16 mA approx. 30 mA
Max. fence length (CEE): approx. 6 km approx. 8 km
Recommended fence length (depending on vegetation): approx. 2–4 km approx. 5–8 km

Recommended application:
The compact A1500 is a universal unit for almost all applications where low to medium output is required: it is suitable for use on horse paddocks and rotational grazing as well as around the farm and in the garden.
Operated on 12 V, its high impact strength and high output voltage allow operation on some sheep nets. The option of using either a 9 V dry-cell battery or a 12 V rechargeable battery as the power source, together with the low price, makes it particularly economical from a business point of view.
