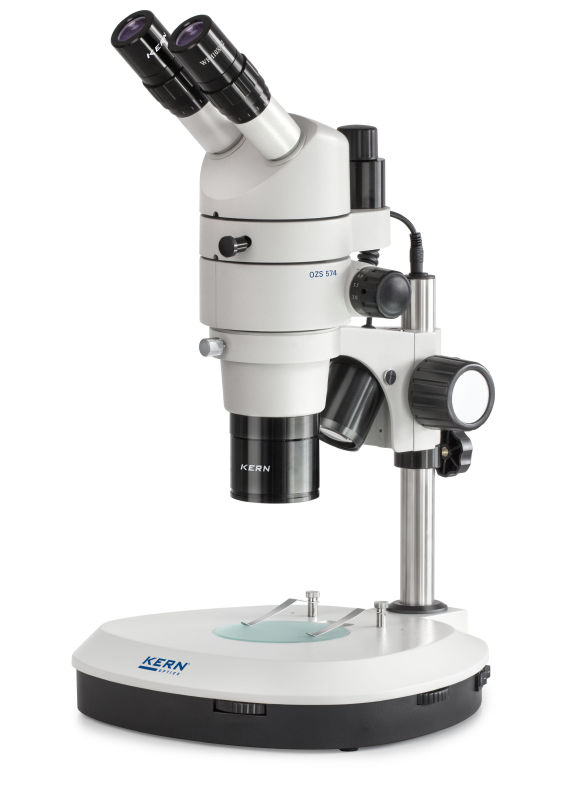

KERN Stereo zoom microscope OZS-5 3W LED (transmitted), 3W LED (reflected)

High-quality parallel optics for outstanding images, depth of field and contrast – with an extra-large zoom range

- The devices in the KERN OZS-5 series are special, very high-quality stereo zoom microscopes with parallel optics and an above-average zoom range for your demanding analyses
- The KERN OZS-5 series is available either as a powerful, continuously adjustable 3 W LED incident and transmitted light version for optimum, high-contrast illumination of your specimen, or as a version without illumination
- Parallel optics are the highest-quality optical system and provide excellent images with outstanding contrast, colour and depth of field, enabling fatigue-free work. Refocusing when changing zoom magnification is only required to a very small extent
- The above-average, adjustable magnification range from 8× to 80× allows continuous zooming for your desired views
- The models in the KERN OZS-5 series are supplied as standard in a trinocular version and are therefore prepared for connecting a camera for documentation and quality reports
- Thanks to the modular design, the column stand, and the optionally integrated, powerful and long-lasting LED incident and transmitted light, these models are particularly flexible
- A wide range of eyepieces, (universal) stands, a dark-field insert, external illuminations, auxiliary objectives and more are available as accessories
- A dust cover, eyecups, and multilingual operating instructions are included in the scope of delivery


Area of application:
In vitro fertilisation, detection of parasites, zoology and botany, dissection, quality control, electronics and semiconductor industry, assembly and repair

Applications/specimens:
Preparations with a focus on a three-dimensional impression, zoom with variable magnification (depth, thickness), e.g. insects, seeds, circuit boards, components

Technical data:
Optical system: Parallel optics
Illumination independently dimmable
Tube inclined at 45° (trinocular)
Eyepiece: HWF 10× Ø 22.0 mm
Field of view: Ø 27.5 mm - 2.8 mm
Objective zoom: 0.8× - 8×
Stand: column
Magnification ratio: 10:1
Beam path distribution 50:50
Interpupillary distance: 52.0–76.0 mm
Dioptre adjustment on both sides
Overall dimensions W×D×H 305×300×510 mm
Net weight approx. 5.7337 kg
