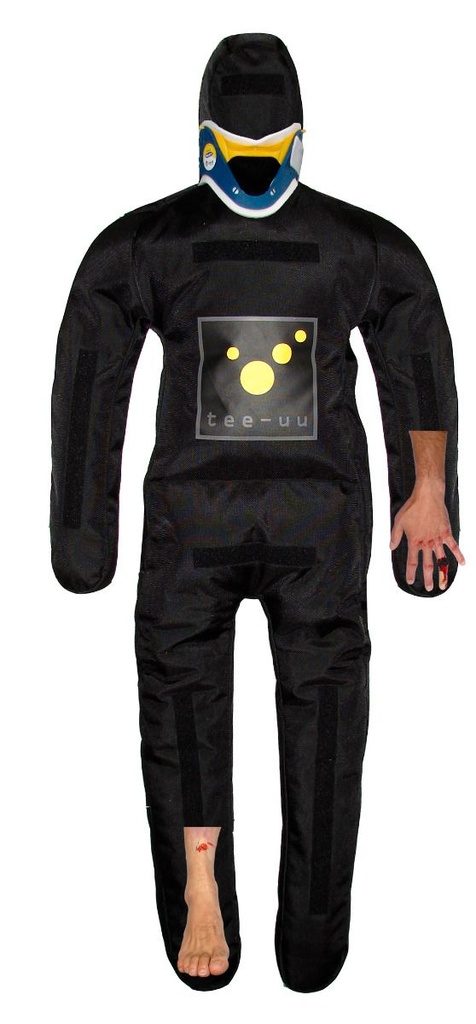

TEE-UU Training dummy

The CRASH & CARRY training dummy is perfect for planning and running exercises for fire services, ambulance services and the Federal Agency for Technical Relief (THW).
Anyone who has ever prepared an exercise knows the problem: having to carry a training dummy on your own is almost impossible, or at least involves a sweat-inducing feat of strength.
This is where the CRASH & CARRY training dummy from TEE-UU shows its trump card: the integrated, stowable transport system allows the dummy to be carried easily like a rucksack. Using two adjustable straps and robust metal buckles, the legs can also be secured to the dummy’s shoulder during transport. If you are in a pair, the training dummy can be carried like a travel bag using the two straps.

Variable casualty scenarios:
There are hook-and-loop (Velcro) loop panels on both sides of the head, torso and extremities of the training dummy for attaching injury patterns. A download link for the corresponding images is included in the scope of delivery. Alternatively, ready-to-use laminated injury pattern cards fitted with hook-and-loop strips can be ordered as accessories (item no. 1121-0000).

The design of the neck and head area is also suitable for applying a cervical collar or for practising motorcycle helmet removal.
For search exercises with a thermal imaging camera, self-adhesive THERMO-PADs (item no. 1120-0000) are also available. Once activated, the THERMO-PADs provide a heat source sufficient for at least 4 hours.
The 170 cm CRASH & CARRY training dummy is filled by the user via a zip, individually up to a weight of 40 kg. A total weight of 25–35 kg is sufficient for a realistic exercise scenario and does not place unnecessary strain on responders.

Tip for filling the training dummy:
For filling, we recommend, for example, fabric offcuts or old clothing, such as heavy denim. By adding weights or stones individually wrapped in rags, the weight can be increased locally and as required.

Material information:
The 1680D TEC polyester fabric used for the CRASH & CARRY training dummy with a 2 mm HighDurable PVC inner coating ensures a long service life when handled in a “patient-appropriate” manner.

Features:
14 hook-and-loop loop panels for attaching injury patterns
Neck area and head suitable for applying a cervical collar
integrated, stowable rucksack carrying system (load capacity up to approx. 40 kg)
reinforced seams
abrasion-resistant fabric
internal dividers to secure the filling

Product data:

Colour: black
Weight: approx. 2,000 g
Dimensions (W x H x D): 70 x 170 x 22 cm
Material: 1680D TEC polyester with 2 mm HighDurable PVC inner coating
