Diagnostics

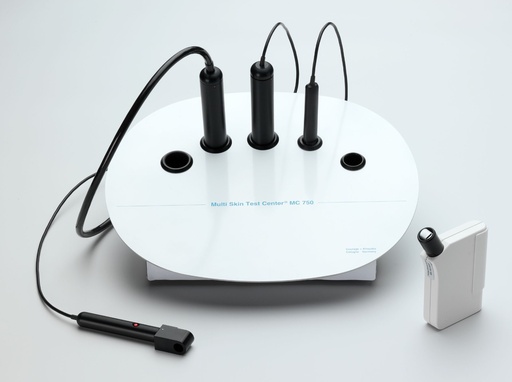

Multifunctional device with an attractive design, equipped to measure moisture, sebum, melanin and elasticity (suction principle) and with a Visioscope® PC 35 USB skin camera. Incl. “CSI – Complete Skin Investigation” software, which displays the measured values, analyses the camera images and enables a recommendation of skin, hair and sun care products, and accessories. Probes incl.

Easy assembly of your own skin analysis device

The basic system consists of:

Measurement of skin hydration
Measurement of sebum content on skin and hair

Other probes can be connected optionally: measurement of the viscoelastic properties of the skin (biological skin age) by suction using negative pressure from the device (the skin’s ability to resist suction vs. its ability to return to its original state after the negative pressure is released, in %). As the elasticity measurement requires a vacuum pump in the device, it cannot be added to the system at a later date and must be included in the base unit.

Also: measurement of pigmentation (melanin) and redness (erythema), skin temperature measurement, TEWL index (quality of the skin’s barrier function), pH measurement and measurement of hair colour


Technical data:

Device: Dimensions: 33 x 28 x 11 cm, weight: Model A: approx. 2.4 kg, Model B: approx. 2.9 kg, external power supply: 100–240 VAC/12VDC, port: USB 2.0, type B socket

Moisture: measuring principle: capacitance, time: 1 sec., display: 0–99, frequency: 0.9–1.2 MHz, length: 11 cm, weight: 41 g, cable length: 1.3 m

Sebum: photometric measurement, time: 10 seconds, display: 0–99, dimensions: 8.5 x 11.3 x 2.3 cm, weight: 65 g, number of measurements per cassette: approx. 400 (the side slider releases a new measuring strip each time). When used up, the cassette must be replaced

Optional probes:

Elasticity: measurement by suction with 400 mbar negative pressure, time: 6 seconds (3 seconds suction and 3 seconds relaxation), display: 0–99, probe opening: 2 mm Ø, dimensions: 13 cm x Ø 2.4 cm, weight: 95 g, cable length: 1.3 m

Melanin/pigmentation: measurement: absorption/reflection, wavelengths: 568, 660 and 880 nm, measuring time: 1 second, display: 0–99, dimensions: 13 cm x Ø 2.4 cm, weight: 85 g, cable length: 1.3 m

pH: measuring range: pH 0 to pH 11, resolution: 0.1 pH, length: 22.8 cm, weight: 130 g, cable length: 1.3 m

TEWL index: “open-chamber measurement”, measuring time: 15 seconds, units: index values: 0–20, length: approx. 12 cm, weight: approx. 40 g, cable length: 1.3 m

Temperature: measuring principle: infrared, resolution: 0.1 °C, dimensions: 13.5 x Ø 2.4 cm, weight: approx. 68 g, cable length: 1.3 m

Colour measurement: measuring principle: reflection, measuring area: 8 mm Ø, measuring time: 1 sec., scale: L*a*b, dimensions: 13 x Ø 2.4 cm, weight: approx. 68 g, cable length: 1.3 m

Visioscope® PC 35 USB skin camera (for direct connection to the computer)

Sebufix® F 16: milky film for qualitative sebum determination, dimensions: 1.7 x 1.7 cm, thickness: 0.2 mm

Corneofix® F 20: transparent adhesive film for determining desquamation, dimensions: 2.00 x 1.95 cm, thickness: 0.1 mm

Films are absolutely harmless to the skin

Computer: Windows® 7/8/10, must meet system requirements, USB 2.0/3.0

Subject to technical changes.kin Test Center MC 750

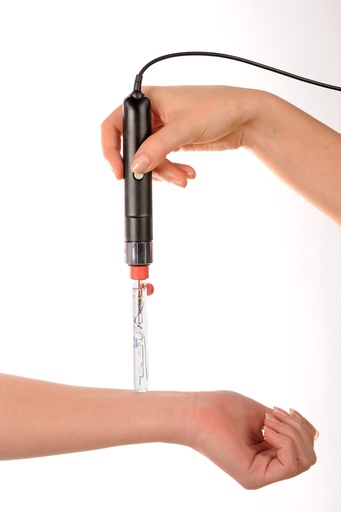

The Skin-pH-Meter PH 905 is a cost-effective probe for fast and easy pH measurement specifically for skin and scalp.

Technical data

Measuring principle

Measurement is carried out using a high-quality combined glass electrode that combines the H+ ion-sensitive electrode and the reference electrode in a single glass rod. This is connected to a probe handle containing the pH electrode and the measuring electronics.

back

Advantages of the Skin-pH-Meter

The probe’s modern, high-quality electronics allow extremely fast and reliable measurement (1 second) without causing occlusion at the measurement site on the skin.
The flat probe head allows the probe to sit perfectly on the skin.
Single and continuous measurement possible.
pH value is displayed with one decimal place.
The probe can be easily recalibrated by the user.
A globally established device, supported by a large number of studies.

Fields of application:

Changes in the skin’s pH value play an important role in many areas. Hair washingl

In pharmaceutical and cosmetic development and in the formulation of household products (skin care, hair care, cleaners and detergents, pharmaceuticals, etc.)
In basic dermatological research.
pH measurement plays a role in occupational medicine to demonstrate the need to use skin protection products.
back

The Skin-pH-Meter 905 is available as a standalone device, as part of the combined device Derma Unit SSC 3, for connection to the MPA systems, or as a wireless probe.

Technical data

Probe only:

Dimensions: 22.8 cm, cable length: approx. 1.3 m, measuring surface: Ø 1 cm, flat contact, weight: 130 g

Measuring range: pH 0 to pH 11, accuracy: ± pH 0.1

Dimensions of the wireless radio probe: see technical data of the base systems

Subject to technical changes.

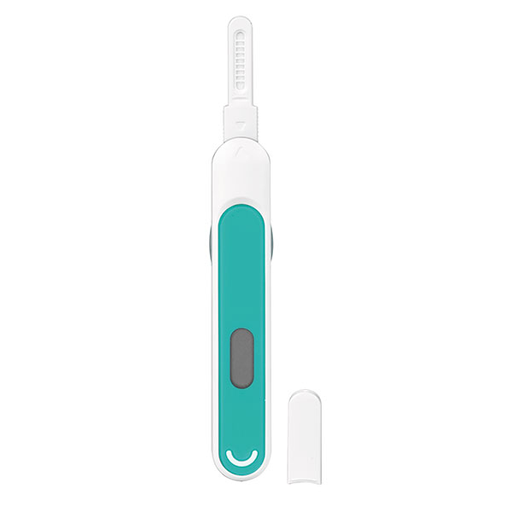

The digital ovulation test for professional and home use
More reliable than keeping a cycle calendar and also than taking your temperature every morning, this digital ovulation test supports you in family planning. You receive the test result after 3 minutes with a clear YES/NO display and 99% accuracy.

You can get the test either in a pack with 7 tests + reader or with 20 tests + reader.

These are your benefits when you choose this test:

99% reliability
Test result within 3 minutes with a clear display
The result remains on the display for 5 minutes
The reader is reusable
Storage: 2°C – 30°C

Detection limit from 25 mIU/l LH

Many women are familiar with the stress of trying to conceive in a targeted way, especially when the biological clock also comes into play. This stress can have a significant impact on success. With the Clear & Simple Digital Ovulation Test, we provide you with valuable support. To carry out the test, you need to know the length of your cycle in order to detect the rise in the fertility hormone (LH) with the help of the test. This significantly increases the chance of natural fertilisation. You should always carry out the test at the same time of day, ideally using morning urine.

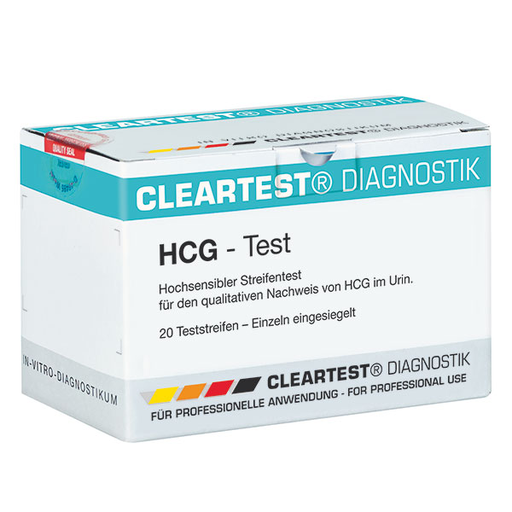

INDIVIDUALLY SEALED

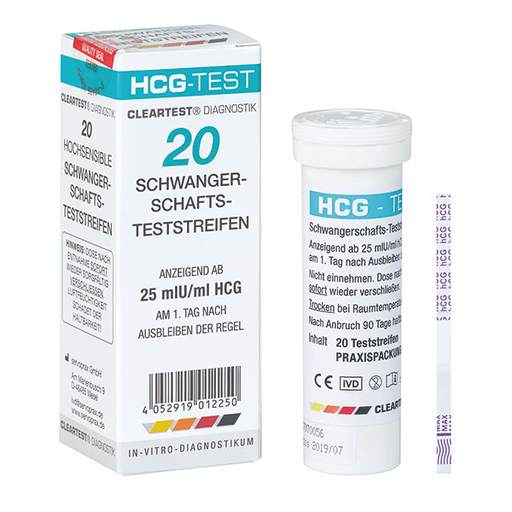

Highly sensitive strip test:

Indicates from 25 mIU/ml HCG in urine

Result from the 1st day after a missed period

With built-in quality control

Particularly good value

Minimal packaging, environmentally friendly, very easy and quick to use

Strip format (4 mm), particularly handy

In a secure aluminium pouch, individually packaged

Can be read after 3–5 minutes

Sample material: urine

Reading the result is that easy:

Dip the CLEARTEST® strip test into urine up to the marking and read after 3–5 minutes.

Storage at 2–30 °C

WARNING: Sale only to medical device resellers, doctors and authorities! Test for professional use only!

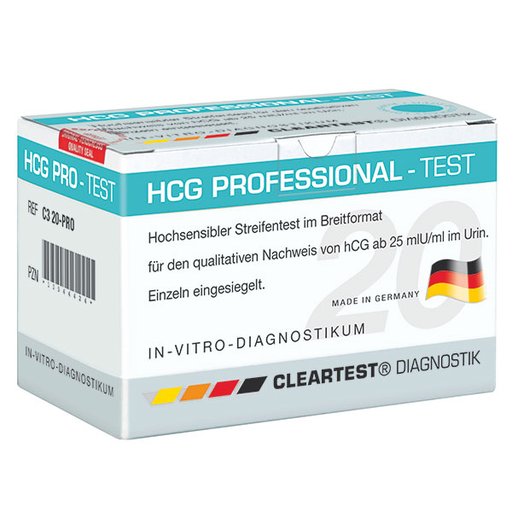

Made in Germany! LANDSCAPE FORMAT, INDIVIDUALLY SEALED

Highly sensitive strip test:

Clearly indicates from 25 mIU/ml hCG in urine

Result as early as day 1 after a missed period

With integrated quality control

Additional external control available

Minimal packaging, environmentally friendly, very easy and quick to use

Large and wide strip format (5 mm), particularly easy to handle, sturdy

Can be read after 3–5 minutes

Sample material: urine

Reading the result is that easy:

Dip the CLEARTEST® strip test into urine up to the mark for 10 seconds and read after 3–5 minutes.

Storage at 2–30 °C

WARNING: Sale only to medical device resellers, doctors and authorities! Test for professional use only!

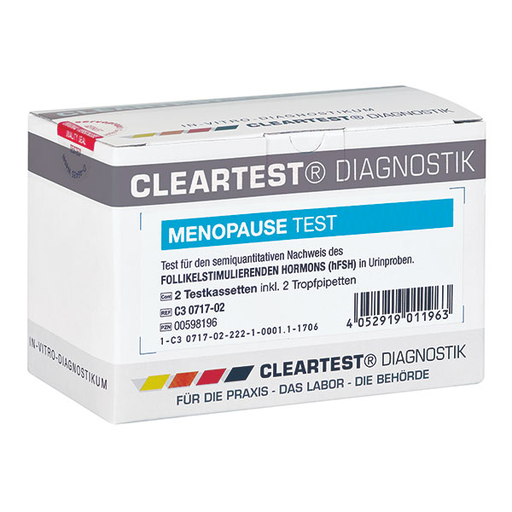

Test for the semi-quantitative detection of follicle-stimulating hormone (hFSH) in urine samples. For professional in vitro diagnostics use only.

Read result after 3–5 minutes.

Store at 2–30 °C.

WARNING: Sale only to medical device resellers, physicians and authorities! Test for professional use only!

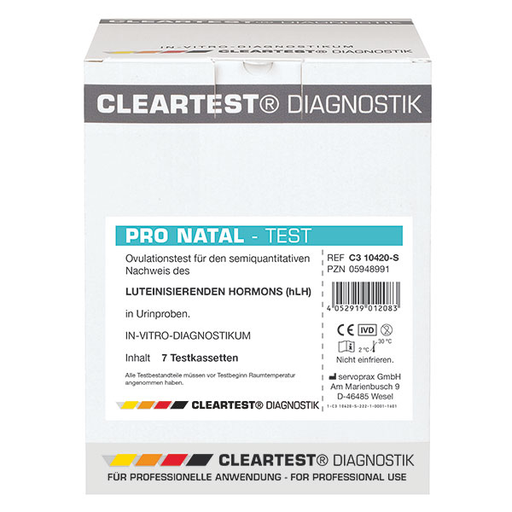

Detection test for the qualitative detection of luteinising hormone (hLH) in urine to determine a woman’s fertile days. For professional in vitro diagnostics.

Simply apply a few drops of urine to the sample area and the test indicates whether ovulation will occur within the next 24–36 hours.

Supplied incl. 7 urine cups.

Read after 5 minutes.

Store at 2–30 °C.

WARNING: Sale only to medical device resellers, physicians and authorities! Test for professional use only!

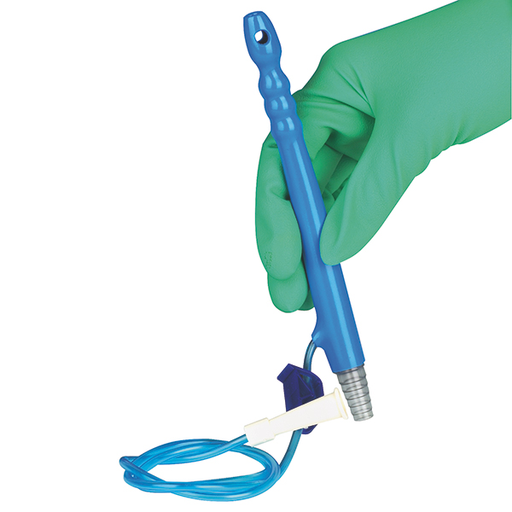

Suitable for intestinal tubes and air hoses, incl. adapter with a thin tip.

Made from particularly flexible plastic, with internal air supply and a clamp on the air hose.

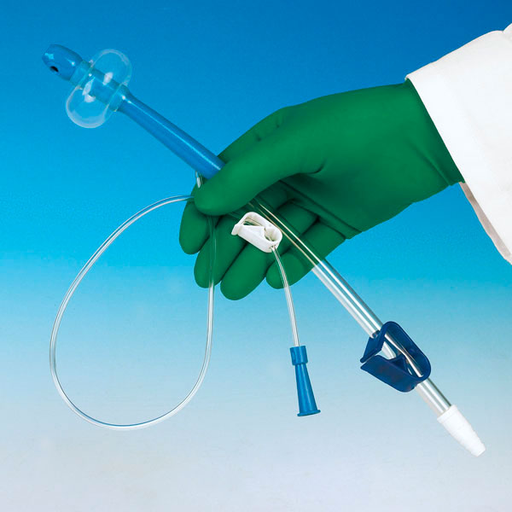

Short version, internal air supply, with silicone balloon, with catheter connector and clamp on the air line.

with extension

With a close-fitting silicone balloon and internal air supply, incl. hose extension for double-contrast enema, with clamp, flexible. Incl. clamp valve on the air supply. Now with large adapter for blower!

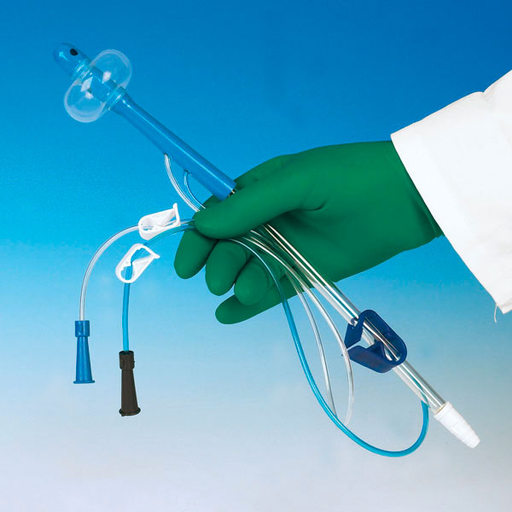

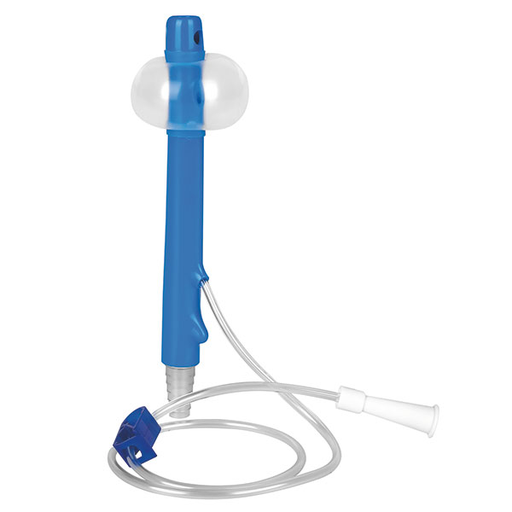

Flexible rectal tube with silicone slimline balloon and internal air supply
With 22 cm tube extension and practical one-hand clamp, with close-fitting silicone balloon to ensure easy insertion.

Clamp also on the air supply to achieve a secure seal of the balloon.

Now with large adapter for blower!

It impresses with its large, dimmable light field in daylight quality and excellent colour rendering. Dermatologists and veterinarians can look forward to the powerful Wood’s light, which is available in addition to the daylight mode.

Unique: large magnifier diameter
Economical: long-lasting, rechargeable battery
Optimal: 1.7x magnification and very good colour rendering
Comfortable: bright, dimmable light field in daylight quality
Powerful Wood’s light: no darkening of the room required, ideal for detecting parasites or skin changes

Technical data:

Light output: 8,000 lux @ 0.15 m

Colour temperature: 6,500 K / Wood’s light

Illuminated field @ 1.0 m: Ø 16 cm

Colour rendering index: Ra 95

Operation: membrane keypad on the handle

Tested safety: EN 60601-1, EN 6601-2-41

Weight: 0.5 kg

In a practical dispenser box.

With silicone coating, smooth-gliding for almost pain-free acupuncture.

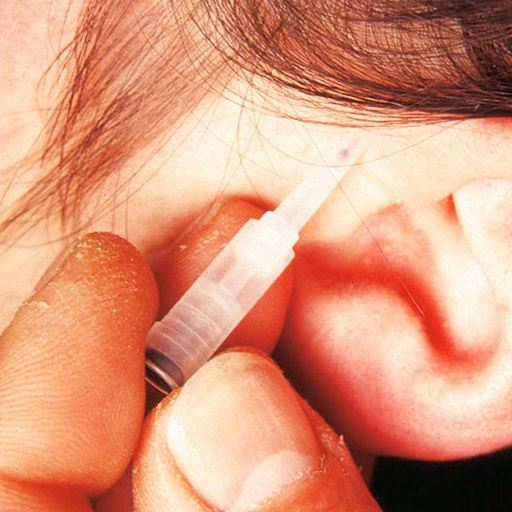

Ear acupuncture needles ASP
Sterile ear acupuncture needles incl. adhesive strips.
