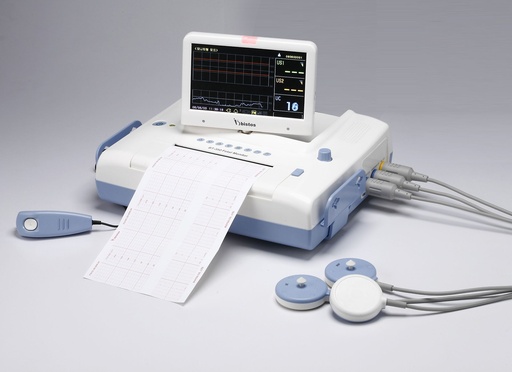

Specialized Diagnostics

- Display of heart rate 1 and 2 as well as uterine contraction (external monitoring)
- Separate recording of fetal movement (Fetal Movement)
- Integrated antepartum CTG analysis
- Adjustable print speed: 10, 20 or 30 mm/min
- 12-hour data memory and volume control
- Documentation of system data on the printout
- 10 function keys for using 16 different functions
- Manual paper feed
- Comment function during CTG recording

Including accessory set:
- 2 ultrasound transducers, each with 7 crystals and 1 MHz
- 1 toco transducer for uterine contraction

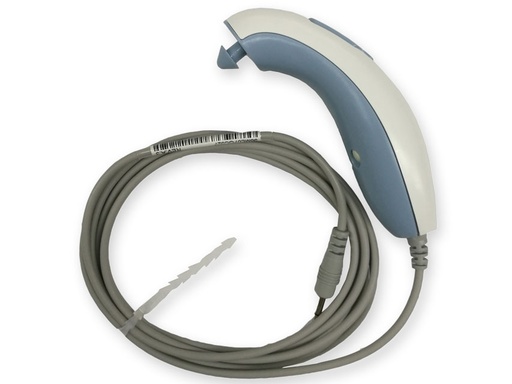

- Electronic event marker
- Belts/straps for securing the transducers
- 2 packs of paper
- Ultrasound gel
- Mains cable and operating instructions

Product data:
- Accurate recording of the heart rate
- Higher sensitivity thanks to 1 MHz probe
- Detection of foetal movement (Fetal Movement)
- Printout in DIN A4 format
- Intuitive operating concept with quick reference guide on the device
- Easy transport thanks to integrated carrying handle

Scope of delivery:
- 1 ultrasound probe with 9 crystals and 1 MHz
- 1 toco probe for uterine contractions
- Electronic event marker
- Straps for securing the probes
- 2 rolls of paper
- Ultrasound gel
- Mains cable
- Operating instructions

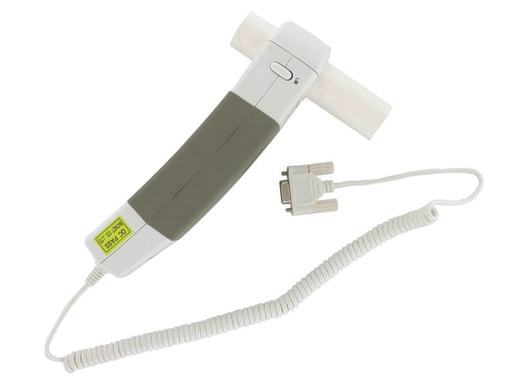

- Printout: time / flow chart
- Report of all measured data and measurement curves
- Display: flow / volume curve
- Graphical display and printout of the complete flow-volume curve
- Measurement parameters: FVC, FEV 1.0, FICV, FEV 1.0, FEF 25 - 75 %, FEF 200 - 1200 ml, FEF 50 % / FIF 50 %, PIF, FET 100 %, SVC, ERV, IRV, TV, MVV, RR, TV
- Measures according to ATS criteria
- Large printout for easy archiving
- Incl. 100 practical disposable mouthpieces with measuring tube
- Incl. ECG accessory set

- Printout of time/flow diagram
- Report of all measurement data and measurement curves
- Display of flow/volume curve
- Graphical display and printout of the complete flow-volume curve
- Measurement parameters: FVC, FEV 1.0, FICV, FEV 1.0, FEF 25 - 75 %, FEF 200 - 1200 ml, FEF 50 % / FIF 50 %, PIF, FET 100 %, SVC, ERV, IRV, TV, MVV, RR, TV
- Measures according to ATS criteria
- Large printout for easy archiving

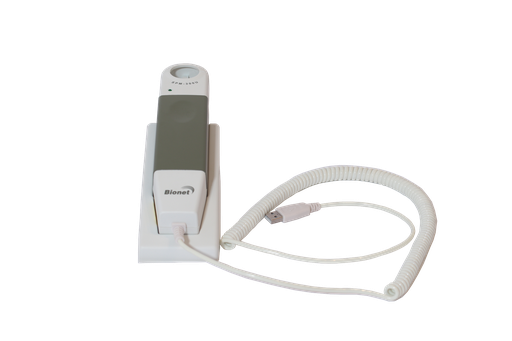

ATTENTION: B-stock - This is only the item shown in the pictures!

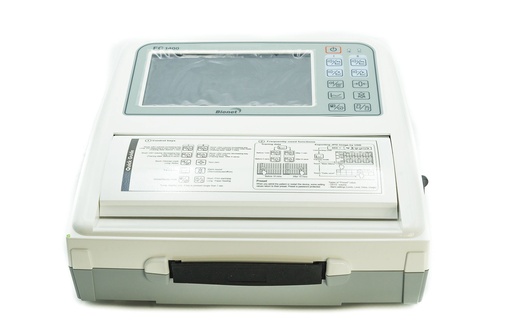

This is a BIONET Toco (UC) transducer for all FC1400 devices.

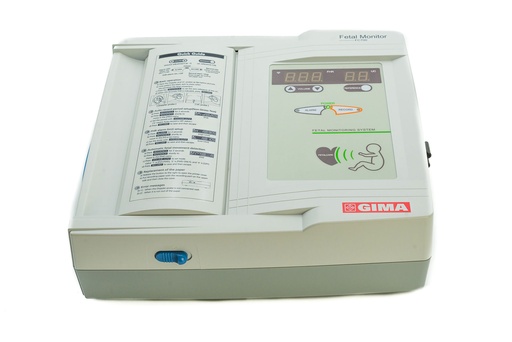

This is a BIONET Toco (UC) transducer for all FC700 devices.

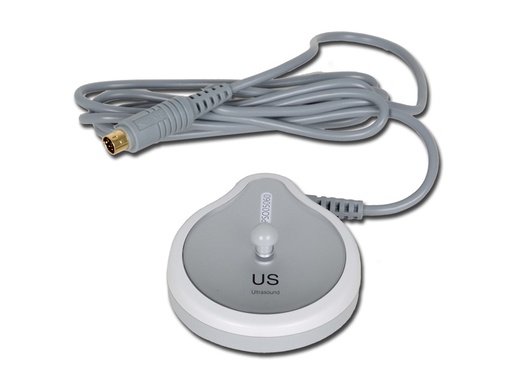

This is a BIONET ultrasound (US) probe for all FC700 devices.

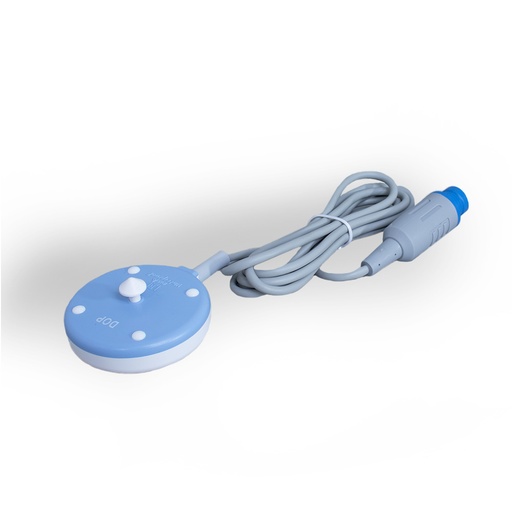

Ultrasound probe DOP probe (blue) for BT-350

without corrugated hose

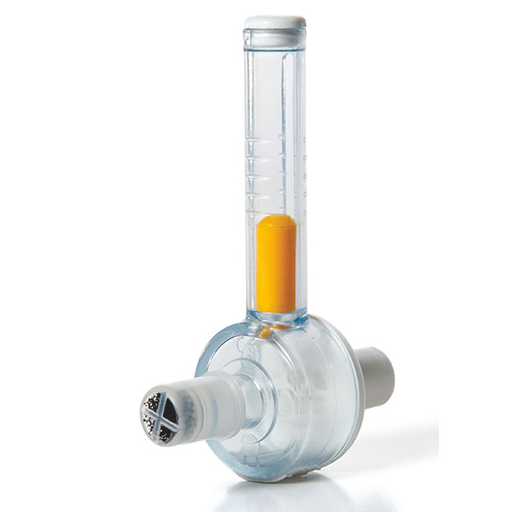

To support breathing exercises during exhalation, this device can only be used in combination with Ca-Mi Pulmo-Gain or Pulmo-Vol. This allows a complete cycle of inhalation and exhalation to be carried out without interruption.

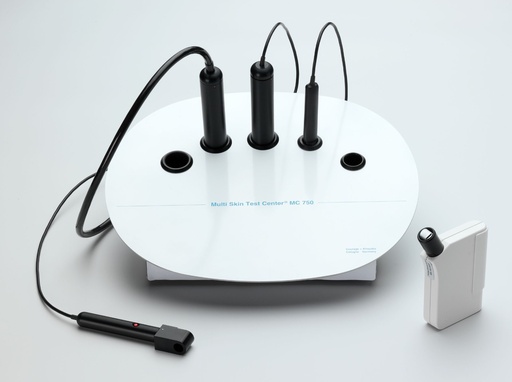

Multifunctional device with an attractive design, equipped to measure moisture, sebum, melanin and elasticity (suction principle) and with a Visioscope® PC 35 USB skin camera. Incl. “CSI – Complete Skin Investigation” software, which displays the measured values, analyses the camera images and enables a recommendation of skin, hair and sun care products, and accessories. Probes incl.

Easy assembly of your own skin analysis device

The basic system consists of:

Measurement of skin hydration
Measurement of sebum content on skin and hair

Other probes can be connected optionally: measurement of the viscoelastic properties of the skin (biological skin age) by suction using negative pressure from the device (the skin’s ability to resist suction vs. its ability to return to its original state after the negative pressure is released, in %). As the elasticity measurement requires a vacuum pump in the device, it cannot be added to the system at a later date and must be included in the base unit.

Also: measurement of pigmentation (melanin) and redness (erythema), skin temperature measurement, TEWL index (quality of the skin’s barrier function), pH measurement and measurement of hair colour


Technical data:

Device: Dimensions: 33 x 28 x 11 cm, weight: Model A: approx. 2.4 kg, Model B: approx. 2.9 kg, external power supply: 100–240 VAC/12VDC, port: USB 2.0, type B socket

Moisture: measuring principle: capacitance, time: 1 sec., display: 0–99, frequency: 0.9–1.2 MHz, length: 11 cm, weight: 41 g, cable length: 1.3 m

Sebum: photometric measurement, time: 10 seconds, display: 0–99, dimensions: 8.5 x 11.3 x 2.3 cm, weight: 65 g, number of measurements per cassette: approx. 400 (the side slider releases a new measuring strip each time). When used up, the cassette must be replaced

Optional probes:

Elasticity: measurement by suction with 400 mbar negative pressure, time: 6 seconds (3 seconds suction and 3 seconds relaxation), display: 0–99, probe opening: 2 mm Ø, dimensions: 13 cm x Ø 2.4 cm, weight: 95 g, cable length: 1.3 m

Melanin/pigmentation: measurement: absorption/reflection, wavelengths: 568, 660 and 880 nm, measuring time: 1 second, display: 0–99, dimensions: 13 cm x Ø 2.4 cm, weight: 85 g, cable length: 1.3 m

pH: measuring range: pH 0 to pH 11, resolution: 0.1 pH, length: 22.8 cm, weight: 130 g, cable length: 1.3 m

TEWL index: “open-chamber measurement”, measuring time: 15 seconds, units: index values: 0–20, length: approx. 12 cm, weight: approx. 40 g, cable length: 1.3 m

Temperature: measuring principle: infrared, resolution: 0.1 °C, dimensions: 13.5 x Ø 2.4 cm, weight: approx. 68 g, cable length: 1.3 m

Colour measurement: measuring principle: reflection, measuring area: 8 mm Ø, measuring time: 1 sec., scale: L*a*b, dimensions: 13 x Ø 2.4 cm, weight: approx. 68 g, cable length: 1.3 m

Visioscope® PC 35 USB skin camera (for direct connection to the computer)

Sebufix® F 16: milky film for qualitative sebum determination, dimensions: 1.7 x 1.7 cm, thickness: 0.2 mm

Corneofix® F 20: transparent adhesive film for determining desquamation, dimensions: 2.00 x 1.95 cm, thickness: 0.1 mm

Films are absolutely harmless to the skin

Computer: Windows® 7/8/10, must meet system requirements, USB 2.0/3.0

Subject to technical changes.kin Test Center MC 750

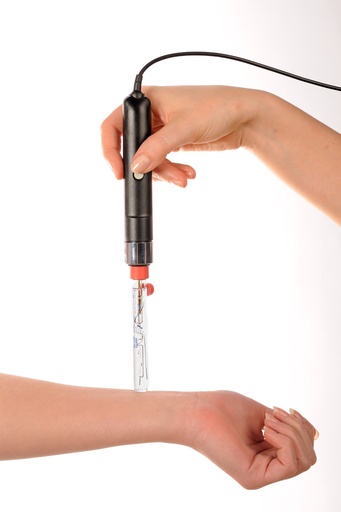

The Skin-pH-Meter PH 905 is a cost-effective probe for fast and easy pH measurement specifically for skin and scalp.

Technical data

Measuring principle

Measurement is carried out using a high-quality combined glass electrode that combines the H+ ion-sensitive electrode and the reference electrode in a single glass rod. This is connected to a probe handle containing the pH electrode and the measuring electronics.

back

Advantages of the Skin-pH-Meter

The probe’s modern, high-quality electronics allow extremely fast and reliable measurement (1 second) without causing occlusion at the measurement site on the skin.
The flat probe head allows the probe to sit perfectly on the skin.
Single and continuous measurement possible.
pH value is displayed with one decimal place.
The probe can be easily recalibrated by the user.
A globally established device, supported by a large number of studies.

Fields of application:

Changes in the skin’s pH value play an important role in many areas. Hair washingl

In pharmaceutical and cosmetic development and in the formulation of household products (skin care, hair care, cleaners and detergents, pharmaceuticals, etc.)
In basic dermatological research.
pH measurement plays a role in occupational medicine to demonstrate the need to use skin protection products.
back

The Skin-pH-Meter 905 is available as a standalone device, as part of the combined device Derma Unit SSC 3, for connection to the MPA systems, or as a wireless probe.

Technical data

Probe only:

Dimensions: 22.8 cm, cable length: approx. 1.3 m, measuring surface: Ø 1 cm, flat contact, weight: 130 g

Measuring range: pH 0 to pH 11, accuracy: ± pH 0.1

Dimensions of the wireless radio probe: see technical data of the base systems

Subject to technical changes.

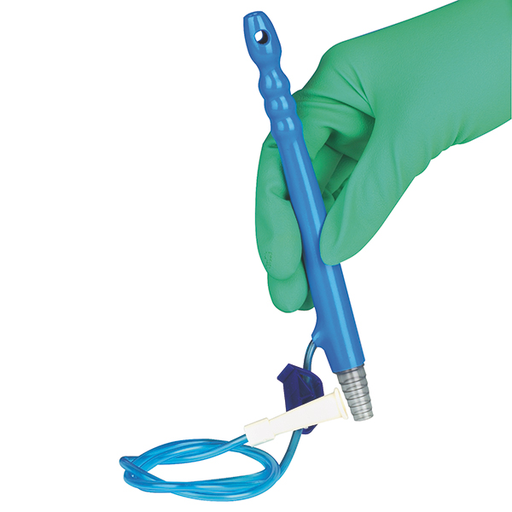

Suitable for intestinal tubes and air hoses, incl. adapter with a thin tip.

Made from particularly flexible plastic, with internal air supply and a clamp on the air hose.

with extension

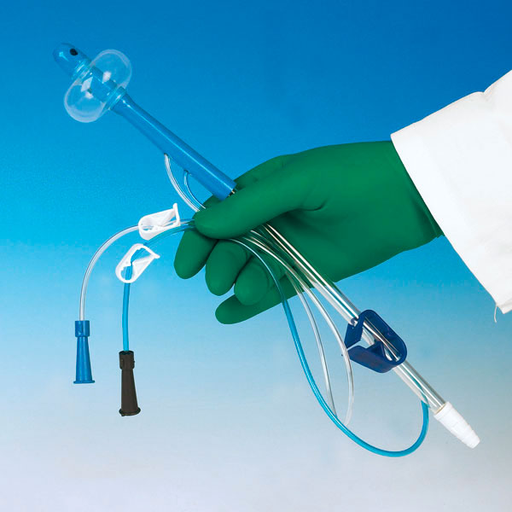

With a close-fitting silicone balloon and internal air supply, incl. hose extension for double-contrast enema, with clamp, flexible. Incl. clamp valve on the air supply. Now with large adapter for blower!

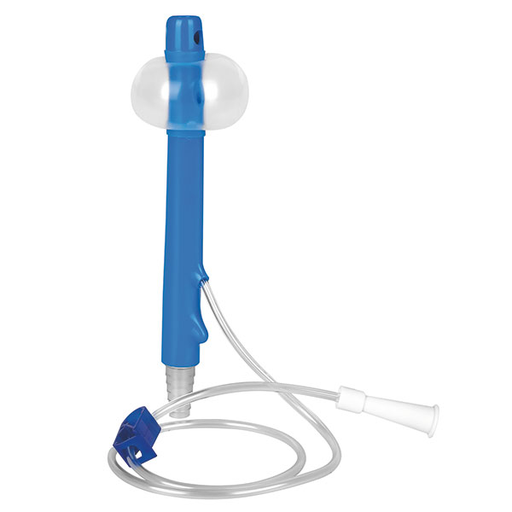

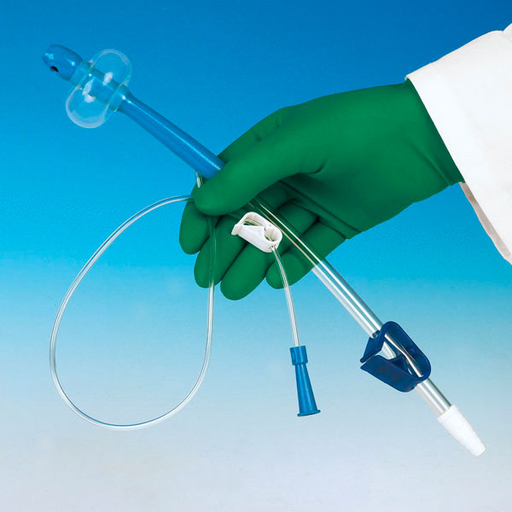

Flexible rectal tube with silicone slimline balloon and internal air supply
With 22 cm tube extension and practical one-hand clamp, with close-fitting silicone balloon to ensure easy insertion.

Clamp also on the air supply to achieve a secure seal of the balloon.

Now with large adapter for blower!

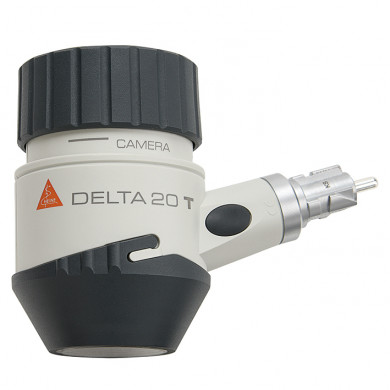

For incident-light microscopy examinations for the early detection of malignant melanoma. Also suitable for examining non-melanocytic lesions, basal cell carcinomas and dermatofibromas. - The high-quality achromatic optical system provides razor-sharp, high-resolution images; the focusing system achieves 10x to 16x magnification for a detailed view of even the smallest structures - Eyepiece: individual focus adjustment, dioptre compensation range of approx. -6 to +6 dpt - The standard in LED illumination provides absolutely homogeneous, bright light with true colour rendition for precise diagnosis. Red is red, blue is blue. Colour temperature 5000 K, colour rendering index (CRI) >80 with a maximum scale value of 100 - 4 high-performance LEDs ensure absolutely even and bright illumination with consistent quality for up to 50,000 hours - Convenient switching between polarised and non-polarised views at the touch of a button; no need to change the contact plate. The additional diagnostic function enables detection of the so-called “Blink Sign” when viewing crystalline structures and milia - Small contact plate for hard-to-reach lesions available optionally - Options for digital documentation: can be easily connected to SLR cameras from the leading manufacturers using the HEINE digital camera lens system; the specially developed lenses of the photo adapter (optional) combine the camera and the DELTA 20 T into an unbeatable combination

Suitable for HEINE Beta handles or, with OPTICLAR adapter, for OPTICLAR handles

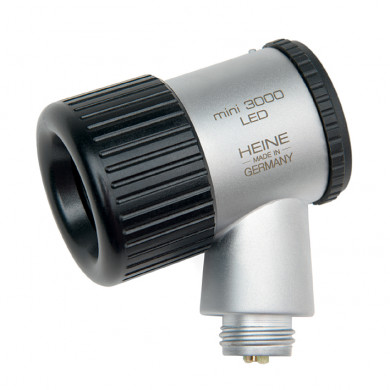

- 10x magnification with focusable optics - improved XHL Xenon Halogen lamp technology for more light - metal screw fitting - can only be combined with the mini 3000 handle system - comprehensive compendium with illustrated atlas included

Fits HEINE mini3000 handles and OPTICLAR handles for pocket instruments
