Resuscitation and Monitoring

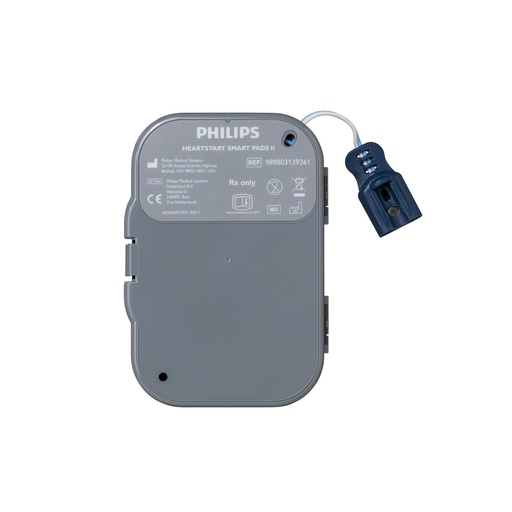

PHILIPS HEARTSTART FRX ELECTRODES SMART PADS II
The Philips Heartstart FRx electrodes are stored in a plastic package. These electrodes can be stored pre-connected. Correct placement is shown both on the packaging and on the electrodes themselves.

TECHNICAL DETAILS OF THE ELECTRODES
- Pre-connected
- Self-adhesive
- Latex-free
- Shelf life approx. 2 years
- Pacemaker detection
- Storage temperature between 0°C and 50°C
- Electrode cable length: 121.9 cm

THE PHILIPS HEARTSTART FRX SMART PADS ARE ALSO COMPATIBLE WITH:
- Philips Heartstart FR
- Philips Heartstart FR2
- Philips Heartstart FR3
- Philips Hearstart XL
- Philips Hearstart MRx

SHELF LIFE OF THE FRX ELECTRODES
Due to the conductive gel layer, electrodes have an expiry date. After this date, the electrodes must no longer be used, as the gel layer can dry out and conductivity is reduced as a result. The Heartstart FRx electrodes have a shelf life of approx. 2 years. The expiry date is stated on the electrode packaging.

USE IN CHILDREN:
For children younger than 8 years and weighing less than 25 kg, special paediatric electrodes are normally used. For the Heartstart FRx, a paediatric key has been developed; this is inserted into the defibrillator during paediatric resuscitation to activate paediatric mode, allowing the normal Smart Pads II electrodes to also be used for children. The shock level is reduced automatically.

Battery for the Physio Control Lifepak 1000 defibrillator. The battery has an approximate service life of 5 years. Please note that the capacity may be significantly lower in older devices, due to the defibrillator’s internal battery gradually depleting (from around 8–10 years).

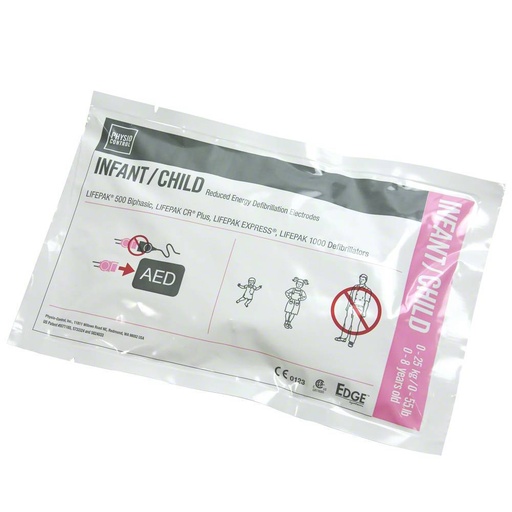

The Physio-Control Lifepak paediatric electrode set is used for defibrillating children aged 1–8 years or with a body weight under 25 kg. As soon as the paediatric electrodes are connected to the defibrillator, the shock level is automatically reduced. The exact positioning of the electrodes is shown both on the packaging and on the electrodes themselves.

Due to the conductive gel layer, electrodes have an expiry date. After this date, the electrodes must no longer be used, as the gel layer can dry out and conductivity will decrease. Please ensure that the defibrillator is always supplied with a pair of electrodes that are within date. Physio-Control Lifepak paediatric electrodes have a shelf life of approx. 1.5–2 years. The exact expiry date can be found on the front of the packaging.

Technical details:

Self-adhesive
Latex-free
Approx. 1.5–2 years shelf life
Storage temperature between 15°C and 35°C (max. 7 days at -30/65°C)

Suitable for:

Physio-Control Lifepak 500 (biphasic)
Physio-Control Lifepak 1000
Physio-Control Lifepak CR Plus
Physio-Control Lifepak Express

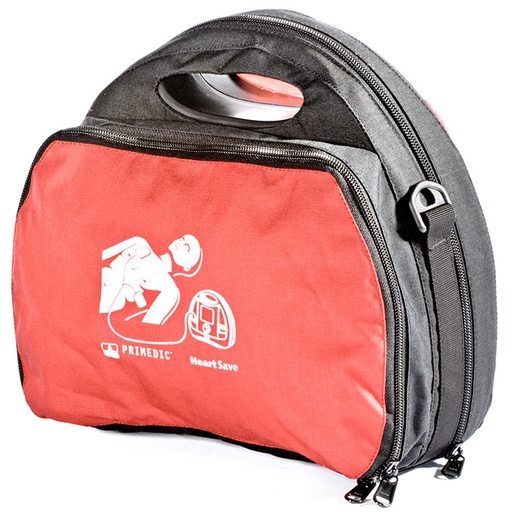

HeartSave carry bag with front storage compartment incl. carry strap and shoulder pad

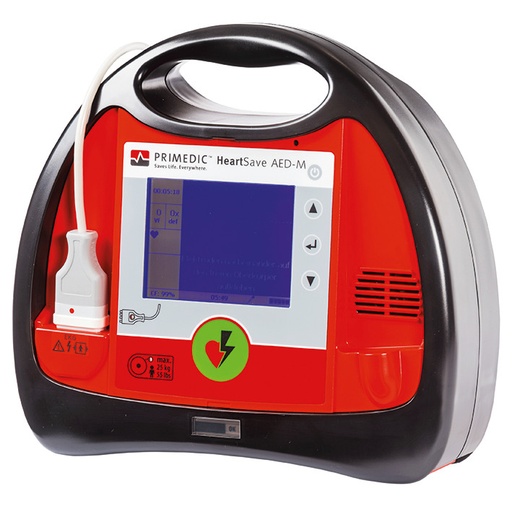

HeartSave AED-M

Automated external defibrillator with biphasic, current-controlled defibrillation pulse (CCD technology) and VF/VT detection. - intuitive and easy to use - high-resolution blue-mode LCD monitor (95 x 72 mm, 320 x 240 pixel resolution) - one-button operation - adult/paediatric mode - no energy selection required - short charging time < 12 sec, energy: 140 - 360 J, operating modes: asynchronous - ECG: lead II, patient impedance 20 - 200 ohms, heart rate 30 - 300/min - data management: internal memory 8 MB RAM, removable memory 2 - 4 GB or approx. 14 days with voice recording - robust design - dimensions (H x W x D): approx. 250 x 280 x 90 mm - weight: approx. 2 kg (without power supply) Scope of delivery: PRIMEDIC HeartSave AED-M with blue-mode LCD monitor, incl. 6-year battery (lithium), SavePads preconnect (adults), CompactFlash card 2 GB, Lister bandage scissors 14.5 cm, incl. ECG-Viewer read-out software, voice-guided user guidance in German, English, Spanish and French

! Training/Instruction required !
Please note that, upon purchase, the manufacturer will charge the usual fees for instruction/training!

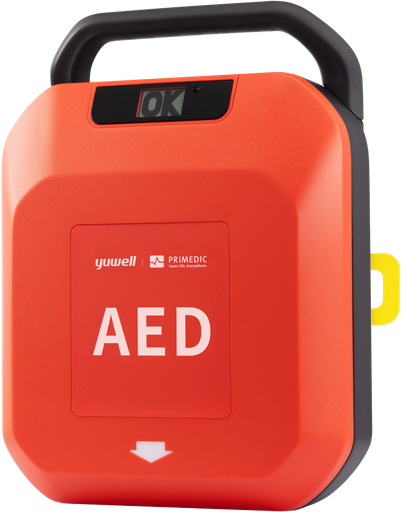

The HeartSave Y is the ideal AED for any first aider and lay user. Short, concise voice prompts guide you safely throughout the entire cardiopulmonary resuscitation (CPR) process, supported by a metronome. The device independently decides whether a life-saving shock is required. A shock is only enabled by the device when it is truly necessary. This ensures that, as the user, you can always be confident that no shock can be triggered accidentally.

In a paediatric emergency, you do not need special paediatric electrodes, as the HeartSave Y switches to paediatric mode at the press of a button.

Using the language selection button, the voice prompts can be switched during operation between up to four languages. In areas with users of various nationalities – industry, airports, public institutions – this increases the likelihood that the HeartSave Y can be clearly understood and used correctly.

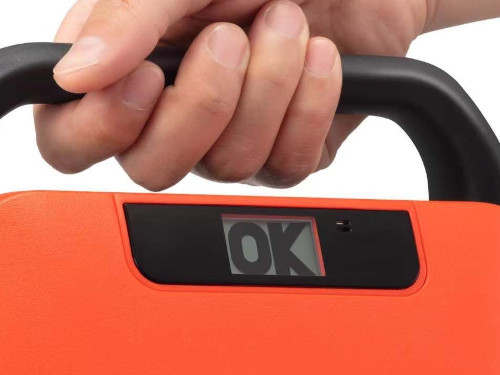

To ensure it is always available safely and reliably, the HeartSave Y performs an extensive self-test every day. This checks the technical condition of the AED, the remaining battery capacity and the expiry date of the electrodes. Readiness is indicated by a clearly visible and intuitively understandable “OK” on the device.

The HeartSave Y is a semi-automatic defibrillator. As soon as the AED detects a shockable heart rhythm in the patient, the shock is delivered by the first aider at the press of a button.

WITH GERMAN / ENGLISH VOICE PACKAGE

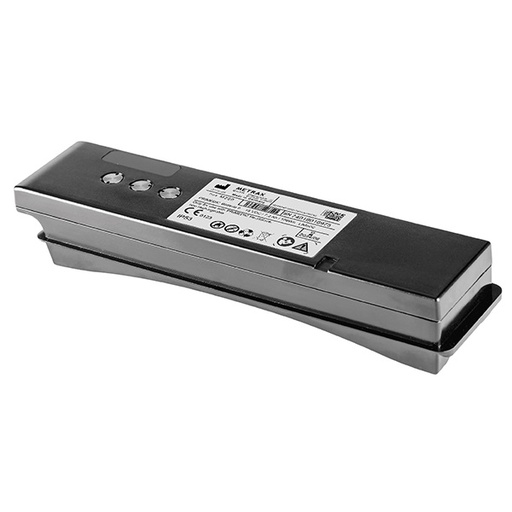

PRIMEDIC Heartsave Y/YA lithium battery

Accessories for HeartSave defibrillators

For use with: NB, AED, AED-M, AS, HeartSave 6, HeartSave 6S

Product data:
-Single-use
-6 years standby time
-108 Wh
-7.2 Ah
-15 VDC

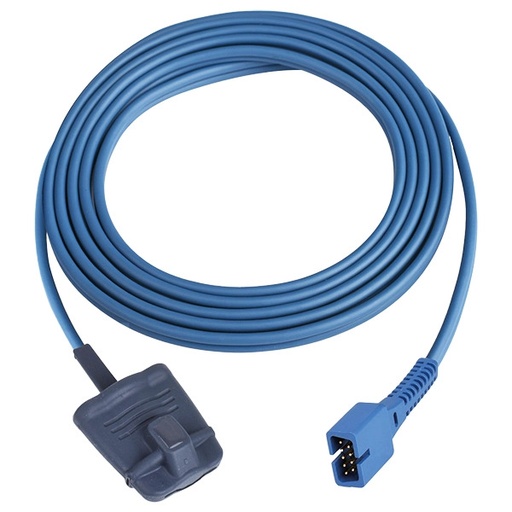

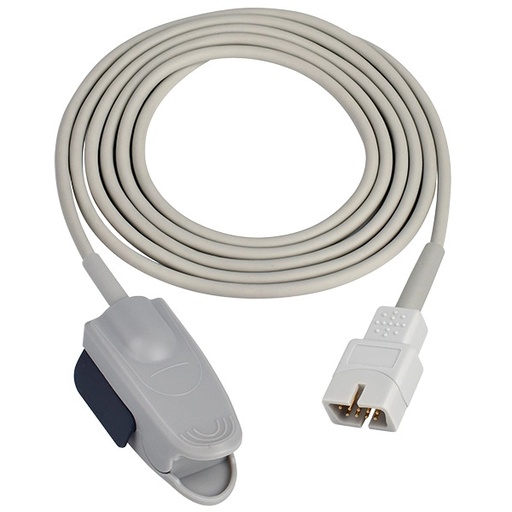

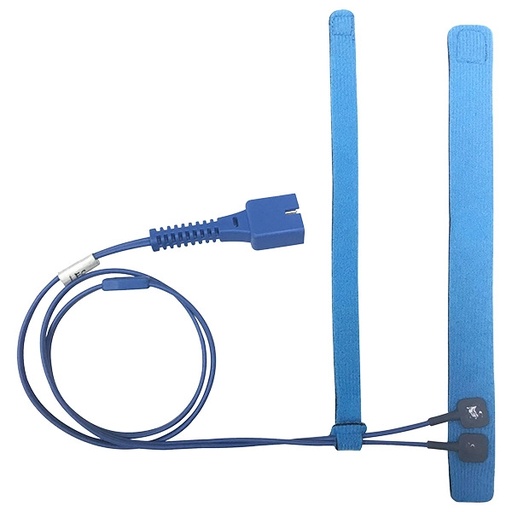

Accessory for RESQ-METER pulse oximeter SP-20 for children with approx. 150 cm connection cable

Reusability: The sensors and the ear thermometer are reusable multiple times, saving costs and being environmentally friendly.
Precision and comfort: High-quality sensors enable precise measurements at various application sites, such as finger or foot, with comfortable use.

Accessories for RESQ-METER pulse oximeter SP-20 for children or adults with approx. 150 cm connection cable

Reusability: The sensors and the ear thermometer are reusable multiple times, which saves costs and is environmentally friendly.
Precision and comfort: High-quality sensors enable precise measurements at various application sites, such as finger or foot, with comfortable use.

Defibrillation electrodes for adults and children from 8 years of age or 20 kg, with electrode recognition (RFID).
Typical electrode shelf life is 2 to 3 years.

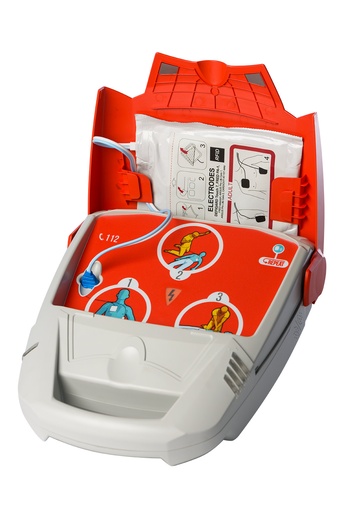

Suitable for the following devices: PA-1/APLC2/APLC1/easyport/AT-101
easy

Lithium battery for Fred PA-1. Typical battery life (standby time) is approx. 4 years.

Accessories for FRED easyport Plus Trainer (25150-01) and training electrodes (25151-01)

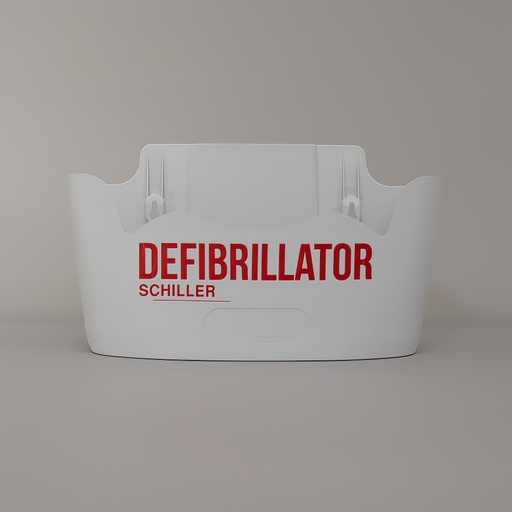

Wall mount for Schiller FRED PA-1

Universal electrodes for the ZOLL AED 3. Suitable for both adult resuscitation and paediatric resuscitation.

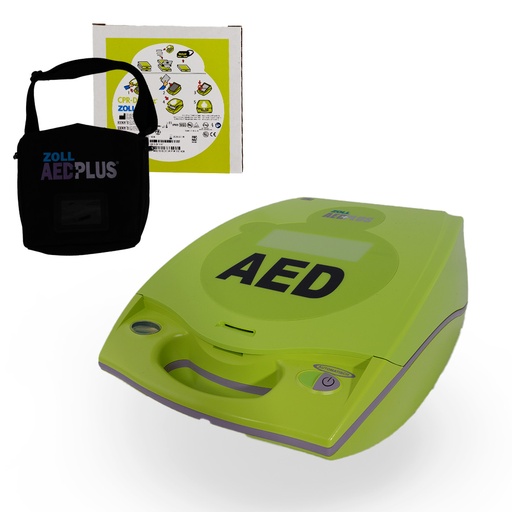

Zoll AED Plus can do more than just defibrillate!

The Zoll AED Plus is a fully automatic defibrillator that not only delivers a shock when required, but also guides you step by step through the CPR process. The electrodes have the added benefit of a built-in sensor that monitors your CPR technique and guides you verbally through the entire process; a metronome enables you to perform chest compressions at the correct rate, and clear voice prompts warn you if your compressions are not deep enough, while also providing positive feedback when you are using the correct CPR technique – something that is urgently needed in what is often a stressful situation.

In addition to voice prompts, the Zoll Plus AED features clear visual pictograms on the inside of the unit with LED lights that guide you through each phase of the resuscitation process. These features of the Zoll Plus AED make it an excellent choice for beginners or lay rescuers.

This AED is not only housed in a strong and robust outer casing, it is also highly resistant to contamination by water and dirt. Both the electrodes and the batteries have a generous service life of 5 years, which means you only need to monitor one expiry date and, with a 7-year manufacturer’s warranty (5 years automatically and an additional 2 years if you register your AED with Zoll), you only need to replace the batteries and electrodes once during its lifetime if the AED has not been used. All of this makes the Zoll Plus AED a low-maintenance defibrillator.

Unlike the semi-automatic model, the fully automatic model does not have a shock button. The defibrillator monitors the patient’s heart rhythm and delivers a shock when required.

Features:

Easy to use, suitable for beginners or lay rescuers
Loud, clear audio and visual prompts to guide the rescuer through both the defibrillation and CPR processes
Built-in metronome to guide the user in the correct chest compression technique
Sensor in the electrodes to monitor the delivery of chest compressions, enabling the AED to provide verbal feedback
High protection rating IP55 – provides resistance to dirt and water ingress
Daily self-test
Long shelf life of 5 years for both the electrode pads and the batteries
Defibrillator recommended by the British Heart Foundation since 2010

Contents:

10 Duracell lithium batteries with a 5-year shelf life
1 pair of CPR-D padz® CPR feedback electrodes (5-year shelf life)
User manual
5+2 year warranty
Carry case

Pedi-Padz electrode for children.
For ZOLL AED Plus and ZOLL AED Pro.

Zoll replacement gel pads for the Zoll CPR-D training pads

Fitting the new gel pads:

1. Place the CPR-D training pad with the gel side facing up.
2. Remove the old pads. Lift the gel at the green tab, peel it off the electrode and dispose of it.
3. Remove the backing from the new gel and apply it to both sides of the CPR-D training pads.
