Practice Organization

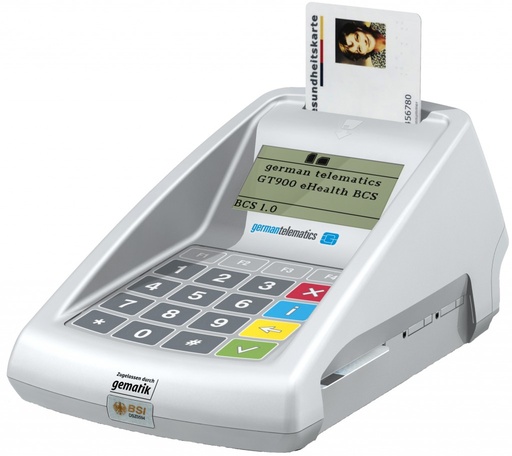

Only approved eHealth terminal manufacturer with disinfectable membrane keypad

- very large, fully graphical display with backlighting for optimal readability
- one-handed eGK/KVK slot
- ergonomic viewing angle to the display to prevent reflections from ceiling lighting in the display window
- one-handed HBA slot, plus two SMC card slots
- one of the most compact eHealth terminals on the market, available in three design variants (white, black or silver)
- Easy-Clean: no gaps or ledges for dust or crumbs on the device keypad
- elegant privacy shield and security for PIN entry
- USB, network and serial interface on-board
- disinfectable membrane keypad to prevent transmission of pathogens via skin contact
- meets all hygiene requirements of the Occupational Health and Safety Act

Technical data

CPU / processor
32-bit high performance RISC / 200 MIPS

Operating system
GT Linux 2.6 X

Memory
32 MB SDRAM 8 MB Flash

Interfaces
USB, LAN, serial; 1 x Full Speed Host, USB 2.0 compatible; 1 x Full Speed Client, USB 2.0 compatible; RJ45 10/100 Mbit/s autonegotiation, Auto MDI/MDIX; RS 232 (9-pin)

Chip cards
eGK, HBA, SMC, SM-KT, KVK, ISO 7816 Class A, B and C cards (5V, 3V, 1.8V)
Support for protocols S=8, S=9, S=10, T=1

Contact units
1 chip-card contact unit (ISO 7816 ID-1) with lowering, card-protecting contacts (eGK and KVK) >200,000 insertion cycles (ID-1 contact unit)
1 chip-card contact unit ISO 7816 ID-1 (HBA)
2 contact units (ISO 7816 ID-000) for SMC-A, SMC-B and SM-KT, automatic card detection with short-circuit and overheating protection

User interface
Large graphical display with backlighting for user guidance
- high-contrast graphics display (monochrome, white backlit)
- 128 x 64 pixel pictograms for status display and for the status message “secure state”
- 20-key input panel for secure PIN entry and navigation
- shielded PIN entry field
- easy-care materials meet high hygiene and clinical requirements
- only eHealth card terminal on the market with a membrane keypad
- easy to disinfect as there are no gaps
- meets all hygiene requirements

Certifications and approvals
Common Criteria EAL3+ certification and confirmation according to SigG by the Federal Office for Information Security, SICCT (in preparation), eHealth-BCS certification by gematik, CE, TÜV IT, MKT+, chip cards (EMV Level 1/ISO7816)

Security
BSI seal for quick visual inspection; drill-through protection in the housing; cryptographically secure firmware update possible for level SICCT (eHealth)

Dimensions and weight
190 x 110 x 90 mm, 670 g without power supply

Colour
White, black or silver

Power supply
Plug-in power supply: input: 100–240 VAC / 50–60 Hz / 5 VDC / 1 A

Card reader
2 chip-card readers for eGK, KVK and HBA; 2 SMC slots

Signature
Prepared for comfort and batch signature

Environmental conditions
Operation: 0° to +50°C; storage: -20° to +60°C; relative humidity: 5% to 95% (non-condensing)

Operating systems
Windows® 98SE, ME, NT, 2000, Server 2003, XP, Vista, MacOSX (in preparation), Linux, Solaris (in preparation)

Compatibility
KVK terminal; MKT/MKT+ terminal; eHealth-BCS terminal; SICCT terminal on the connector (after firmware update)

Country of manufacture
Federal Republic of Germany

Environmental guidelines
RoHS, WEEE

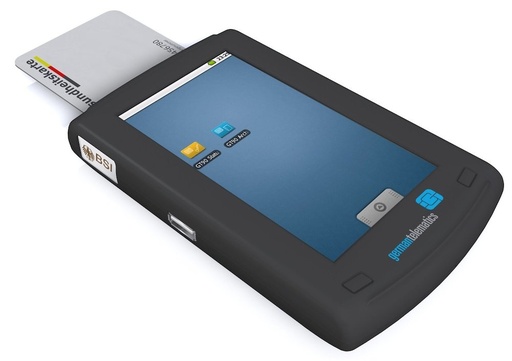

Only mobile chip card terminal with a disinfectable touchscreen

easy to use / disinfectable / multifunctional

- simultaneous reading of eGK / KVK and HBA possible
- inserted cards are read automatically
- user-friendly 4.3” touch display
- specification-compliant display of all a patient’s emergency data possible
- long standby times (up to 300 h)
- replaceable battery
- mobile signature planned for expansion stage 2
- mobile PVS possible
- weight: light at 179 g
- easy synchronisation with your computer
- up to 32 GB data storage with additional Micro SD card
- many useful PVS apps available on request
- connected to all common practice management systems
- intended for the basic rollout with gematik and BSI certification

Technical data of the GT90 mobile card terminal

Dimensions / weight
8 cm x 13 cm x 1.6 cm / approx. 179 g (incl. battery)

CPU / processor
ARM / 32-bit high performance RISC / 293 MIPS @ 266 MHz

Operating system
Android 2.1 / Linux 2.6.x

Memory
RAM: 64 MB SDRAM
FLASH: 256 MB Flash
External FLASH memory: 1 x MicroSD HC up to 32 GB (microSD card reader - hinge type)

USB interfaces
1 x Full Speed Host / USB 2.0 compatible / Type A
1 x Full Speed Client / USB 2.0 compatible / Type MicroB

Smart cards
Supported types:
KVK, eGK, HBA, SMC, SM-KT,
ISO 7816 Class A, B and C cards (5 V, 3 V, 1.8 V)
- support for protocols S=8, S=9, S=10, T=0,
T=1
Contact units:
1 x smart card contact unit in accordance with ISO 7816 ID-1 for eGK or KVK
1 x smart card contact unit in accordance with ISO 7816 ID-1 for HBA
1 x contact unit in accordance with ISO 7816 ID-000 for SMC-A or SMC-B
> 100,000 insertion cycles for ID-1 contact units, especially eGK/KVK
- automatic card detection with short-circuit and
overheat protection

Touch-enabled display
4.3” TFT display (resistive touchscreen)
- resolution: 480xRGBx272
- energy-saving LED backlight
- finger operation possible
- stylus available as optional accessory

Housing
compressed, 2-part, inseparable ABS
plastic housing
- disinfectable
- colours: white or black
- battery compartment cover with clip mechanism
- versions with high-quality high-gloss finish possible

Switches
1 x ON/OFF switch with sleep function
2 x control buttons

Optical & acoustic signalling interfaces
1 x multi-colour LED (e.g. red/green) to indicate operating and charging status
1 x built-in speaker + microphone

Power supply
replaceable lithium polymer battery
- charging in the device via Mini USB port

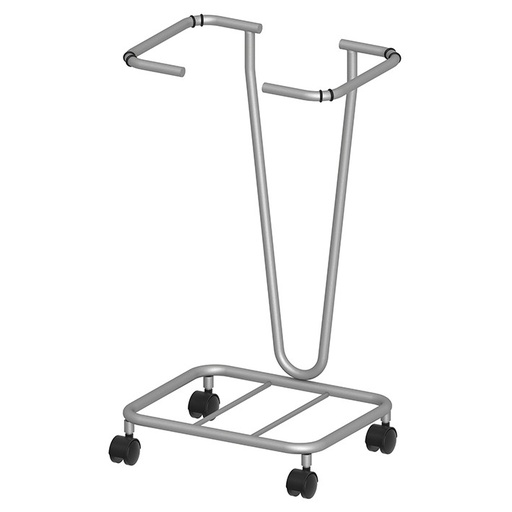

- for self-emptying fabric sacks with a capacity of 120 litres or for plastic sacks with a capacity of 120 litres
- anti-slip protection thanks to slip-stop made from natural rubber
- steel frame with spring-loaded handle, impact-resistant powder-coated, aluminium colour (RAL 9006)
- height 820 mm fits ideally under worktops
- with 1 bag holder
- dimensions: 450 x 360 x 820 mm (W x D x H)

- for self-emptying fabric bags with a 60–70 litre capacity or for plastic bags with a 60–70 litre capacity
- anti-slip protection with non-slip stop made of natural rubber
- steel frame with spring-loaded bar, impact-resistant powder coating, aluminium colour (RAL 9006)
- the 820 mm height fits ideally under worktops
- with 3 bag holders
- dimensions: 1120 x 360 x 820 mm (W x D x H)

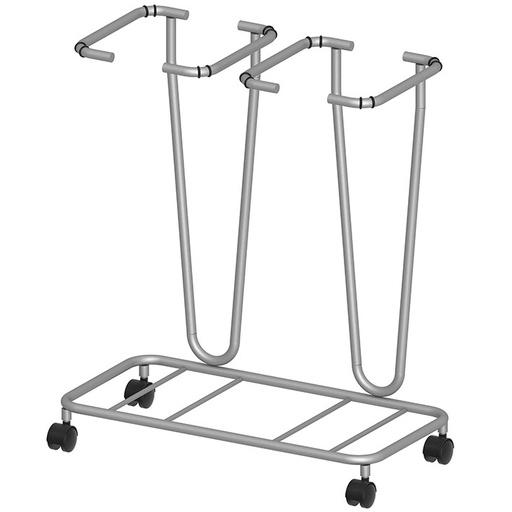

- for self-emptying fabric sacks with a capacity of 60–70 litres or for plastic bags with a capacity of 60–70 litres
- anti-slip protection with non-slip stop made of natural rubber
- surgical-grade, stainless version made of chromium-nickel steel
- the 820 mm height fits ideally under worktops
- with 2 bag holders
- dimensions: 740 x 360 x 820 mm (W x D x H)

- for self-emptying fabric bags with a capacity of 60–70 litres or for plastic bags with a capacity of 60–70 litres
- anti-slip protection thanks to non-slip natural rubber
- surgical-grade version made of stainless steel (chrome-nickel steel)
- the height of 820 mm fits ideally under worktops
- with 1 bag holder
- dimensions: 360 x 360 x 820 mm (W x D x H)

Following last year’s great success, we are pleased to present the new mediparts24.de Product Catalogue 2019, providing a complete overview of our available range.

Would you like a free copy of our catalogue? We will be happy to include a copy with your order or send one on request.

The KVK address field labels from MED + ORG are suitable for all record cards / record pockets / record folders. The master data field according to KVK. 2 labels per backing sheet for printing individually. The address field labels are also suitable for dot matrix printers.

Product data:

Label size 80 mm x 48 mm
Backing sheet size 98 mm x 105 mm

A5: 180 g computer card, white
A4: 280 g computer card, white

Durable, recyclable transparent film with 2 welded-on pockets for a better grip. Ideal all-round protection for patient records.

160 g PlanoScript, satin finish, wood-free, white, 1 x creased, perforated at the top, supplied flat-packed. Size 304 mm x 208 mm, address field according to KVK, 7 mm ruling. For use only in conjunction with record sleeve 20.001 and lightning file fastener 20.010.

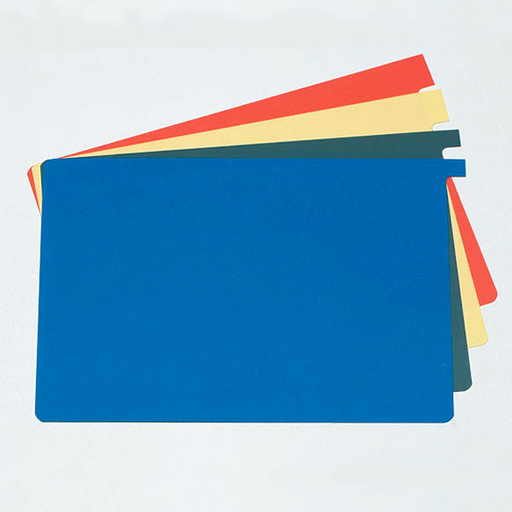

For temporary markings such as: sick note missing, pregnancy, etc. With protruding side tab of varying height.

Folded to DIN A5, suitable for all practices.

Only compatible with: Card index sleeve 20001 and quick binder 20010 or binder 60010!

ALPHAsafe lightning-fast plastic lever arch file in white.

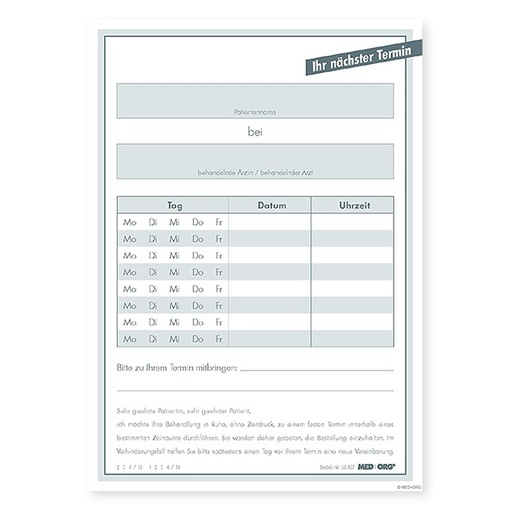

MED+ORG appointment slips A6 portrait
DIN A6 portrait, 80 g white offset paper, printed in grey on one side

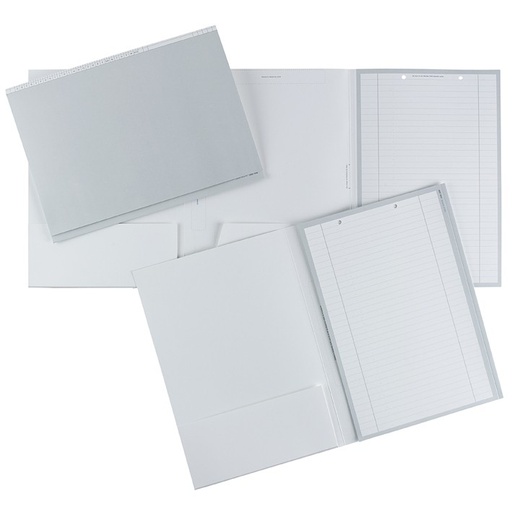

DIN A4 landscape record folders for all specialties (100 pcs.)
280 g computer card, white, triple-scored, flat-packed, with 8 slots for index tabs (Art. No. 60.015.x), adhesive areas for filing strips (Art. No. 60.010), 8 cm hole spacing for fastener folders (Art. No. 20.010), glued-in insert pocket

Product data:

Dimensions: 309 mm x 230 mm

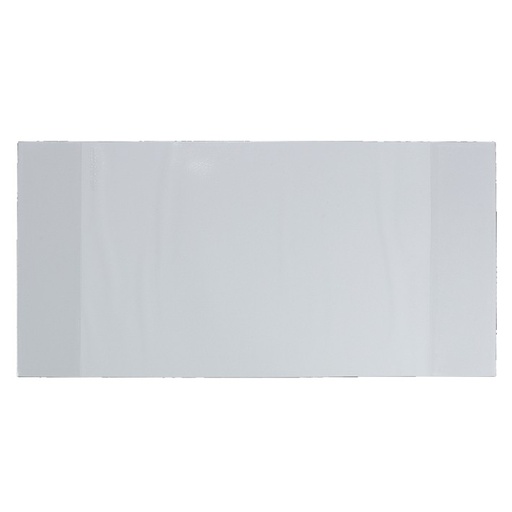

for protection for MED+ORG index card pockets ALPHAnorm DIN A5 landscape, colourless transparent film, with 2 welded-on pockets, size when unfolded 450 mm x 213 mm
