Ventilation and Intubation

Made of PVC, with colour-coded syringe and bite block.
For single use only, individually sterile packed.

Product data:

Size: 0 - 5

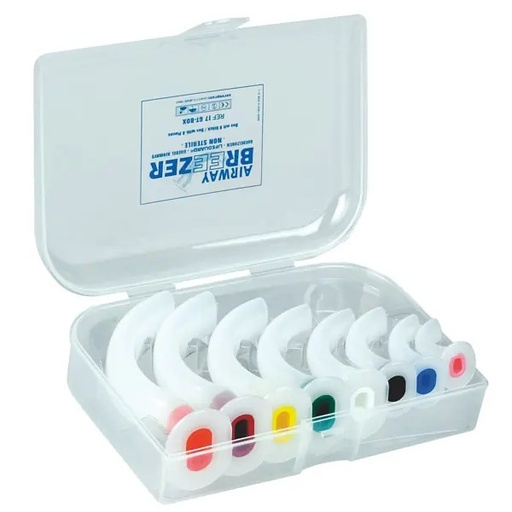

Consisting of 1 Guedel airway each

Sizes: 000, 00, 0, 1, 2, 3, 4, 5. sterile, colour-coded

ATTENTION: without the box shown in the photo.

Storage box
King Vison aBlade hard-shell case incl. padding.

The King Vision video laryngoscope, used in combination with the aBlade single-use blades, enables economical use of the video laryngoscope for all intubations. It serves as an aid for visualising the airway for routine or difficult intubation. The King Vision video laryngoscope was developed for indirect visualisation of the vocal cords, thereby reducing the required tissue manipulation and improving the ability to visualise anterior airways. The King Vision display is a lightweight, battery-powered, water-resistant and self-contained system. The robust, non-reflective full-colour display withstands repeated cleaning without difficulty. It can be used continuously for more than 90 minutes.

The set consists of: 1 King Vision display, 1 video adapter, 4 aBlade single-use blades with guide channel, 2 aBlade standard single-use blades, 3 AAA batteries and a case.

Technical specifications (reusable display):
- Video screen: OLED display
- Video connection: RCA
- Connection to monitor via cable
- Automatic shut-off
- Automatic white balance
- Video screen size: 6.1 cm / 2.4” diagonal
- Material: polycarbonate / ABS, anti-glare coating on the display window
- Batteries: 3 AAA (alkaline recommended)

Technical specifications (reusable video adapter):
- Video aspect ratio: 4:3
- Frame rate: 30 frames per second
- Video resolution: 320 x 240 (QVGA)
- Camera sensor: CMOS
- Camera resolution: 640 x 480 VGA
- Light source: white LED

Technical specifications (single-use blades):
- Anti-fog protection: coating on the distal lens
- AP blade height: 13 mm (standard), 18 mm (with guide channel)
- Blade length: 17 cm
- Blade width: 26 mm (standard), 29 mm (with guide channel), 16 mm at the distal tip
- Single-use material: polycarbonate / TPE
- ET size: 6.0 mm - 8.0 mm (blade with guide channel)

AMBU Mark IV with single-membrane patient valve without mask
The AMBU Mark IV is suitable for manual ventilation of adults and children weighing 15 kg or more (approx. 3 years). In combination with Mask 0 with bore, the Ambu Mark IV is also approved for children from 15 kg body weight. The double-chamber principle (inner body with elastic outer shell) allows the user to feel the ventilation pressure, making ventilation safer. Thanks to this integrated pressure limitation, the user can easily and safely recognise whether the airways are clear. The integrated hand strap makes the bag easier to grip and ensures it sits optimally in the hand – even with smaller hands.
Technical data
- Max. tidal volume: 1300 ml
- Dimensions (L x D): 275 x 135 mm
- Patient valve: 22/15 mm (ISO)
- Weight: 415 g
- Expiratory connector: 30 mm (ISO)
- latex-free, autoclavable up to 134°C

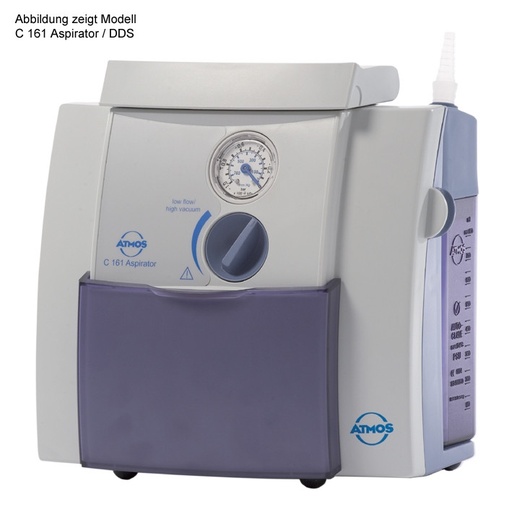

ATMOS C 161 electric suction unit aspirator /DDS
Portable secretion suction unit, suction capacity: 16 ± 2 L/min, vacuum: -80 kPa ± 2 kPa / -800 mbar ± 20 mbar / -600 mmHg ± 15 mmHg, infinitely variable vacuum regulation and precision gauge, graduated 1 L secretion canister, canister lid with triple overflow protection thanks to modern filter technology, integrated overflow protection and DDS (Direct Docking System), 1 DDS bacterial filter, condensate trap, silicone suction hose Ø 6 mm, L = 1.30 m, hose connector (fingertip), all hoses and secretion canister parts sterilizable up to 134°C, 2 m mains cable for 230 V~/50–60 Hz, dimensions (H x W x D): 250 x 255 x 180 mm. Use: on wards and in the care/rehabilitation sector.

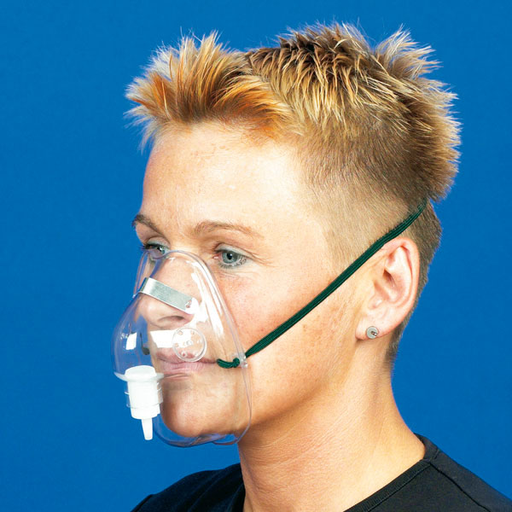

The O² mask from DCT features a nose clip. It is supplied with a 2.10 m O² connecting tube. Available from us for both children and adults. The masks are individually sterile packed.

The O² mask from DCT features a nose clip. It is supplied with a 2 m O² connecting tube. Available from us for both children and adults. The masks are individually sterile-packed.

• With smooth inner wall
• Kink protection
• Extension adapter
• 2 x universal cone

Individually sterile packed.

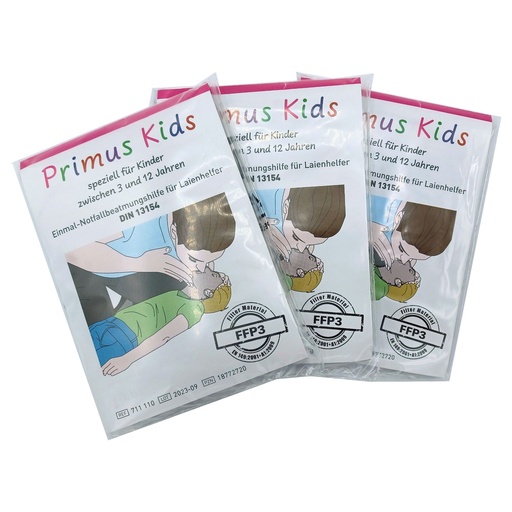

For ventilating children aged between 3 and 12 years.

Complies with DIN 13154.

The permeability of the filtering part meets the FFP3 requirements in accordance with EN 149:2001+A1:2009 in both directions at a constant flow rate of 20 l/min.

Sealed in foil.

Disposable suction canister bag

Users of suction pumps repeatedly complain about the time-consuming cleaning and autoclaving of used suction canisters. Now there is a new ideal solution: a flexible, robust disposable bag connected to a rigid lid with ports and open/close shut-off valves. The suction bag is fully equipped with a bacterial filter and an overflow valve, so the entire bag can be disposed of once filled. A new bag is then simply connected.

With a tandem connector on the lid, several bags can be connected in series to increase the total suction volume. This offers significant cost-saving potential and eliminates the risk of contamination.

This new system fits the suction pumps listed in the price table and is ideal for existing central suction systems.

Technical data:
Pump connection: Ø 9.0 to 10.0 mm, incl. open/close switch
Patient connection: Ø 14.0 to 15.5 mm
Bypass connection: Ø 8.0 to 9.2 mm
Max. vacuum: -750 mbar / -570 mm Hg
Graduation/accuracy: 50 ml increments / ± 50 ml
Hose diameter: at least 6.0 x 9.0 mm
Recommended: 8.0 x 11.0 mm

Delivery restriction:
This product can only be shipped within Germany; incoming orders with shipping abroad will be cancelled.
In some cases, shipping abroad may be possible; however, this must be arranged on the basis of an individual quotation –
please contact us
for this.

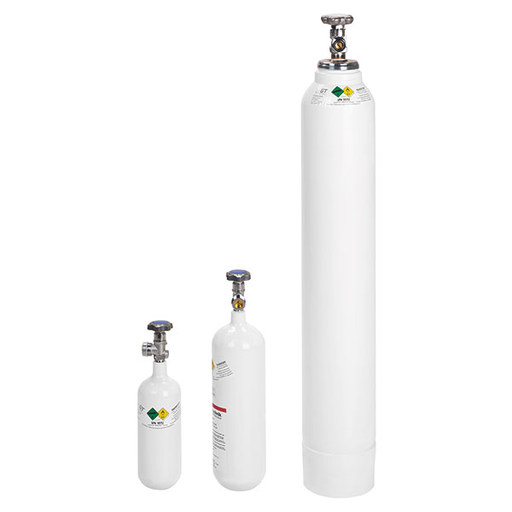

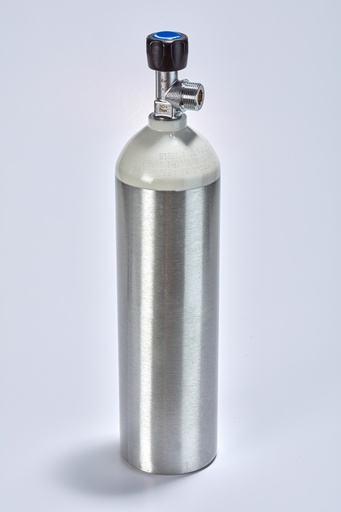

Filling customers’ cylinders can be carried out via the ring exchange system on a 1:1 basis (empty for full).

Accessories for Hospi Plus MPR - Ring for 2/3 L Flovac containers - Accessories

This is an accessory for the Hospi Plus MPR

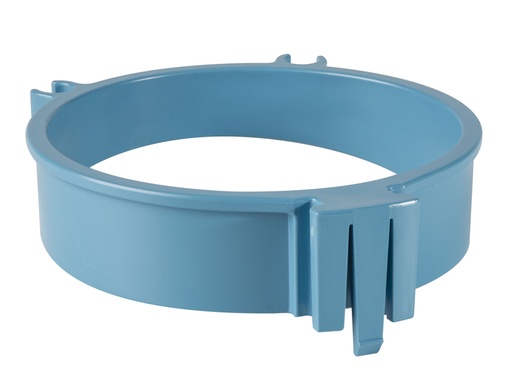

Accessories for Hospi Plus MPR - Ring for 2L autoclavable containers - Optional

This is an accessory for the Hospi Plus MPR.

HOSPI PLUS suction unit - 2 x 3 l - 230 V - with foot switch and flow changeover

New innovative range of high-vacuum suction devices with high flow rate, ideal for hospitals.
The pump pistons are lubrication-free and maintenance-free. Supplied with a hydrophobic 99% bacteria filter, vacuum gauge for monitoring the vacuum, and 2 autoclavable Makrolon canisters with ml graduations and double safety valve.

MPR (Multi Purpose Rail) models:
This system increases versatility for easy and quick replacement of various accessories, without the need for tools.
Equipped with five connections for rings of different diameters to accommodate canisters of different sizes and types (2 l, 3 l, 5 l), cannula holders and a safety trap bottle.

The range includes versions with foot switch, flow regulator and connection via 110/230 V.

Four antistatic castors, two of which are braked, ensure perfect mobility.

Product data:

• Operating voltage: 220–230 V / 50–60 Hz or 110 V / 60 Hz
• Maximum suction: 0.90 bar (675 mmHg)
• Flow: 90 l/min
• Power: 385 VA
• Standards: EN 60601-1-1, EN 60601-1-2, EN 60601-1-1, EN 60601-1-2
• Made in Italy
• Instructions for use in GB, FR, IT, ES, DE.

HOSPI PLUS suction unit - 2 x 5 l - 230 V - with foot switch and flow changeover

New innovative series of high-vacuum suction devices with high flow, ideal for hospitals.
The pump pistons are lubrication-free and maintenance-free. Supplied with a hydrophobic 99% bacterial filter, vacuum gauge for monitoring the vacuum, and 2 autoclavable Makrolon containers with ml graduation and double safety valve.

MPR (Multi Purpose Rail) models:
This system increases versatility for easy and quick replacement of various accessories without the need for tools.
Equipped with five connections for rings of different diameters to hold jars of different sizes and types (2 l, 3 l, 5 l), cannula holders and a safety trap bottle.

The range includes versions with foot switch, flow regulator and connection via 110/230 V.

Four antistatic castors, two of them with brakes, enable perfect mobility.

Product data:

• Operating voltage: 220-230 V / 50-60 Hz or 110 V / 60 Hz
• Maximum suction performance: 0.90 bar (675 mmHg)
• Flow: 90 l/min
• Power: 385 VA
• Standards: EN 60601-1-1, EN 60601-1-2, EN 60601-1-1, EN 60601-1-2
• Made in Italy
• User manual in GB, FR, IT, ES, DE.
